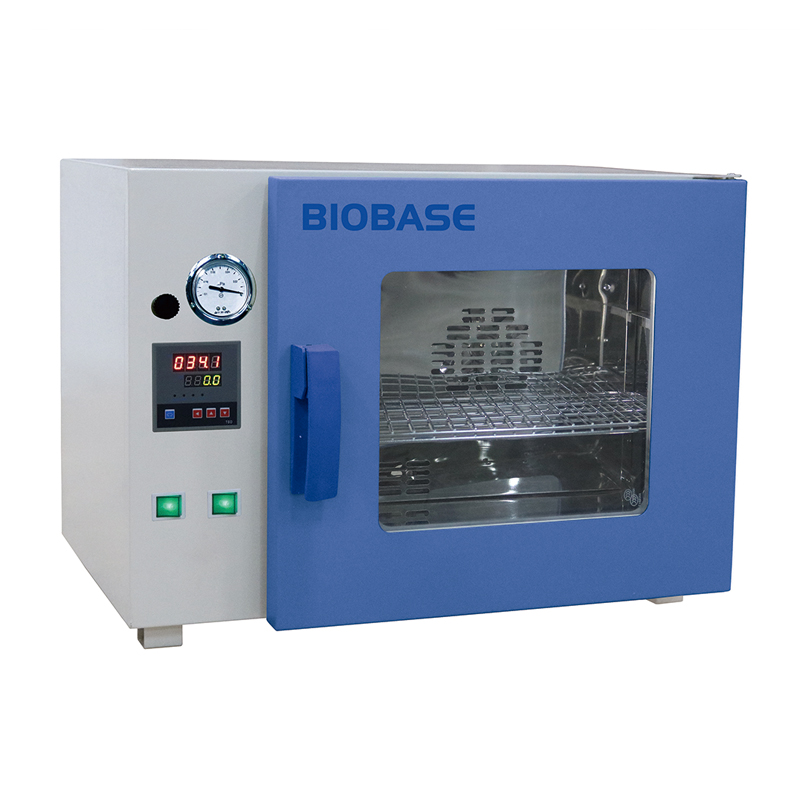

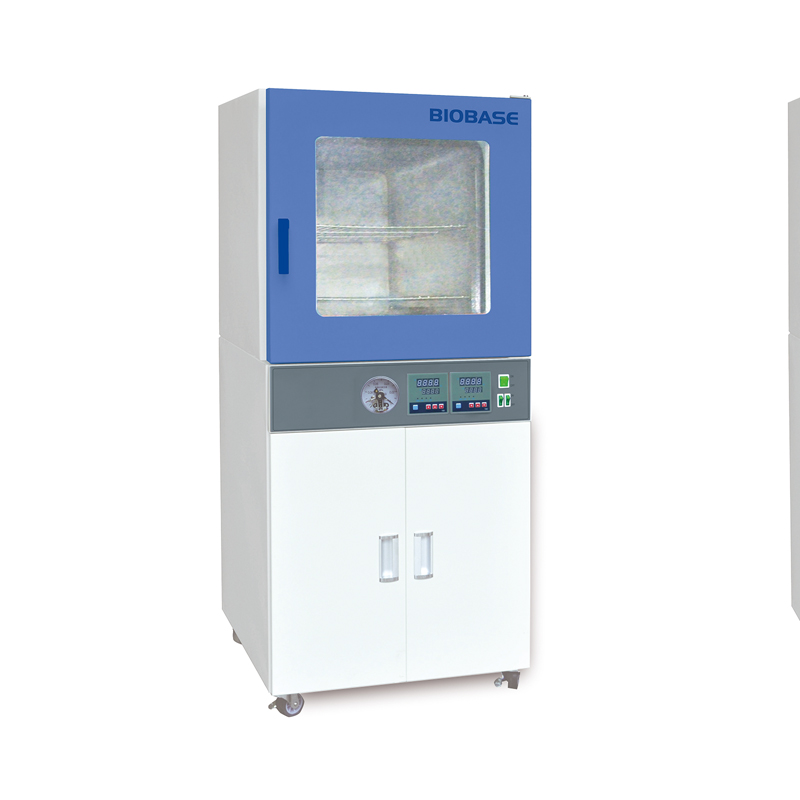

Laboratory equipment laboratory vaccum drying oven
Widely used with biochemistry, chemical pharmaceutical, medical and health, agricultural scientific research, the research and application fields such as environmental protection, for drying, baking powder, and the use of disinfection and sterilization of all kinds of glass containers.Particularly suitable for the dry heat sensitive, easy to decompose, easy oxidation material and complex component objects in dry processing of fast and efficient.
Features:
* PID microprocessor temperature control with LED display.
* Polished stainless steelinnerchamber.
* Vacuum degree is automatically controlled (for BOV-90V/BOV-215V/ BOV-90VL/ BOV-215VL)
* Siliconrubber sealring ensuresthehighvacuumdegreein the chamber.
* Tempered double-layerglass door ensures the operation safety.
* The vacuum is controlled by microprocessor controller with digital display.(for BOV-90VL/BOV-215VL)
* The working program can be cycled for 99 times.(for BOV-90VL/BOV-215VL)
* The vacuum pump is standard accessory(for BOV-90V/BOV-215V/ BOV-90VL/BOV-215VL)
* Inert gas can be filled in the chamber. (Inert gas pressure is not higher than 0.1Mpa when filling in).
(for BOV-90VL/BOV-215VL)
Model | BOV-30V | BOV-50V | BOV-90V | BOV-215V | BOV-90VL | BOV-215VL | |
Capacity | 25L | 50L | 90L | 215L | 90 L | 215 L | |
Temp.Range | 50~200°C | 50~250°C | 50~200°C | ||||
Temp. Fluctuation | ±1°C | ||||||
Vacuum Degree | <133 Pa | ||||||
Vacuum Control | / | Automatically; Include one vacuum meter | Automatically; Microprocessor controller with digital display | ||||
Shelves No. |
1 pc
| 2pcs | 2 pcs | 3 pcs | 2 pcs | 3 pcs | |
Power Consumption | 500W | 1400W | 1600W | 2200W | 1600W | 2200W | |
Power Supply | AC110V/220V±10%,50/60Hz | AC220V±10%, 50/60Hz | AC110V/220V±10%, 50/60Hz | AC220V±10%, 50/60Hz | |||
Internal Size(W*D*H)mm | 300*300*280 | 420*350*370 | 450*450*450 | 560*600*640 | 450*450*450 | 560*600*640 | |
External Size (W*D*H)mm | 580*570*450 | 710*590*530 | 660*610*1400 | 760*720*1670 | 660*610*1400 | 760*720*1670 | |
Packing Size (W*D*H)mm | 740*620*640 | 860*700*720 | 760*780*1600 | 900*850*1930 | 760*780*1600 | 900*850*1930 | |
Gross Weight ( kg ) | 50 | 106 | 155 | 195 | 155 | 195 | |
