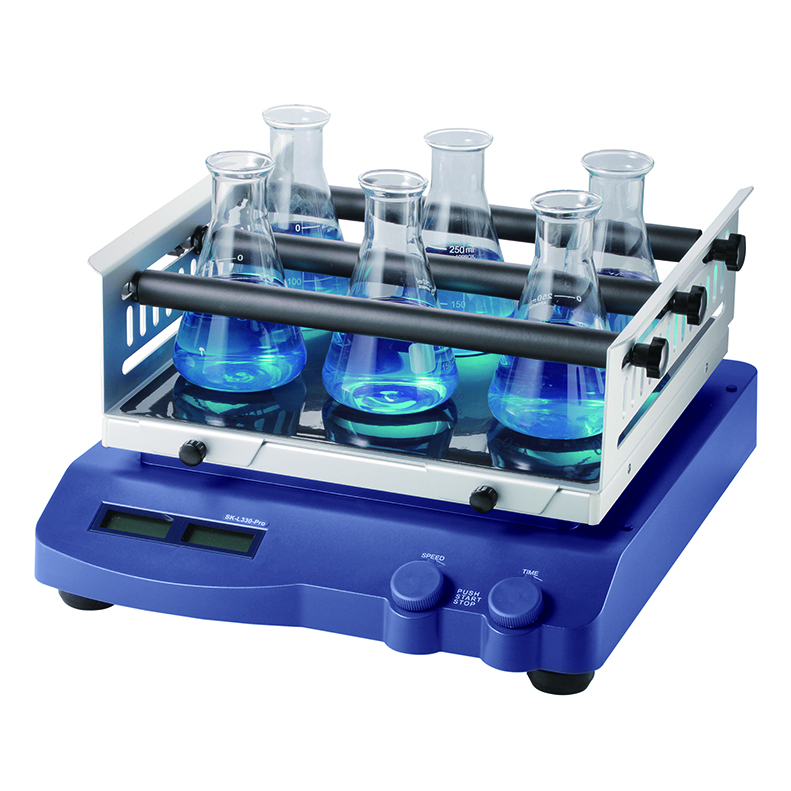

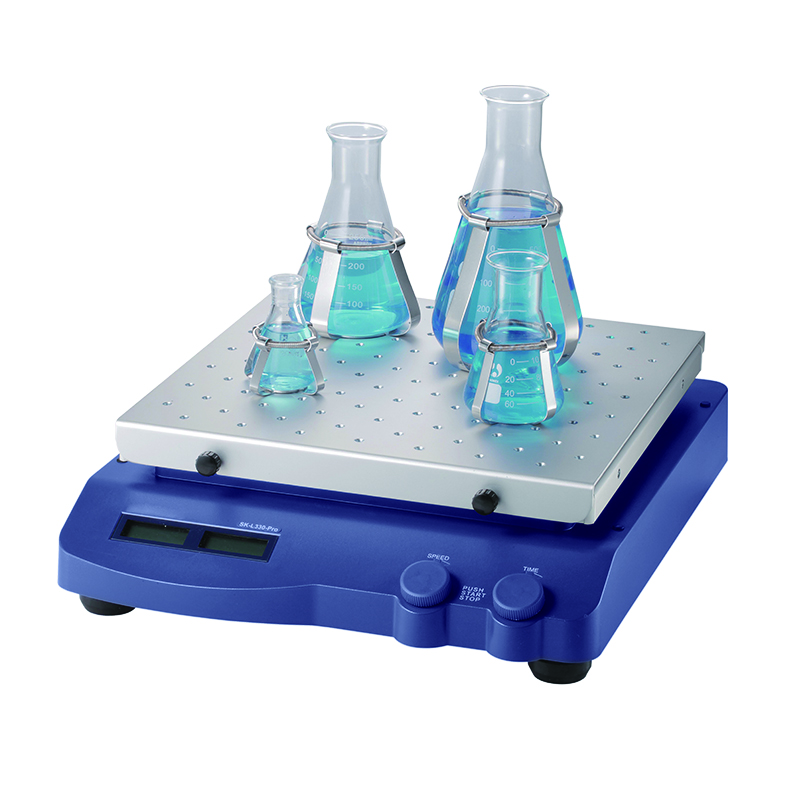

Laboratory Orbital shaker
Orbital and Linear Digital Shakers provide smooth and quiet motions for mixing in culture dishes, flasks and beakers.
Orbital and Linear Shak
- Compact, orbital and Linear shakers with ideal shaking motion, for a maximum shaking weight of 7.5kg and 2.5kg
- LCD displays speed and timer. Speed, timer and operating mode can be viewed simultaneously
- Wide range of platforms for use with a variety of vessels
- Electronic time switching clock controls time or continuous operation mode
- DC brushless motor, long service life and maintenance free
- Over speed detection and protection
- Free software ShakerPC, computer can control and document all operation values via RS232 interface
Model | SK-O330-Pro SK-L330-Pro | SK-O180-Pro SK-L180-Pro |
Power supply | 110/220V, 50/60Hz | |
Consumption | 30W | |
Shaking movement | Orbital /Linear | |
Orbital diameter [mm] | 10 | 4 |
Max. shaking weight (with attachment) [kg] | 7.5 | 2.5 |
Motor type | External rotor brushless motor | |
Motor rating input [W] | 28 | |
Motor rating output [W] | 15 | |
Speed range [rpm] | 100-500 (Orbital) | 100-800 (Orbital) |
100-350 (Linear) | 100-350 (Linear) | |
Speed display | LCD | |
Timer | Yes | |
Timer display | LCD | |
Time setting range [min] | 1-1199 | |
Run type | Timing / Continuous operation | |
Size [W*H*D mm] | 420*370*100 | 340*300*100 |
Weight [kg] | 13.5 | 8.1 |
Permissible ambient temp. | 5-40℃ | |
Permissible relative humidity | 80% | |
Protection class acc. DIN EN60529 | IP21 | |
RS232 interface | Yes | |
