- Type:
- Boiling Sterilization Apparatus
- Brand Name:
- BIOBASE
- Model Number:
- BKM-Z80BIII
- Place of Origin:
- Shandong, China
- Instrument classification:
- Class I
- Volume:
- 80L
- Design Pressure(MPa):
- -0.1/0.3MPa
- Design Temp.(℃):
- 144℃
- Temp.Range(℃):
- 105-136℃
- Chamber Material:
- 06Cr19Ni10 Stainless steel
- Power Supply:
- 110/220V±10%, 50/60Hz
- Overall Size(mm)(L*W*H):
- 1002*730*550
- Net Weight(Kg):
- 180
- Supply Ability:
- 1000 Unit/Units per Month
- Packaging Details
- wooden box
- Port
- qingdao
- Picture Example:
![package-img]()
- Lead Time:
Quantity(Units) 1 - 1 >1 Est. Time(days) 10 To be negotiated

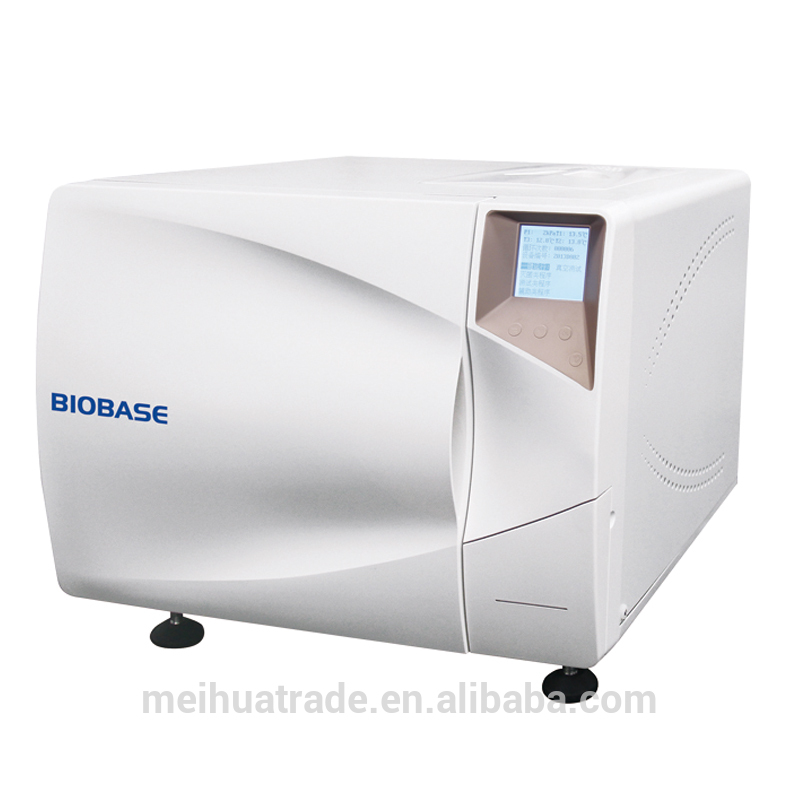

80L top table dental autoclave, automatic high pressure steam autoclave sterilizer
Biobase is a professional manufacture of laboratory products from 1999.
We supply a lot kinds of laboratory equipment and medical material.
Automatic high temperature and pressure rapid sterilizer
Picrure Show
Introduction
BKM-BIII series sterilizer is an automatic high temperature and pressure rapid sterilizer which works with steam as medium. It can be widely used in department of stomatology and ophthalmology, operating room, supply room, dialysis room and other medical institutions. It is unpacked items, solid instruments, dental hand pieces, endoscopes, implantable instruments, dressing fabric and rubber tubes, etc.
Build-in open type water tank
The sterilizer adopts easy-clean open type water tank that equipped with water quality monitor to ensure the reliability of steam quality and sterilizer operation .A fully injected water tank can support repeated program running.
Brand-new operation interface
The LCD screen can display temperature, pressure, time, operating status, failure warning and other information. It is convenient for customers to observe the sterilizer running status.
Multiple security protective device
Overhead auto protective device, multiple control and protection for steam generator safe door interlock, double overpressure protection, electronic circuit safety device.
Automatic door
BKM-18/24/45BIII series adopt auto door structure that can effectively prevent scald. BKM-60/80 BIII series door structure adopt multipoint stitching technology to ensure seal reliability .The door equipped with convenient one-button switch.
High-efficiency ultimate vacuum
The sterilizer adopts high-efficiency low noise vacuum system which has excellent effects. The ultimate vacuum value can reach -90KPa or above.
Multiple program types
The system has various programs that include: packed items, unpacked items, custom program, rapid program, BD testing program, vacuum testing program, preheat program and drying program.
High-efficiency steam generator
BKM-18/24/45BIII equipment with build-in instant steam generator. BKM-60/80BIII equipped with build-in energy-storing steam generator.
Other features
0.22um high-efficiency sterilizing filter that guarantees the air is sterile and prevents repeated contamination. All the processes of water injection, pulse vacuum, heating up, sterilization, exhausting and drying are automatic.
Specification
Model | BKM-Z18BIII | BKM-Z24BIII | BKM-Z45BIII | BKM-Z60BIII | BKM-Z80BIII |
Volume | 18 L | 24 L | 45 L | 60 L | 80 L |
Design Pressure(MPa) | -0.1/0.3MPa | ||||
Design Temp.(℃) | 144℃ | ||||
Temp.Range(℃) | 105-136℃ | ||||
Chamber Material | 06Cr19Ni10 Stainless steel | ||||
Power Supply | 110/220V±10%, 50/60Hz | ||||
Power Supply | 2 Kw | 2 Kw | 3.8 Kw | 7 Kw | 7 Kw |
Chamber Size(mm)(?*L) | φ250*350 | φ250*450 | φ316*618 | φ385*595 | φ385*717 |
Overall Size(mm)(L*W*H) | 585*515*450 | 685*515*450 | 830*640*550 | 1002*730*560 | 1002*730*560 |
Net Weight(Kg) | 55 | 65 | 115 | 160 | 180 |
Optional Accessory:
Optional configuration
Operation type: push-button operation or inductive operation or inductive operation
Record type: printer
Electronic storage: USB flash disk
Remote monitoring: computer or pad
