2016China best supplier

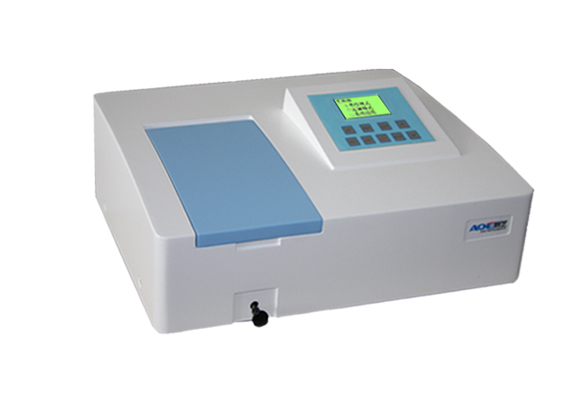

UV visible Spectrophotometer
introduction of our product
Features
1. Large LCD screen (128*64 Dots).
2. Can display total 50 groups of data, 3 groups per screen. Can display standard curve and the curve equation.
3. System can also save the test results. Total 200 groups of data and 200 standard curves can be saved; it is convenient for check and reload.
4. Data can be restored after a sudden power cut.
5. Auto setting wavelength.
6. Tungsten lamp & Deuterium lamp can be turned on/off individually to extend lifetime.
7. Pre-aligned design makes it convenient to change lamps.
8. Large sample compartment, it can accommodate 5-100mm path length cuvettes with optional holders. A variety of optional accessories are available.
9. The optional application software M. Wave Professional provides complete control of the spectrophotometer through the Built-in USB port. You can achieve the following functions:
1. Quantitative; 2. Kinetics; 3. Wavelength Scan; 4. Multi Wavelength; 5. DNA/Protein.
Biobase Meihua Trading Co.,Ltd is the subsidiary of BIOBASE group. BIOBASE,
established in 1999,has been through high and stable development for 15 years,is now with revenues of one hundred million,1200employees in China and abroad offices.The products we manufacture extend
to most of the laboratory items and scientific analytical equipment,covering biological safety
cabinets,laminar flow cabinets,fume hoods,incubators,autoclaves,biochemistry analyzers,
ELISA microplate processors drying ovens,centrifuges,microscopes,biochemical reagents, etc.Our mission is to enable our customers to make the world healthier,cleanerand safer.
BIOBASE group invests in science and technology researches,aims to keep improving products
performance and quality as well as develops new products to meet customers"wide requirement.
We satisfy our customers by offering comprehensive support,purchase convenience and we are ready to
serve more and more BIOBASE users.
BIOBASE group,serving global distributors and its loyal end users,is becoming one of the most
important scientific services supplier.
We have acquired ISO, CE, EN, NSF and FDA certificates.
Functions
1. Basic Mode: Absorbance, Transmittance, Concentration.
2. Quantitative.
2.1 Standard Curve (Only for BSB-V-1200, BSB-UV-1200)
Maximum of 9 standard samples can be used to establish a standard curve: The curve equation will display on the screen simultaneously. You can test your unknown concentration solutions by the curve.
2.2 Coefficient Methods (Only for BSB-V-1200, BSB-UV-1200)
If you have known the coefficients K&b of the formula C=K*A+b, you can input the value directly by button, then test your unknown solution.
Specification
Model | BS-V-1200 | BS-UV-1200 | BS-UV-1100 |
Wavelength Range | 325-1000nm | 200-1000nm | |
Spectral Bandwidth | 4nm(2nm optional) | ||
Optical System | Single Beam , Grating 1200 lines/mm | ||
Wavelength Accuracy | ±1nm | ±2nm | |
Wavelength Repeatability | 0.8nm | 1nm | |
Photometric Repeatability | ≤0.2%T | ||
Photometric Accuracy | ±0.5%T or ±0.003A@1A | ||
Photometric Range | 0-200%T , -0.3 - 3A ,0-9999Conc | ||
Stray Light | 0.2%T 220nm, 360nm | 0.2%T, 360nm | |
Stability | ±0.002A/h @500nm | ||
Detector | Silicon Photodiode | ||
Standard Cell Holder | 4-position 10mm cell changer | ||
Sample Compartment | Standard 10mm pathlength cuvette | ||
Light Source | Tungsten lamp | Tungsten& Deuterium lamp | |
Output | USB Port & Parallel Port (Printer) | ||
Power Requirement | AC 110/220V 50/60Hz | ||
Dimensions(W*D*H) | 440*387*180mm | ||
Weight | 12kg | 14kg | |
