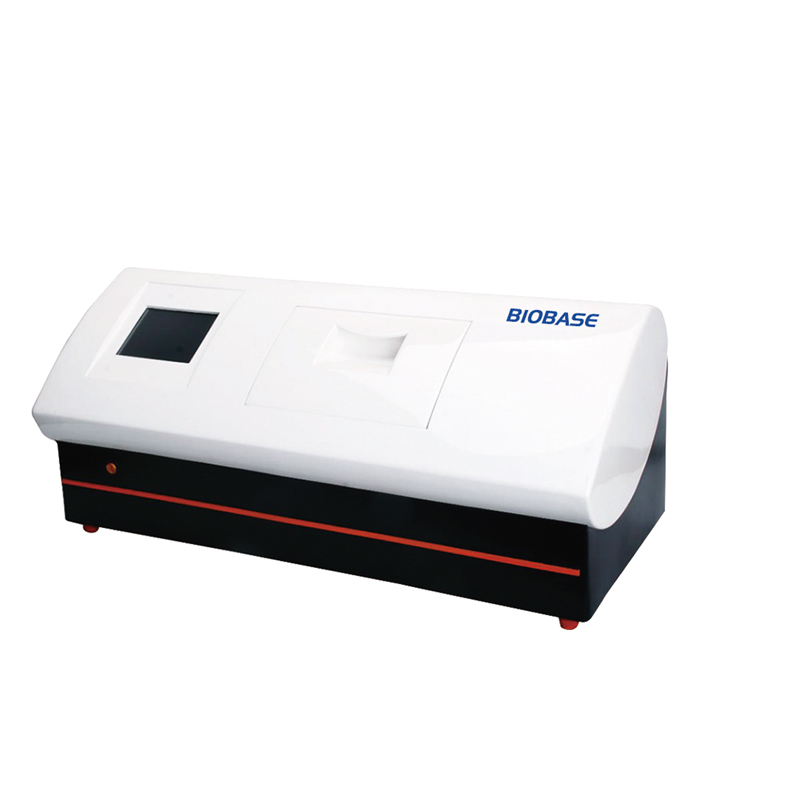

BIOBASE laboratory automatic polarimeter with sodium lamp BP-3
Features:
1. Photoelectric test and microcomputer control.
2. Measuring specific rotation, optical rotation, concentration and sugar degree.
3. Automatic repitition-measurement for 6 times, and calculation of average value and means square root.
Model | BP-3 | |
Light Source | Sodium lamp | |
Measuring Range | ±45°(optional rotation)/120°Z(sugar) | |
Wavelength | 589nm | |
Readable Accuracy | 0.001°(optical rotation)/0.01°Z(sugar) | |
Measuring Accuracy | ±(0.01°+measurement value*0.05%)°(optical rotation) | |
Repeatability | 0.003°(optical rotation) | |
Sample Transmittance |
>10% | |
Temperature Control Range |
15~30℃ | |
Test Mode | Optical rotation, specific rotation, concentration, sugar degree | |
Display | LCD | |
Test Tube | 200mm, 100mm | |
Interface | RS232 | |
Power Supply | AC110/220V±10%, 50/60Hz | |
External Size(W*D*H) | 570*350*280mm | |
Package Size(W*D*H) | 730*480*470mm | |
Gross Weight | 36kg | |
| Q: Why choose BIOBASE? |
(1) More than 20 years history of manufacturing |
| Q: How about BIOBASE payment term? |
| A: T/T in advance & L/C & Weatern Union(40% deposit,the balance before shipment). |
| Q: How about BIOBASE delivery time? |
| A: 10-15 days after we receive prepayment. |
| Q: How about the package? |
| A: Plywood case or carton or standard export wooden case. |
Q: What"s the loading port? |
A: FOB to Qingdao port China or as customer"s request |
