Click on the image to view the original image
2016 China best supplier

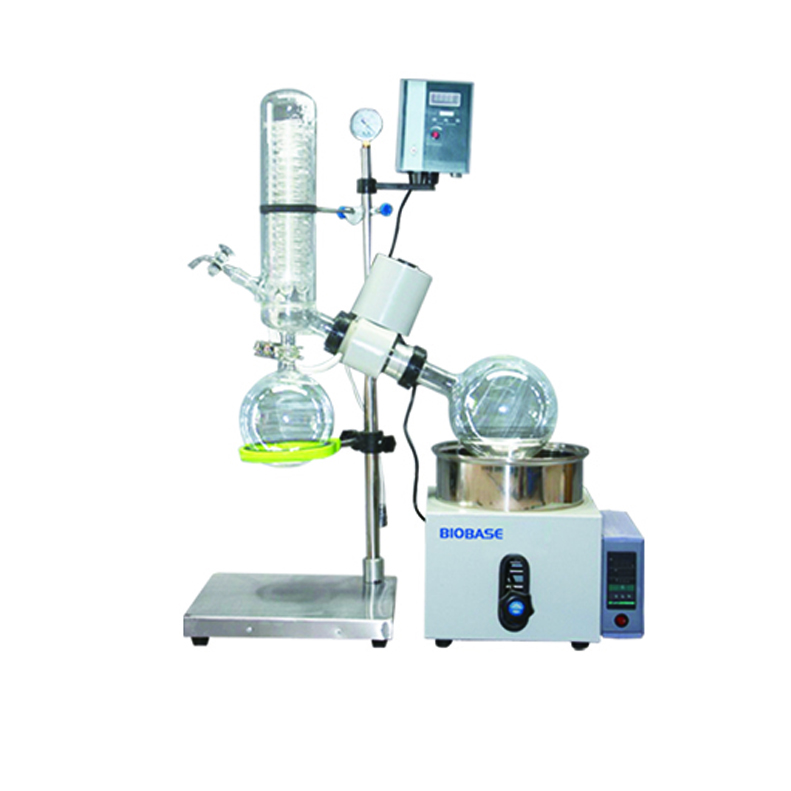

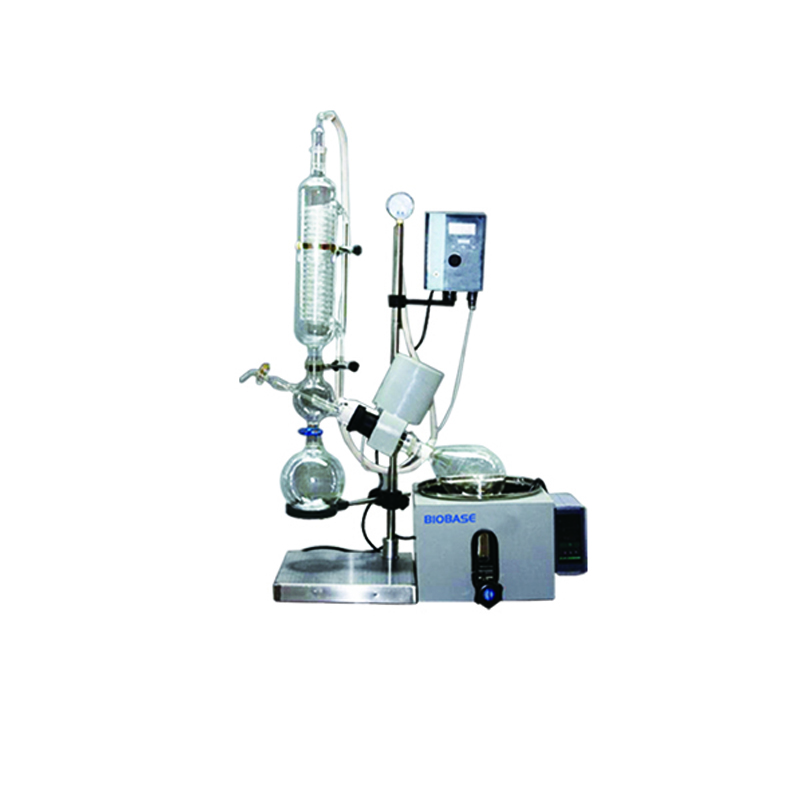

Laboratory RE-52A/ RE-52C/ RE-5299 rotary vacuum
introduction of our product
This product can form film under constant temperature heating and negative pressure conditions.Owning to
its efficient evaporation and condensation recovery of menstruum ,the product is employed in biological ,medical, chemical and food industries , especially for operations of heat-sensitive material,crystallization,separation and recovery of menstruum.
1.Double sealing with Teflon and Viton makes vacuum as high as 399.9 pa.
2.High rate of evaporate and recovery.
3.Series module design and highly expandable.
4.Easy assemble and disassembly,simple operation and easy maintenance.
5.Key sealing and electronic components are imported advanced products
| Model | RE-52A | RE-52C | RE-5299 |
| Glass Material | GG-17 | ||
| Shelf Material | Coating anticorrosive Pot shell material :Coating anticorrosive 250*365*150mm | ||
| Pot material | Stainless steel 240*120mm | ||
| Rotary Bottle(L) | 1 24#standard size | ||
| Collecting Bottle(L) | 0.5 24#standard size | ||
| Vacuum(Mpa) | -0.098 | ||
| Rotary Power | 30W | ||
| Running Speed(rpm) | NO | ||
| Rotary Speed(r/min) | 0-120 | ||
| Evaporating Rate(L/H2O) | ≥1 | ||
| Heating power | 1KW | ||
| Bath temperature control range | 0-99℃ | ||
| Temperature Range(℃) | RT-99/RT-299 | ||
| Temperature control accuracy | ±1℃ | ||
| Lifting distance | 120mm | ||
| Voltage/Frequency(V/Hz) | 220V/50Hz | ||
| Packing Size(mm) | 590*460*460 0.12m3 | ||
| Packing Weight(KG) | 21 | ||
| Speed adjustable mode | Electronic classless speed control | ||
| Temperature display mode | CU50 Sensors,Digital display | ||
| Temperature control mode | Intelligent control | ||
| Sealing way | Four fluorine components seal | ||
| Lift way | By manual | ||
| Condenser | Vertical condenser 85*460mm 29#standard size | ||
| Continuous charging | 19# | ||
| Heating Model | 0-400℃ | ||
| Bath pot material | |||
| Spray device | Bath mates a transparent cover | ||
