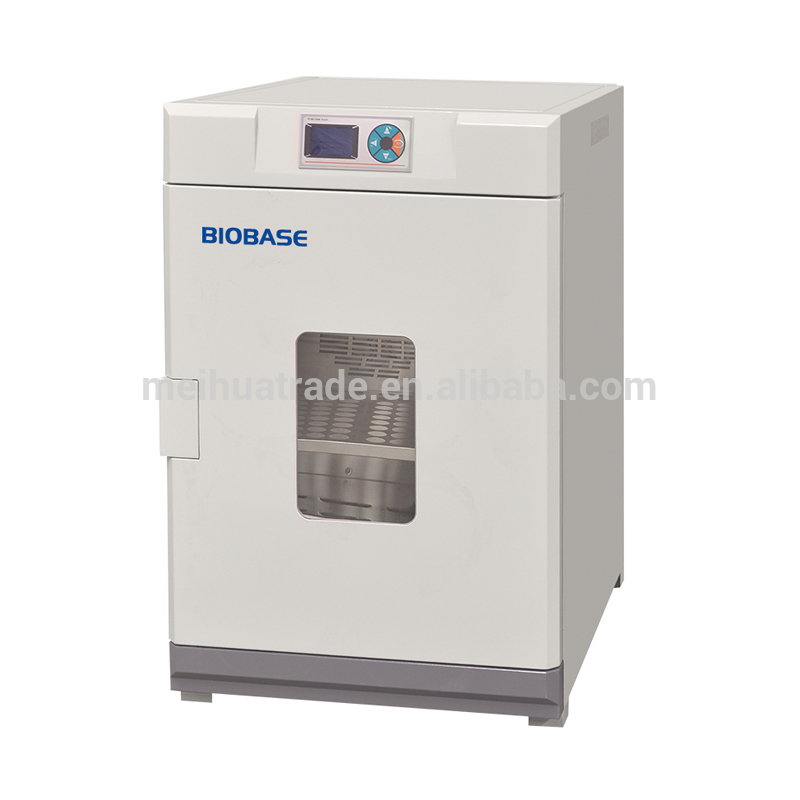

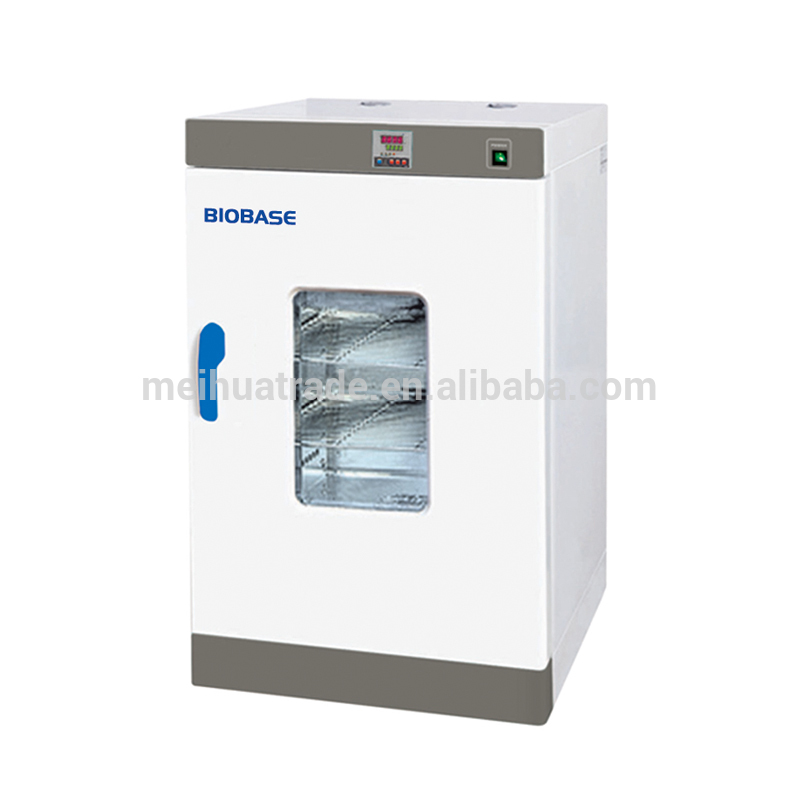

Forced Air Drying Oven with Over-temperature Protection
Features:
1. External material: excellent cool-rolled steel with electrostatic coating.
2. Stainless steel inner chamber, round angle structure, adjustable shelves.
3. Double-layer glass observation window, adjustable airtight buckle lock.
3.PID microprocessor intelligent temperature controller.
4. Over-temperature protection.
Note: model BOV-V625F is top blowing.
Optional:
1.RS-485 interface for software connection
2.Independent temperature controller
3. Large LCD with timingfunction.
Model | BOV-V30F | BOV-V35F | BOV-V45F | BOV-V65F | BOV-V70F | BOV-V125F | BOV-V136F | BOV-V225F | BOV-V230F | BOV-V429F | BOV-V625F | BOV-V640F | BOV-V960F |
Capacity | 30L | 35L | 45L | 65L | 70L | 125L | 136L | 225L | 230L | 429L | 625L | 640L | 960L |
Temp. Range | RT+5~300℃ | RT+10~250℃ | RT+5~300℃ | RT+5~300℃ | RT+10~250/300℃ | RT+5~300℃ | RT+10~250/300℃ | RT+10~250/300℃ | RT+5~300℃ | RT+10~250/300℃ | RT+5~300℃ | RT+10~250/300℃ | RT+10~250/300℃ |
Temp. Precision | 0.1℃ | ||||||||||||
Temp. Fluctuation | ±0.5℃ | ||||||||||||
Ambient Temp. | +5~40℃ | ||||||||||||
Timing Range | 1~9999min | ||||||||||||
Shelves No. | 2pcs | 3pcs | 3pcs | 4pcs | 5pcs | ||||||||
Power Consumption | 800W | 550W | 1200W | 1600W | 1050W | 2300W | 1500W | 2100W | 3000W | 4000W | 5000W | 4500W | 6000W |
Power Supply | 220V±10%,50/60Hz; | 220V±10%,50/60Hz; 110V±10%,60Hz | 220V±10%,50/60Hz; | 220V±10%,50/60Hz; | 220V±10%,50/60Hz; 110V±10%,60Hz | 220V±10%,50/60Hz; | 220V±10%,50/60Hz; 110V±10%,60Hz | 220V±10%,50/60Hz; 110V±10%,60Hz | 220V±10%,50/60Hz; | 380V/50HZ | |||
Internal Size(W*D*H)mm | 310*310*310 | 340*320*320 | 350*350*350 | 400*360*450 | 400*350*500 | 500*450*550 | 450*550*550 | 500*600*750 | 600*500*750 | 600*550*1300 | 660*760*1250 | 800*600*1300 | 1000*600*1600 |
External Size(W*D*H)mm | 460*510*695 | 620*530*490 | 500*550*735 | 540*550*840 | 550*550*860 | 636*680*915 | 600*745*900 | 650*805*1100 | 730*670*1220 | 745*750*1670 | 895*925*1830 | 945*800*1690 | 1140*800*2150 |
Packing Size (W*D*H)mm | 550*570*765 | 640*615*790 | 620*585*800 | 640*640*905 | 680*680*990 | 730*720*1000 | 730*860*1030 | 780*880*1210 | 900*800*1350 | 880*880*1820 | 1000*1080*2000 | 1050*870*1795 | 1220*890*2190 |
Gross Weight(kg) | 51 | 55 | 56 | 61 | 75 | 71 | 95 | 110 | 105 | 145 | 160 | 170 | 230 |
Biobase Meihua Trading Co.,Ltd is the subsidiary of BIOBASE group. BIOBASE,
established in 1999,has been through high and stable development for 15 years,is now with revenues of one hundred million,1200employees in China and abroad offices.The products we manufacture extend
to most of the laboratory items and scientific analytical equipment,covering biological safety
cabinets,laminar flow cabinets,fume hoods,incubators,autoclaves,biochemistry analyzers,
ELISA microplate processors drying ovens,centrifuges,microscopes,biochemical reagents, etc.Our mission is to enable our customers to make the world healthier,cleanerand safer.
BIOBASE group invests in science and technology researches,aims to keep improving products
performance and quality as well as develops new products to meet customers"wide requirement.
We satisfy our customers by offering comprehensive support,purchase convenience and we are ready to
serve more and more BIOBASE users.
BIOBASE group,serving global distributors and its loyal end users,is becoming one of the most
important scientific services supplier.
We have acquired ISO, CE, EN, NSF and FDA certificates.
Important information that you may concern about:
1. Pacakge: All the products wil be packed firmaly in standard wooden case/ carton to make sure that the product won"t be damaged during the delivery.
2. Delivery time: Generally, the delivery time is about 10-20 days. If the product is a hot-sale one and out of stock, that might be a bit longer but we will try our best to let our customers receive the products as soon as we can.
3. Warranty: The warranty is generally 12-month, during which the replacement of broken components are free. Accessories are available.
4. Payment: T/T in advance is preferred. West union is also accpted.
