2016China best supplier

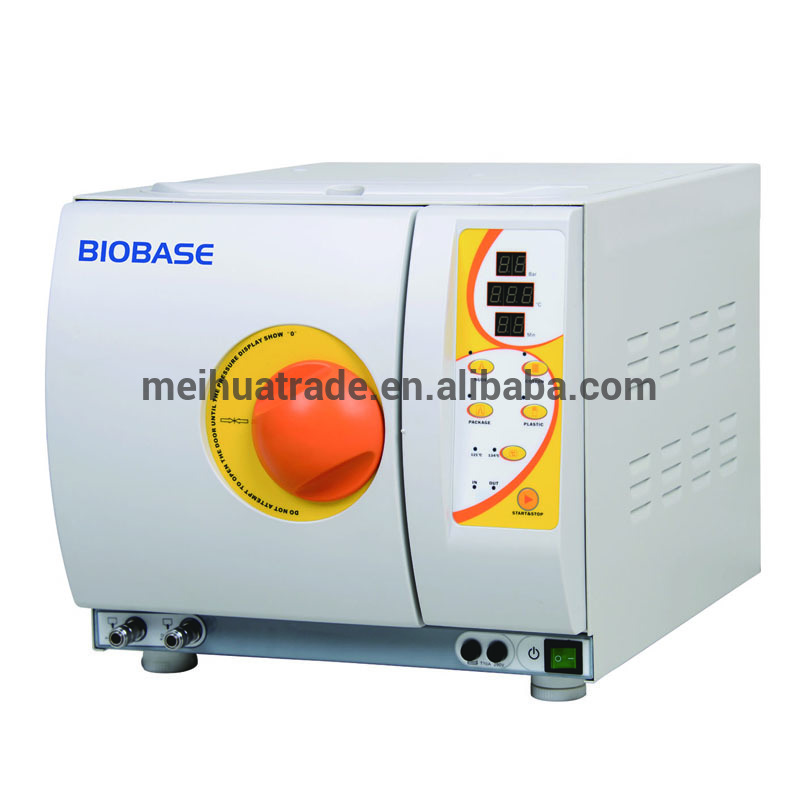

Table-Top Autoclave Specially design for dental clinic field autoclave sterilizer cheap price
Introduction of our product
The compact design makes functions all-in-one. BKM-Z7B adopts three pulse vacuum air exchange and post-vacuum drying technologies, reaching the European Class B Stardard. It can be used in the sterilization of cloth, hollow instrument, stuff with tine holes, suitable for dental clinics, tatoo and body piercing studio, etc.
Top water tank compalying with the EN 13060 standard, easy for cleaning
Steam generator. Adopting unique fuzzy control system to secure the same temp.
rising rate at each phase
LCD dispaly, modular operation
Pressure changes of each program
Application:
Autoclaves are equipment for sterilizing widely used in microbiology, medicine, podiatry, tattooing, body piercing, veterinary science, mycology, dentistry, and prosthetics fabrication. They vary in size and function depending on the media to be sterilized.
Model | BKM-Z12N | BKM-Z18N | BKM-Z24N |
Capacity | 12L | 18L | 24L |
Sterilization Class | Class N (according to EN 13060 standard) | ||
Sterilization Temp. | 121℃,134℃ | ||
Drying Procedure | Heating dry | ||
Display | LED display | ||
Testing System | B&D test | ||
Control Precision | Temperature: 1℃ | ||
Pressure: 0.1bar | |||
Sterilization Data | Optional Mini printer | ||
Safety System | Hand lock door | ||
Pressure lock system | |||
Relief valve in case of over pressure | |||
Pressure or temperature over load protection | |||
Alarm for system failure, finish reminding, water level warning | |||
Water Supply System | Build-in water tank, easy to clean | ||
Water tank capacity | 4L | ||
Water Consumption | 0.16L~0.18L in one cycle | ||
Tray Holder | 3 pcs SS trays on SS shelf | ||
Chamber | Medical stainless steel 304 unibody structure | ||
Max working pressure:2.3bar | |||
Min working pressure: -0.9bar | |||
Max temperature: 145℃ | |||
Ambient Temp. | 5~40℃ | ||
Noise | <50dB | ||
Power Supply | 110/220V±10%, 60/50Hz | ||
Power Consumption | 1400W | 1500W | 1700W |
Chamber Size(mm) | φ192×340 | φ245×360 | φ245*470 |
External Size(mm) | 560X450X400 | 560*450*400 | 670*450*400 |
Packing Size(mm) | 660×525×495 | 660*525*495 | 770*525*495 |
Gross Weight(kg) | 48 | 53 | 60 |
