18L/24L/45L/60L/80L Table top autoclave Class B vacuum drying autoclave for sale

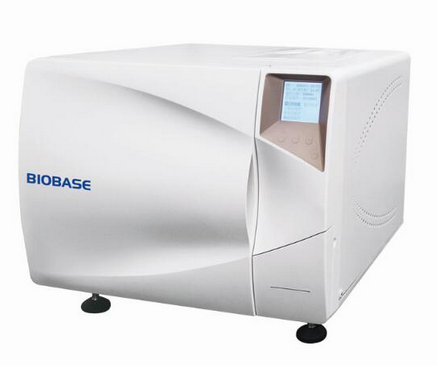

BKMB(III) series sterilizer is an automatic high temperature and
pressure rapid sterilizer which works with steam as medium. It
can be widely used in department of stomatology and
ophthalmology, operating room, supply room, dialysis room and
other medical institutions. It is unpacked items, solid
instruments, dental hand pieces, endoscopes, implantable
instruments, dressing fabric and rubber tubes, etc.
Build-in open type water tank
a. Easy-clean open type water tank
b. Water quality monitor
c. Water filter inside
d. Water level sensor
e. A fully injected water tank can support repeated program running.
Brand-new operation interface
The LCD screen can display temperature, pressure, time, operating status, failure warning and other information.
It is convenient for customers to observe the sterilizer running status.
Multiple security protective device
Overhead auto protective device, multiple control and protection for steam generator safe door interlock, double
overpressure protection, electronic circuit safety device.
Automatic door
BKM-Z18/24/45B(III) series adopt auto door structure that can effectively prevent scald. BKM-60/80B(III) series door structure adopt multipoint stitching technology to ensure seal reliability .The door equipped
with convenient one-button switch.
High-efficiency ultimate vacuum
The sterilizer adopts high-efficiency low noise vacuum system which has excellent effects. The ultimate vacuum value can reach -90KPa
or above.
Multiple program types
The system has various programs that include: packed items, unpacked items, custom program, rapid program,
BD testing program, vacuum testing program, preheat program and drying program.
High-efficiency steam generator
BKM-Z18/24/45B(III) equipment with build-in instant steam generator. BKM-60/80B(III) equipped with build-in
energy-storing steam generator.
Other features
0.22um highefficiency sterilizing filter that guarantees the air is sterile and prevents repeated contamination. All
the processes of water injection, pulse vacuum, heating up, sterilization, exhausting and drying are automatic

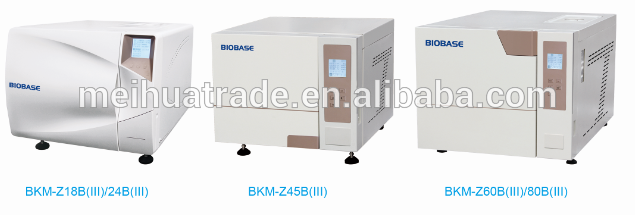

Model | BKM-Z18B(III) | BKM-Z24B(III) | BKM-Z45B(III) | BKM-Z60B(III) | BKM-Z80B(III) |
Capacity | 18 L | 24 L | 45 L | 60 L | 80 L |
Design Pressure | -0.1/0.3MPa | ||||
Design Temp. | 144℃ | ||||
Temp. Range | 105-136℃ | ||||
Chamber Material | Medical Stainless steel 304 | ||||
Standard Loading Tray | Type A | Type B | |||
Power Supply | 110/220V±10%, 60/50Hz | 220V±10%, 50/60Hz | |||
Power Consumption | 2 Kw | 2 Kw | 3.8 Kw | 7 Kw | 7 Kw |
Chamber Size(mm) | ?250*350 | ?250*450 | ?316*618 | ?385*595 | ?385*717 |
External Size(mm) | 585*515*450 | 685*515*450 | 830*640*550 | 1002*730*560 | 1002*730*560 |
Packing Size(mm) | 880*720*680 | 980*720*680 | 990*770*785 | 1160*870*795 | 1160*870*795 |
Gross Weight(kg) | 60 | 70 | 80 | 120 | 180 |
