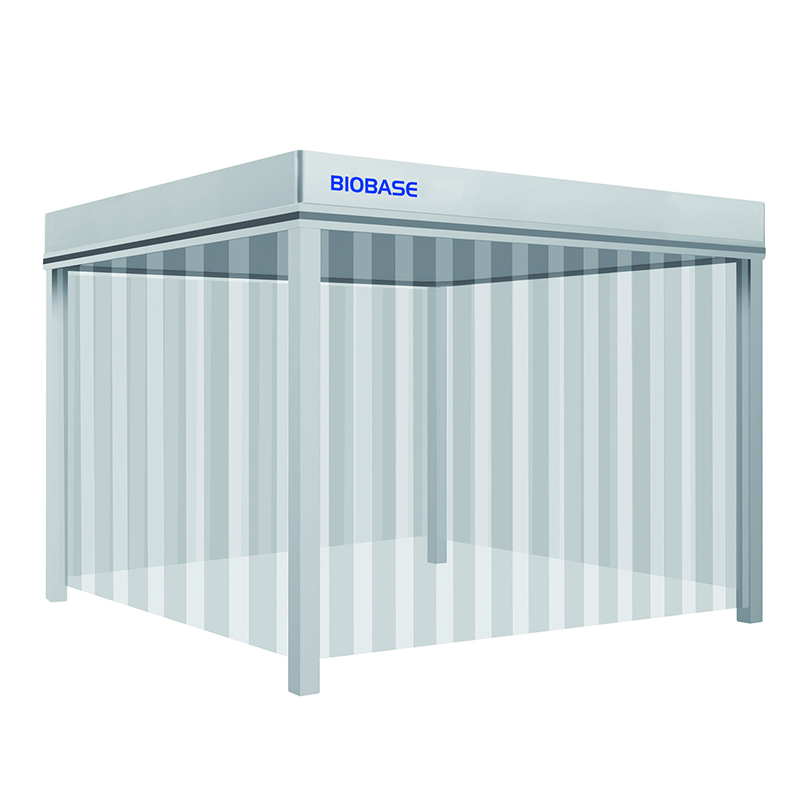

BIOBASE China Clean Booth /Softwall Clean Room
Clean booth is a kind of air purifying equipment providing partial high clean environment, it’s the easiest and fastest way to build a simple clean room. Equipped with a lot of clean level and space collocation, it can be designed as request. Main characteristics: simple use, good flexibility, easy installation, short construction time, and movable. It can be installed in part of clean room of general level which requires high cleanliness to save cost.
Features
1. It can be used singly or combined.
2. Compared with civil type and fabricated type clean room of hundred clean level, it has low running cost and fast effect and can be easily installed.
3. Modular construction, easy to increase clean level, good expansion and reusable, convenient movement( Universal wheel can be installed)
4. Customized design is welcome.
Model | BKCB-1500 | BKCB-2000 | BKCB-3000 | BKCB-5000 |
External Size (W*D*H) mm | 1500*2000*2500 | 2000*3000*2500 | 3000*4000*2500 | 5000*5000*2500 |
HEPA Filters | 99.999% efficiency at 0.3 um | |||
Consumption | 500W | 800W | 1000W | 1600W |
Weight | 350kg | 420kg | 570kg | 820kg |
FFU Nos. | 4 pcs | 6 pcs | 12 pcs | 25 pcs |
Clean Level | ISO 5 (Class 100), Class A | |||
Control System | Microprocessor control system | |||
Rectangular Tube Material | Stainless steel/ aluminum/ painting steel sheet | |||
Wall Material | Anti-static dustproof curtain | |||
Blower | Built-in centrifugal blower; speed adjustable | |||
UV Lamp | Emission of 253.7nm, with UV timer | |||
Air Velocity | 0.1~0.6m/s, average 0.45m/s | |||
Noise | ≤58db | |||
Power Supply | 110/220V±10%, 50/60HZ | |||
Customized design for clean level, size or material is available | ||||
Reference Picture
Reference picture
FFU(Fan Filter Unit), which draws in contaminated air from the top of the module, and exhausts filtered clean air vertically in a unidirectional(laminar) air stream at its base, is a self-contained fan and filter module for clean room applications.
Microprocessor Control Panel
Users can control the fan, light, UV and adjust the air velocity with it.
Design drawing
Soft Wall Material
PVC anti-static dustproof curtain.
