BIOBASE China 99.999% efficiency laboratory and medical HEPA Filter Clean room Booth
introduction of clean room booth
Clean booth is a kind of air purifying equipment providing partial
high clean environment, it’s the easiest and fastest way to build
a simple clean room. Equipped with a lot of clean level and space
collocation, it can be designed as request.
Main characteristics: simple use, good flexibility, easy installation,
short construction time,and movable.
It can be installed in part of clean room of general level which
requires high cleanliness to save cost.
Feature of clean room booth
1. Customized design is welcomed.
2. It can be used singly or combined.
3. Compared with civil type and fabricated type clean room of hundred clean level,
it has low running cost and fast effect and can be easily installed.
4. Modular construction, easy to increase clean level, good expansion and reusable,
convenient movement (Universal wheel can be installed).
Picture and standard accessories of clean roon booth

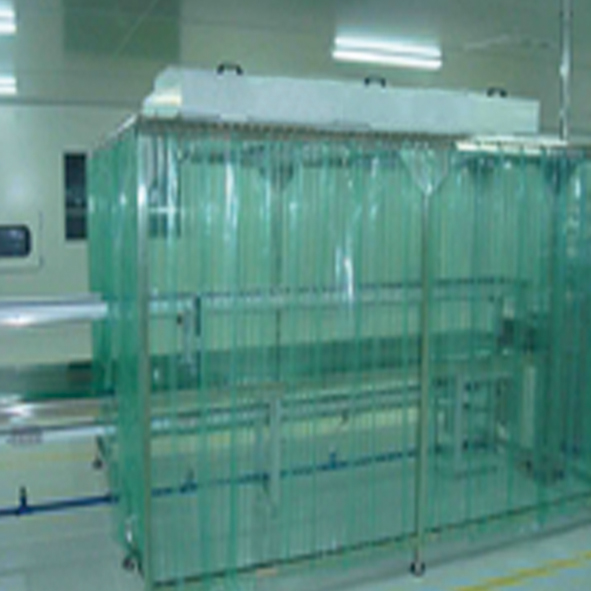

Reference picture of clean room booth
FFU(Fan Filter Unit), which draws in contaminated air from the top of the module, and exhausts filtered clean air vertically in a unidirectional(laminar) air stream at its base, is a self-contained fan and filter module for clean room applications.
Microprocessor Control
Users can control the fan, light, UV and adjust the air velocity with it.
Design drawing
Soft Wall Material
PVC anti-static dustproof curtain.
Model | BKCB-1500 | BKCB-2000 | BKCB-3000 | BKCB-5000 |
External Size (W*D*H) | 1500*2000*2500mm | 2000*3000*2500mm | 3000*4000*2500mm | 5000*5000*2500mm |
HEPA Filters | 99.999% efficiency at 0.3 um | |||
Consumption | 500W | 800W | 1000W | 1600W |
Weight | 350kg | 420kg | 570kg | 820kg |
FFU Nos. | 4 pcs | 6 pcs | 12 pcs | 25 pcs |
Clean Level | ISO 5 (Class 100), Class A | |||
Control System | Microprocessor control system | |||
Rectangular Tube Material | Cold-rolled steel with anti-bacteria powder coating | |||
Wall Material | Anti-static dustproof curtain | |||
Blower | Built-in centrifugal blower; speed adjustable | |||
UV Lamp | Emission of 253.7nanometers, with UV timer | |||
Air Velocity | 0.1~0.6m/s, average 0.45m/s | |||
Noise | ≤58db | |||
Power Supply | AC220V±10%, 50/60Hz; 110V±10%, 60Hz | |||
Gross Weight | 310Kg | 670Kg | 720Kg | 1300Kg |
Package Size (W*D*H) | 2150*880*900mm 2300*700*500mm | 1200*1200*950mm 1200*1200*950mm 3150*1200*950mm | 2200*1180*950mm 2200*1180*950mm 2150*1100*450mm | 2200*1180*950mm 2200*1180*950mm 2200*1180*950mm 2200*1180*950mm 2650*1300*550mm |
Customized design for clean level, size or material is available | ||||
