Fully automated ELISA analyzer/(BIOBASE2000)/elisa reader price/elisa kit
1.4 microplates,2 pipetting probes
2. 192 sample positions , 96 dilution positions,23 reagent positions, 16 common reagent positions,48 QC positions.
3. All sample & reagent positions can be editable.
Testing Range:
1. TORCH SERIES 4. THYROID AUTOIMMUNITY SERIES
Toxo, RV, CMV, HSV etc. T3, T4, FT3, TSH etc
2. HEPATITIS SERIES 5. ENDOCRINE SERIES
HAV, HBV, HCV, HDV, HEV etc. E2, E3, LH, FSH, HCG, Pro, PRL etc.
3. VENEREAL SERIES 6. TUMOR MARKER SERIES
HIV, TP, MP, CT etc. CEA, AFP, PSA F-PSA, CAL9-9, CAL 25, CA15-3, CA242.
Model | BIOBASE2000 | |

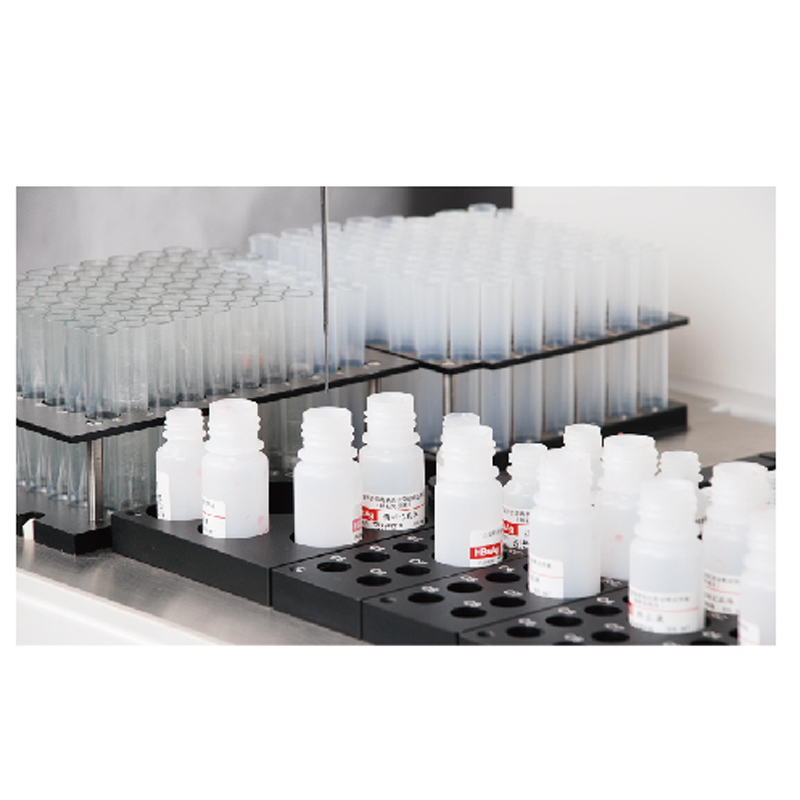

| Sample pipetting unit | Sample rack | 24 sample tubes/rack, at most 23 racks |
| Primary sample tubes | 11.5-13mm | |
| Pipetting | 8ul~1000ul, (10ul) CV<5% | |
| Time to dispense | 12 minutes adding 96 samples | |

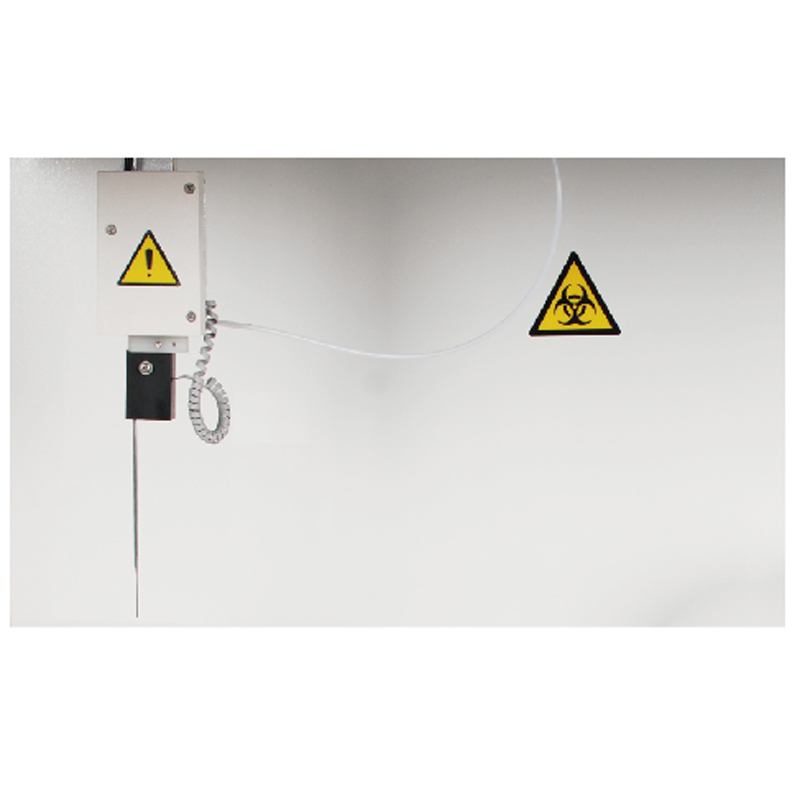

| Dispensing system | 1 aspirating-dispensing probe with X-Y-Z movement;dilution system with a syringe of 1000ul, continuous flow washing station. | |
Reagent pipetting unit | Reagent racks | 2 reagent tanks(60ml)/ rack, at most 23 racks |
| QC racks | 24 positions/QC rack, at most 23 racks | |
| Pipetting | 8ul~1000ul,1ul stepping | |
| pipetting precision | (100ul )CV≤0.5% | |
| Time to dispense | 3 minutes(typical)^100ul of 96 reagents to plate from reagent bottle | |
Washing unit | Programmable | Yes(options & parameters) |
| Wash containers | 3 wash buffers at 2.0L,1 wash buffers at 5.0L,with level-sensing | |
| Waste containers | 25L with waste full sensor | |
| Washing system | two 8 nozzle manifolds, one to dispense and the other one to aspirate | |
| Washing residual | <2μl | |
Reading unit | Reading system | 8 independent photometric channels with mono and bichromatic reading capability |
| Photometric range | 0.000 ~3.000 OD | |
| Spectral range | 400-700nm | |
| Optical filters | 2 precision filters (450and 630nm); 2 more on request (4 filters max, 405 nm, 450 nm, 492 nm and 630 nm) | |
| Reading inaccuracy | inaccuracy±1% from 0.000 to 1.500 OD, ±2% from 1.500 to 3.000 OD | |
Incubation unit | Incubators | 4 independent units |
| Programmable | Yes | |
| Temperature range | RT to 45 °C | |
| Temperature accuracy | ±0.5℃ | |
| Temperature staility | ±0.5℃ | |
Software unit | Software system | Windows 7/8/107 or above, LIS system available |
| Function application | work list set up, patient reports and result filing; calibration curve storage for each carried out test | |
| Data reduction | cut-off (qualitative) | |
Others | Power Supply | AC 110/220V±10%,50/60Hz,450W |
| External Size(W*D*H) | 1235*710*880mm | |
| PackageSize(W*D*H) | 1370*850*1439mm | |
| Gross Weight | 220kg | |
