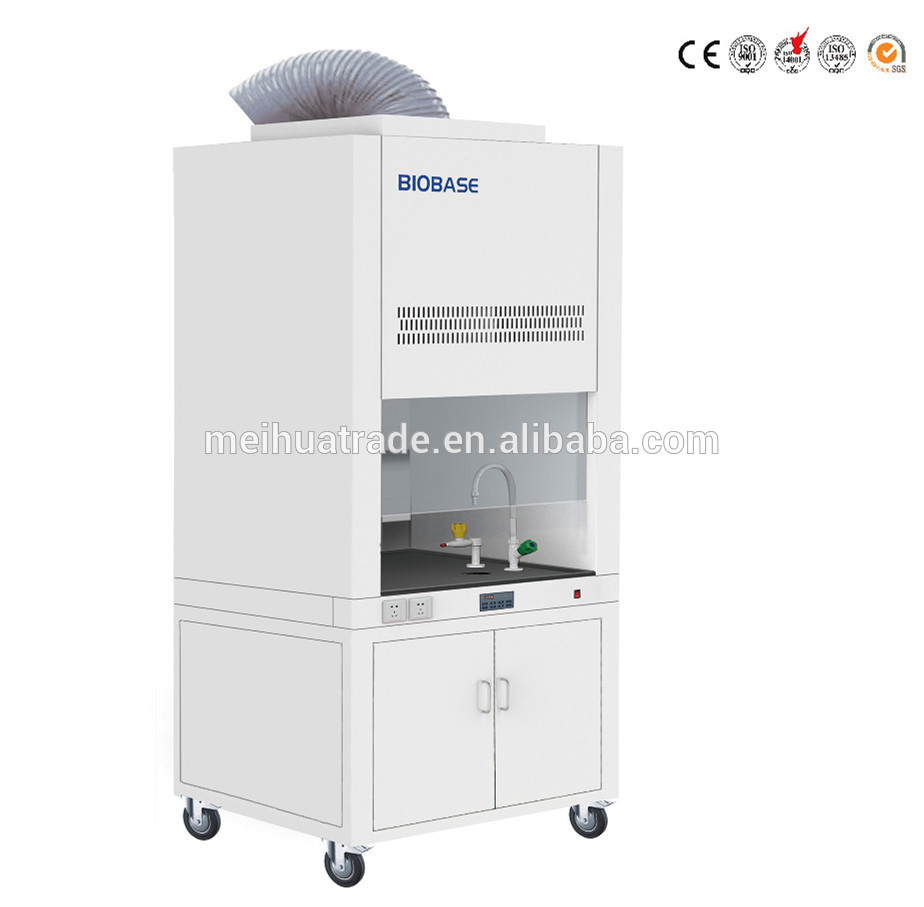

BIOBASE China Professional Fume Hood manufacturer BIOBASE PP Fume Hood FH1500(P) with efficient after-sales service
Fume Hood is used to protect lab environment and operator during general chemical applications. It actively protects operator from inhaling toxic vapors and dramatically reduces the risk of fire and explosion. By installing proper filter, it can also protect environment.
Production Description
LED Display
Waterproof Socket
PP sink
Resistsnt strong acid,alkali and anti-corrosion
Water&Gas Remote Control
Advantage
1.It is safer to use anti-corrosive water tap.
2.Microprocessor control system, LCD display
3.Made of porcelain white PP, resistant to strong acid, alkali and anti-corrosion.
4.Front window which is made of thick transparent toughened glass maximize light and visibility inside the fume hood, providing a bright and open working environment.
Model | FH1000 | FH1200 | FH1500 | FH1800 | |||||||
External Size (W*D*H) | 1000*750*2320mm | 1200*800*2345mm | 1500*800*2345mm | 1800*800 *2345mm | |||||||
Internal Size (W*D*H) | 820*620*750mm | 1020*670*750mm | 1320*670*750mm | 1620*670 *750mm | |||||||
Work Surface Height | 850mm | ||||||||||
Max Opening | 520mm | 570mm | 570mm | 570mm | |||||||
Air Velocity | 0.3~0.8m/s | ||||||||||
Protection Class | Class I | ||||||||||
Protection Type | IP 20 | ||||||||||
Noise | ≤60dB | ||||||||||
Exhaust Duct | PVC, Standard length: 4 meters. | ||||||||||
Φ300mm | |||||||||||
Pipe Strap | 1 pc | ||||||||||
Fluorescent Lamp | 14W*1 | 21W*1 | 28W*1 | 36W*1 | |||||||
UV Lamp | Emission of 253.7 nanometers for most efficient decontamination | ||||||||||
Blower | Built-in centrifugal blower; Speed adjustable. | ||||||||||
Front Window | 5mm toughened glass; Motorized; Height adjustable. | ||||||||||
Power Supply | 220V/ 50Hz; 220V/ 60Hz; 110V/60Hz | ||||||||||
Consumption | 400W | 400W | 500W | 500W | |||||||
Material | Exterior | Cold-rolled steel with anti-bacteria powder coating. | |||||||||
Interior | High grade melamine board with good acid and alkali resistance function | ||||||||||
Work table | Solid chemical resistant phenolic resin | ||||||||||
Standard Accessory | UV lamp*2, Fluorescent lamp, Water tap, Gas tap, Water sink, Base cabinet, Pipe strap. | ||||||||||
Total load of 2 waterproof sockets: 500W | |||||||||||
4 meters PVC exhaust duct | |||||||||||
Optional Accessory | Active carbon filter | ||||||||||
Gross Weight | 272kg | 302kg | 331kg | 366kg | |||||||
Package | Main Body | 1150*900*1870 mm | 1350*950*1920mm | 1650*950*1890mm | 1950*950 *1900mm | ||||||
Base Cabinet | 1150*900*960mm | 1350*950*900mm | 1650*960*910mm | 1950*960 *910mm | |||||||
Previous: Vertical Laminar Flow Cabinet
Next: FH(X) series fume hood
Standard Accessory:
Fluorescent lamp 1pc
Water tap 1pc
Gas tap 1pc
Water sink 1pc
Base cabinet 1pc
Waterproof sockets 2pcs
4 meters PVC exhaust duct(Diameter:250mm) 1pc
Optional Accessory:
PP work table,epoxy resin board or ceramic board 1pc
Outer centrifugal blower,resistant to strong acid,alkali 1pc
