Click on the image to view the original image
- Type:
- Pressure Steam Sterilization Equipments
- Brand Name:
- BIOBASE
- Model Number:
- BKM-Z18BIII
- Place of Origin:
- Shandong, China
- Instrument classification:
- Class I
- Model:
- BKM-Z18BIII
- Capacity:
- 18L
- Design Pressure:
- -0.1/0.3Mpa
- Design Temp.℃:
- 144
- Temp. Range:
- 105-136
- Chamber Material:
- SS
- Power supply:
- 110/220V10%
- Consumption:
- 2Kw
- Dimensions(WxHxD,mm):
- 585*515*450
- Net Weight (KG):
- 55
- Supply Ability:
- 500 Set/Sets per Month
- Packaging Details
- wooden box
- Port
- Qingdao

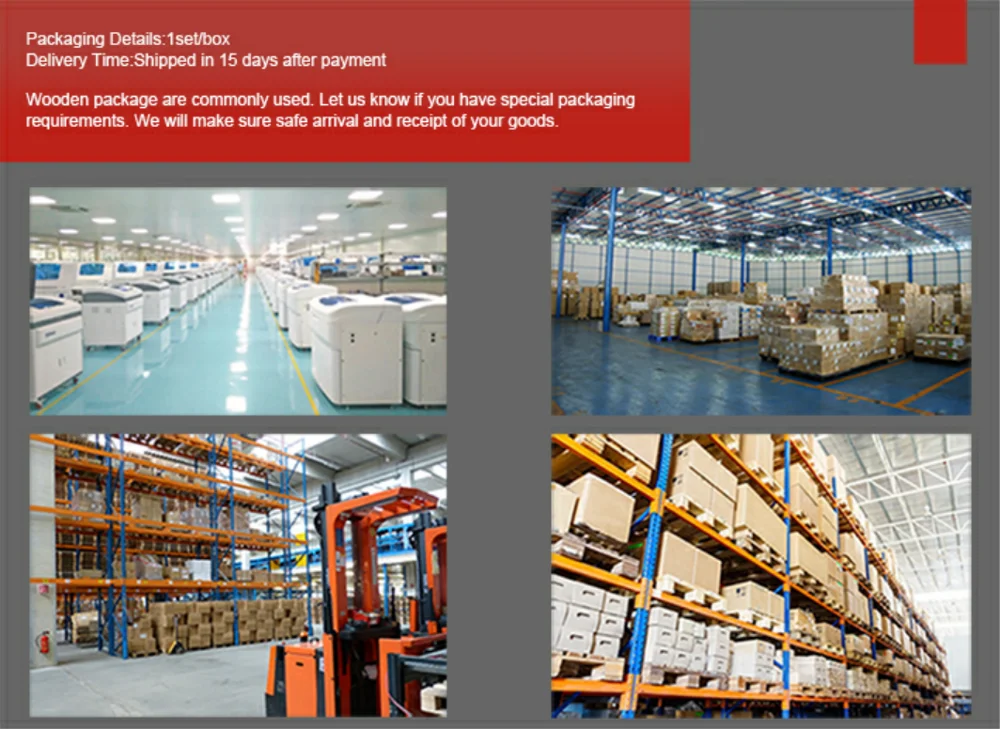

- Picture Example:
![package-img]()
- Lead Time:
Quantity(Sets) 1 - 1 >1 Est. Time(days) 10 To be negotiated
18L/24L/45L Cheap table top autoclave, dental autoclave, vacuum drying autoclave Class B
Product Description of table top autoclave
BKMB(III) series sterilizer is an automatic high temperature and
pressure rapid sterilizer which works with steam as medium. It
can be widely used in department of stomatology and
ophthalmology, operating room, supply room, dialysis room and
other medical institutions. It is unpacked items, solid
instruments, dental hand pieces, endoscopes, implantable
instruments, dressing fabric and rubber tubes, etc.
Build-in open type water tank
The sterilizer adopts easy-clean open type water tank that equipped with water quality monitor to ensure the reliability of steam quality and sterilizer operation .A fully injected water tank can support repeated program running.
Brand-new operation interface
The LCD screen can display temperature, pressure, time, operating status, failure warning and other information. It is convenient for customers to observe the sterilizer running status.
Multiple security protective device
Overhead auto protective device, multiple control and protection for steam generator safe door interlock, double overpressure protection, electronic circuit safety device.
Automatic door
BKM-18/24/45BIII series adopt auto door structure that can effectively prevent scald. BKM-60/80 BIII series door structure adopt multipoint stitching technology to ensure seal reliability .The door equipped with convenient one-button switch.
High-efficiency ultimate vacuum
The sterilizer adopts high-efficiency low noise vacuum system which has excellent effects. The ultimate vacuum value can reach -90KPa or above.
Multiple program types
The system has various programs that include: packed items, unpacked items, custom program, rapid program, BD testing program, vacuum testing program, preheat program and drying program.
High-efficiency steam generator
BKM-18/24/45BIII equipment with build-in instant steam generator. BKM-60/80BIII equipped with build-in energy-storing steam generator.
Other features
0.22um high-efficiency sterilizing filter that guarantees the air is sterile and prevents repeated contamination. All the processes of water injection, pulse vacuum, heating up, sterilization, exhausting and drying are automatic.
Specifications of table top autoclave
Model | BKM-Z18B(III) | BKM-Z24B(III) | BKM-Z45B(III) | BKM-Z60B(III) | BKM-Z80B(III) |
Capacity | 18 L | 24 L | 45 L | 60 L | 80 L |
Design Pressure | -0.1/0.3MPa | ||||
Design Temp. | 144℃ | ||||
Temp. Range | 105-136℃ | ||||
Chamber Material | Medical Stainless steel 304 | ||||
Standard Loading Tray | Type A | Type B | |||
Power Supply | 110/220V±10%, 60/50Hz | 220V±10%, 50/60Hz | |||
Power Consumption | 2 Kw | 2 Kw | 3.8 Kw | 7 Kw | 7 Kw |
Chamber Size(mm) | ?250*350 | ?250*450 | ?316*618 | ?385*595 | ?385*717 |
External Size(mm) | 585*515*450 | 685*515*450 | 830*640*550 | 1002*730*560 | 1002*730*560 |
Packing Size(mm) | 880*720*680 | 980*720*680 | 990*770*785 | 1160*870*795 | 1160*870*795 |
Gross Weight(kg) | 60 | 70 | 80 | 120 | 180 |
Our service
BIOBASE is a professional manufacturer of laboratory products from 1999. Our Main products are Biological Safety cabinet (Class I/II/III), Laminar Flow Cabinet, Fume Hood, Dispensing booth, Clean booth, Autoclave, Drying Oven, Incubator, Microscope, Water purifier, Centrifuge, Medical Refrigerator & low temperature freezer, Biochemistry Analyzer, Reagent, Laboratory Project and relevant laboratory equipment.
About BIOBASE
BIOBASE group, founded in 1999 and been through high and stable development for 15 years, who is now with revenues of one hundred million, 1200 employees in China and abroad offices, 22.4 acres land industry parks and 20000 square meters production base.
The products we manufacture extends to most of the laboratory items and scientific analytical equipments. Our mission is to enable our customers to make the world healthier, cleaner and safer.
BIOBASE group invests in science and technology research, aim to keep impoving products performance and quality as well as develop new products to meet customers wide requirement.
We satisfy our customers by offering comprehensive support, purchase convenience and we are ready to serves more and more BIOBASE users.
BIOBASE group, serving global distributors and its loyal end users, is becoming one of the most important scientific services supplier.
Package & Shipping
With a wooden or cardboard boxes, strong packing, you can choose Ocean shipping,air transport or express.
