Click on the image to view the original image
- Type:
- Boiling Sterilization Apparatus
- Brand Name:
- BIOBASE
- Model Number:
- BKQ-B75 /BKQ-Z75
- Place of Origin:
- Shandong, China
- Instrument classification:
- Class I
- Capacity:
- 75L
- Water Supply Pressure:
- ≥0.2Mpa
- Working Pressure:
- 0-0.14Mpa,controlled by temperature
- Working Temperature:
- RT+5-126℃(or 126C)
- Temperature Fluctuation:
- <1℃
- Power Supply:
- 220V,50/60HZ
- Consumption:
- 3KW
- External Size (L*W*H):
- 700*510*1040mm
- Supply Ability:
- 1000 Unit/Units per Month
- Packaging Details
- wooden box
- Port
- qingdao

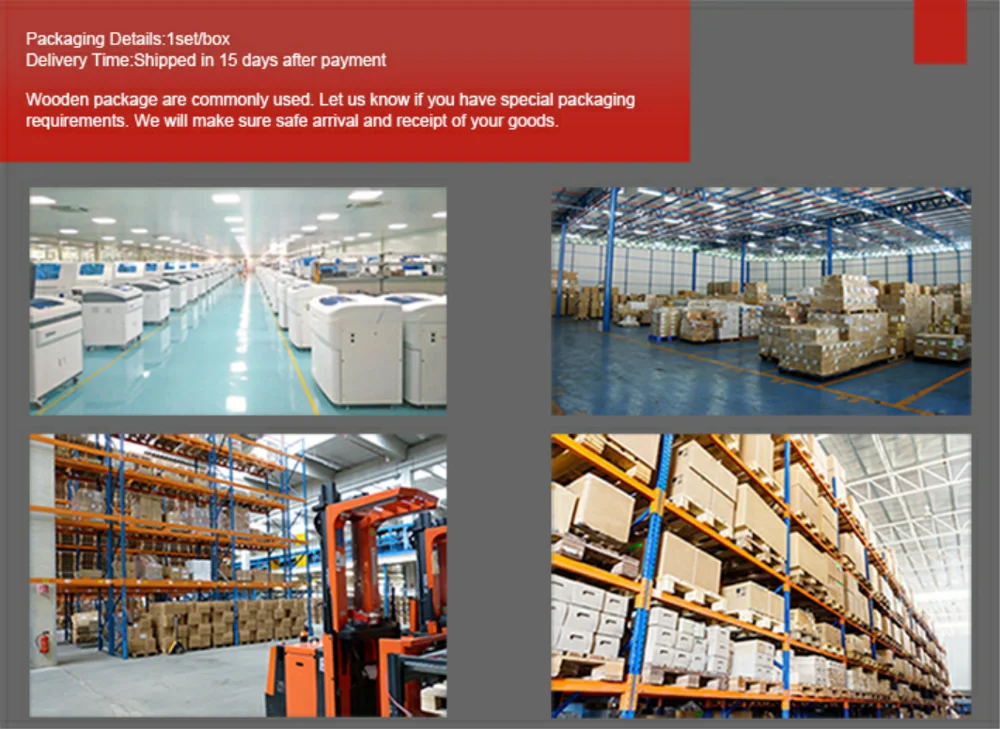

- Picture Example:
![package-img]()
- Lead Time:
Quantity(Units) 1 - 1 >1 Est. Time(days) 10 To be negotiated
Biobase is a professional manufacture of laboratory products from 1999.
We supply a lot kinds of laboratory equipment and medical material.

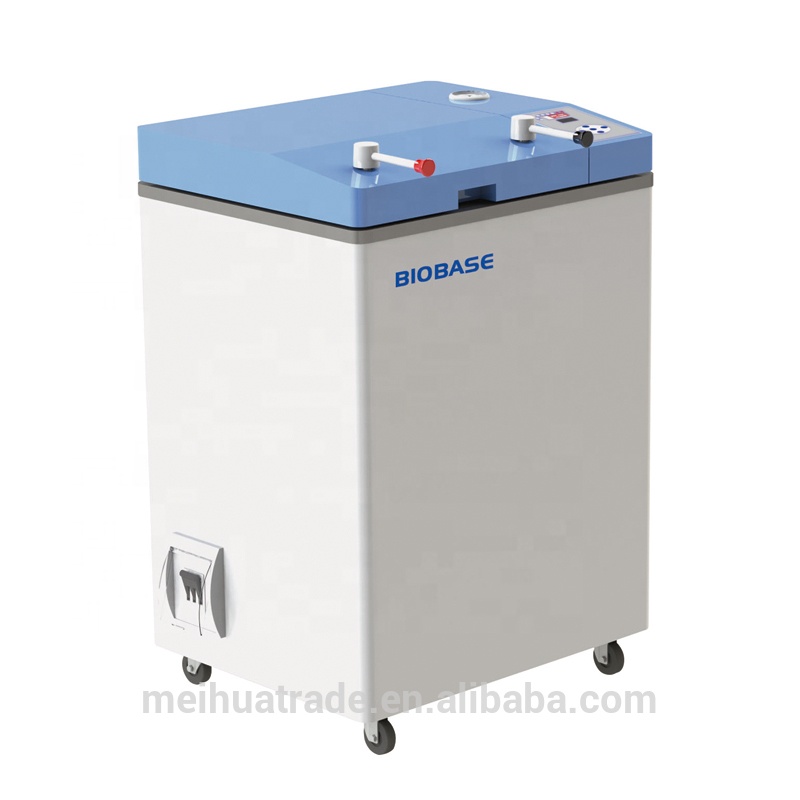

BKQ-Z BKQ-B series Vertical Autoclave
Picture Show
Introduction
BKQ-Z series fully stainless steel vertical pressure autoclave
(30L, 50L, 75L, 100L)
1. Fully stainless steel structure.
2. The cover can be opened easily.
3. Bevel designed control panel, easy to operate.
4. Microprocessor control, LED display
5. Audio and visual alarm for low level water, automatic water supply system.
6. Downward displacement (Gravity-type) ensures a pure steam environment.
7. Over-temperature protection, precision of temperature within±0.5℃
8. Immersion heater ensures a high effective thermal.
Parameters
Model | BKQ- B30 | BKQ- B50 | BKQ-B75 | BKQ- Z30 | BKQ- Z50 | BKQ-Z75 | BKQ-Z100 | |
Capacity | 30L | 50L | 75L | 30L | 50L | 75L | 100L | |
Chamber Size(mm) | Φ388*390 | Φ388*630 | Φ388*740 | Φ388*390 | Φ388*630 | Φ388*740 | Φ388*830 | |
Max Pressure | ≥0.2Mpa | |||||||
Working Pressure | 0.14~0.165Mpa | 0~0.14Mpa,controlled by temperature | ||||||
Working Temp. | 126℃ | RT+5~126℃ | ||||||
Temp.Fluctuation | <2℃ | <1℃ | ||||||
Timing range | / | 1~5999min | ||||||
Power Supply | 220V,50/60HZ | |||||||
Consumption | 3KW | 3.8KW | ||||||
SS Basket | / | 1 pc | 1 pc | / | 1 pc | 1 pc | 1 pc | |
External Size (L*W*H) mm | 700*510 *730 | 700*510 *820 | 700*510 *930 | 700*510 *730 | 700*510 *820 | 700*510 *930 | 700*510 *1040 | |
Package Size (L*W*H) mm | 770*650 *820 | 770*650 *960 | 770*650 *1060 | 770*650 *820 | 770*650 *960 | 770*650 *1060 | 770*650 *1160 | |
Gross Weight | 85kg | 90kg | 100kg | 85kg | 90kg | 100kg | 115kg | |
We are certificated by ISO9001, ISO3458, ISO14001, CE Mark, MET and NSF 49, EN 12469.
Our principle is to provide our perfect service to you.
our target goal is to offer you our excellent service.
With the sustained business conception of “credit is the basis, quality is the first”, we gain the high trust from customers.
BIOBASE group, founded in 1999 and been through high and stable development for 15 years, who is now with revenues of one hundred million, 1200 employees in China and abroad offices, 22.4 acres land industry parks and 20000 square meters production base.
The products we manufacture extends to most of the laboratory items and scientific analytical equipments. Our mission is to enable our customers to make the world healthier, cleaner and safer.
BIOBASE group invests in science and technology research, aim to keep impoving products performance and quality as well as develop new products to meet customers wide requirement.
We satisfy our customers by offering comprehensive support, purchase convenience and we are ready to serves more and more BIOBASE users.
BIOBASE group, serving global distributors and its loyal end users, is becoming one of the most important scientific services supplier.
