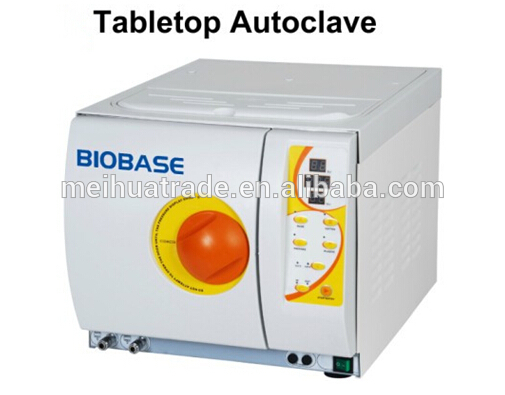

BIOBASE CE Certified 24L Class N Dental Autoclave/ Sterilizer BKM-Z24N with good quality
Autoclaves are equipment for sterilizing widely used in microbiology, medicine, podiatry, tattooing, body piercing, veterinary science, mycology, dentistry, and prosthetics fabrication. They vary in size and function depending on the media to be sterilized.
1. Adopting European N standard, with thermal vacuum and drying functions, it can be used for A-type hollow instruments and solid instruments. Thermodynamic vacuum guarantees elimination of cold air from the cavity and makes sure that reaches the optimal effect of sterilization.
2. Specially design for dental clinic field, it could sterilize 12 pieces hand piece at same time, simply and efficiently.
3. Sliding door design for easy secure operating-for BKM-Z2.
4. Microprocessor control, LCD or LED display and modularized panel for easy operation.
5. Automatic malfunction detection system makes easy maintaining.
| Model | BKM-Z2N | BKM-Z7N | BKM-Z10N | BKM-Z12N | BKM-Z18N | BKM-Z24N |
| Sterilization Class | CLASS N | |||||
| Sterilization Temp. | 121℃, 134℃ | |||||
| Drying procedure | Heating dry | |||||
| Display | High-light LED tube display | |||||
| Testing System | Bowie&Dick, Steam penetration test | |||||
| Control Precision | Temperature: 1℃ | |||||
| Pressure: 0.1bar | ||||||
| Sterilization Data | Optional Mini printer | |||||
| Safety System | Relief valve | |||||
| Hand lock door | ||||||
| Pressure lock system | ||||||
| Pressure or temperature over load protection | ||||||
| Alarm system | ||||||
| Water Supply System | Build-in water tank easy to clean | |||||
| Tray Holder | SS basket, SS shelf | |||||
| Chamber | Medical stainless steel 304 | |||||
| Max working pressure:2.3bar | ||||||
| Min working pressure: -0.9bar | ||||||
| Max temperature: 145℃ | ||||||
| Operation Temp. | 5~40℃ | |||||
| Noise | <50db | |||||
| Water consumption in one cycle | 0.12L~0.16L | 0.16L~0.18L | ||||
| Power supply | 110/220V±10%, 60/50Hz | |||||
| Power consumption | 1200W | 1400W | 1400W | 1400W | 1500W | 1700W |
| Chamber Size(mm) | φ88*175 | φ170*320 | φ192*320 | φ192×340 | φ245×360 | φ245*470 |
| External Size(mm) | 350*284*376 | 540*370*360 | 540*370*360 | 560X450X400 | 560*450*400 | 670*450*400 |
| Packing Size(mm) | 415*345*441 | 615*440*425 | 615*440*425 | 660×525×495 | 660*525*495 | 770*525*495 |
| Net Weight | 26kg | 37kg | 40kg | 43kg | 47kg | 53kg |
Delivery time: 7 days after receive payment.
Payment term: T/T advance.
Warranty: 3 years.
Package: Wooden case.
