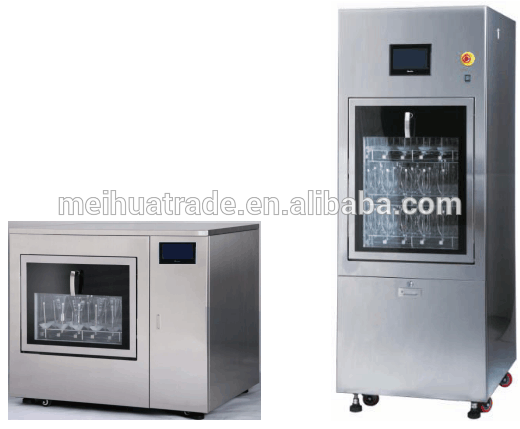

The lab glassware washers integrate programmed cleaning, disinfecting and drying functions to clean all glassware stuff, for beaker, flask, pipette, petri dish, burette, measuring cylinder, test tube etc.
- Features
1. High efficient cleaning system, designed with European reliable pump, optimized spray arm and nozzles, and self-cleaning program;
2. Rapid and efficient drying system, designed with independent air heater, HEPA filter and drying process;
3. Water heating temperature can reach 99℃, while hot air drying temperature can reach 120℃;
4. Professional configuration design—stainless steel for corrosion resistance;reinforced glass window mounted to achieve a clear view on washing process;
5.PLC touch screen control with preset 6 programs(including one customized program)
6. Safety protection—electronic security door lock to prevent unexpected door opening, water & drying air temperature dual control and equipped with emergency switch;
Standard Washing Procedure (can be self-designed by the user)
Pre-cleaning→Washing with cleaner→Rinse→Washing with neutralization→Rinse→Washing with hot water→Drying

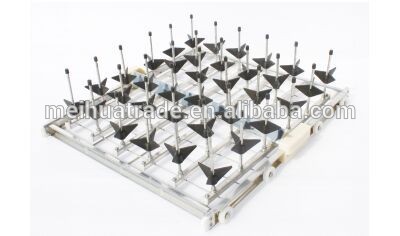

Standard Rack Petri-dish Rack-Upper Beaker Rack Petri-dish Rack-Lower Combined Rack Rubber Tube Rack Pipette Rack Flask Rack Injection Rack
- Models
Model | BK-LW120 | BK-LW220 | BK-LW320 | BK-LW420 |
Capacity(L) | 120 | 220 | 320 | 420 |
Water Consumption/Cycle(L) | 15 | 15 | 18 | 25 |
Inlet Water Pressure(Mpa) | 0.3~0.8 | |||
Noise | ≤50dB | ≤55dB | ≤60dB | |
External &Internal Material | Stainless steel | |||
Power Supply(V/HZ) | 220/50/60 | 220/50/60, 380/50/60 | 380/ 50/60 | 380/50/60 |
Overall Power Consumption (KW) | 6
| 6.5/17 | 18 | 20 |
Power Consumption- Water Washing(KW) | 1.1 | 1.5 | 2.8 | 2.8 |
Power Consumption- Water Heating (KW) | 5 | 5/15 | 15 | 17 |
Power Consumption- Drying (KW) | 2.1 | 3.6 | 3.6 | 3.6 |
Cleaning Racks | 1 pcs | 2pcs | 3pcs | 2pcs |
Washer Chamber Size (W*D*H )(mm) | 600*629*465 | 600*629*658 | 600*629*820 | 688*700*703 |
External Size (L*W*H mm) | 980*740*855 | 790*690*1770 | 790*690*1850 | 1100*900*1950 |
Packing Size (L*W*H mm) | 1080*990*1065 | 990*840*2090 | 990*840*2250 | 1300*1040*2235 |
Gross Weight | 150kg | 330kg | 400kg | 450kg |
Optional Accessories | USB interface, printer ,Cleaning racks | |||
