Home > Products > BIOBASE CE Certified sterilizer BKM-Z45S with good quality and stable performance skype: psyche_lxf
BIOBASE CE Certified sterilizer BKM-Z45S with good quality and stable performance skype: psyche_lxf
Click on the image to view the original image
Product: views:7BIOBASE CE Certified sterilizer BKM-Z45S with good quality and stable performance skype: psyche_lxf
Branch: BIOBASE
Unit Price: Negotiated
Min.Order:
Supply:
Delivery: Shipment within days since the date of payment
Valid until: Long Term
Updated on: 2019-12-03 18:41
  Negotiated
Product Details
Overview
Quick Details
Classification:
Laboratory Centrifuge
Brand Name:
BIOBASE
Model Number:
BKM-Z45S
Place of Origin:
Shandong, China
Volume:
45L
Design Pressure(MPa):
-0.1/0.3MPa
Design Temp.(℃):
144℃
Temp.Range(℃):
105-138℃
Chamber Material:
Medical Stainless steel 304
Power Supply:
220V±10%, 50/60Hz
Consumption:
5.8 Kw
External Size(mm):
830*640*550
Gross Weight(kg):
80
Packing Size(mm):
990*770*785
Supply Ability
Supply Ability:
50000 Unit/Units per Year
Packaging & Delivery
Packaging Details
wooden box
Port
Qingdao, China

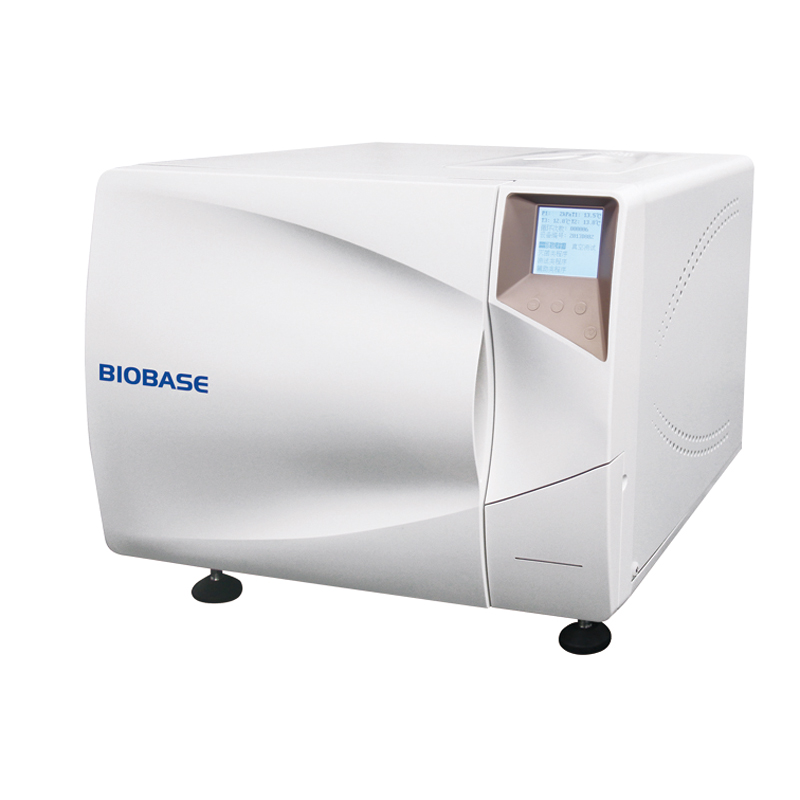

BIOBASE CE Certified pressure rapid sterilizer BKM-Z45S with good quality and stable performance





BKM-BIII series sterilizer is an automatic high temperature and pressure rapid sterilizer which works with steam as medium. It can be widely used in department of stomatology and ophthalmology, operating room, supply room, dialysis room and other medical institutions. It is unpacked items, solid instruments, dental hand pieces, endoscopes, implantable instruments, dressing fabric and rubber tubes, etc.

Product Description





Build-in open type water tank

The sterilizer adopts easy-clean open type water tank that equipped with water quality monitor to ensure the reliability of steam quality and sterilizer operation .A fully injected water tank can support repeated program running.



Brand-new operation interface

The LCD screen can display temperature, pressure, time, operating status, failure warning and other information. It is convenient for customers to observe the sterilizer running status.



Multiple security protective device

Overhead auto protective device, multiple control and protection for steam generator safe door interlock, double overpressure protection, electronic circuit safety device.



Automatic door

BKM-18/24/45BIII series adopt auto door structure that can effectively prevent scald. BKM-60/80 BIII series door structure adopt multipoint stitching technology to ensure seal reliability .The door equipped with convenient one-button switch.



High-efficiency ultimate vacuum

The sterilizer adopts high-efficiency low noise vacuum system which has excellent effects. The ultimate vacuum value can reach -90KPa or above.



Multiple program types

The system has various programs that include: packed items, unpacked items, custom program, rapid program, BD testing program, vacuum testing program, preheat program and drying program.



High-efficiency steam generator

BKM-18/24/45BIII equipment with build-in instant steam generator. BKM-60/80BIII equipped with build-in energy-storing steam generator.



Other features

0.22um high-efficiency sterilizing filter that guarantees the air is sterile and prevents repeated contamination. All the processes of water injection, pulse vacuum, heating up, sterilization, exhausting and drying are automatic.



Model

BKM-Z18BIII

BKM-Z24BIII

BKM-Z45BIII

BKM-Z60BIII

BKM-Z80BIII

Volume

18 L

24 L

45 L

60 L

80 L

Design Pressure(MPa)

-0.1/0.3MPa

Design Temp.(℃)

144℃

Temp.Range(℃)

105-136℃

Chamber Material

06Cr19Ni10 Stainless steel

Power Supply

110/220V±10%, 50/60Hz

Power Supply

2 Kw

2 Kw

3.8 Kw

7 Kw

7 Kw

Chamber Size(mm)(?*L)

φ250*350

φ250*450

φ316*618

φ385*595

φ385*717

Overall Size(mm)(L*W*H)

585*515*450

685*515*450

830*640*550

1002*730*560

1002*730

*560

Net Weight(Kg)

55

65

115

160

180
