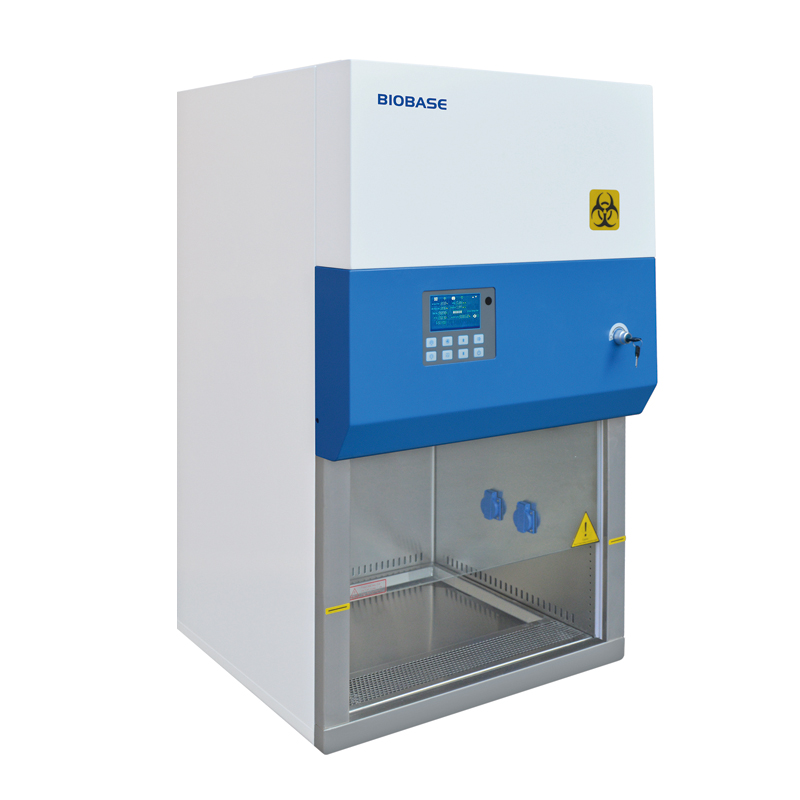

BIOBASE China Good Price Class II A2 Biosafety Cabinet 11231BBC86
ADVANTAGE
1. Small dimension,save space.
2. Centrifugal fan, speed, adjustable; H14 HEPA filter.
3. Large LCD diaplay: Operators can check detailed status of the cabinet, such as inflow and downflow velocity, work area temperature and humidity, filter pressure, UV working time and filter working time, filter life indicator etc.
4. Time reaerve function: This can save 30 minutes waiting time after activating the cabinet and the sterilization time after experiment.
5. Remote control: Each function can be realized 6 meters away from the cabinet by remote control, which can protect the operator under emergency.
6. Motorized front window: The front window is motorized for convenient, one-hand operation.
7. Voice prompt function: Airflow alarm, filter replacing alarm and front window height alarm.
TECHNICAL PARAMETERS
Model | 11231BBC86 |
External Size(W*D*H) | 700*650*1230 mm |
Internal Size(W*D*H) | 600*500*540 mm |
Tested Opening | Safety height: 200mm(8") |
Max Opening | 370 mm(15’’) |
Inflow Velocity | 0.53±0.025 m/s |
Down Flow Velocity | 0.33±0.025 m/s |
HEPA Filter | Two, 99.999% efficient at 0.3μm. Filter life indicator. |
Front Window | Motorized. Two-layer laminated toughened glass ≥ 5mm. Anti UV. |
Noise | EN12469 ≤ 58 dB / NSF49 ≤ 61 dB |
UV Lamp | 15W*1 |
| UV timer, UV life indicator, emission of 253.7 nanometers for most efficient decontamination. |
Fluorescent Lamp | 40W*1 |
Illumination | ≥1000Lux |
Consumption | 500W |
Socket | Two, total load of two sockets: 500W |
Display | LCD display |
Control System | Microprocessor |
Airflow System | 70% air recirculation, 30% air exhaust |
Visual and Audio alarm | Filter replacement, window over height, abnormal air flow velocity. |
Material | Work Zone: 304 stainless steel |
| Main Body: Cold-rolled steel with anti-bacteria powder coating. |
Work Surface Height | 750mm with optional base stand |
Power Supply | AC220V±10%, 50/60Hz; 110V±10%,60Hz |
Standard Accessory | Fluorescent lamp, UV lamp*2, Remote control, Waterproof sockets*2 |

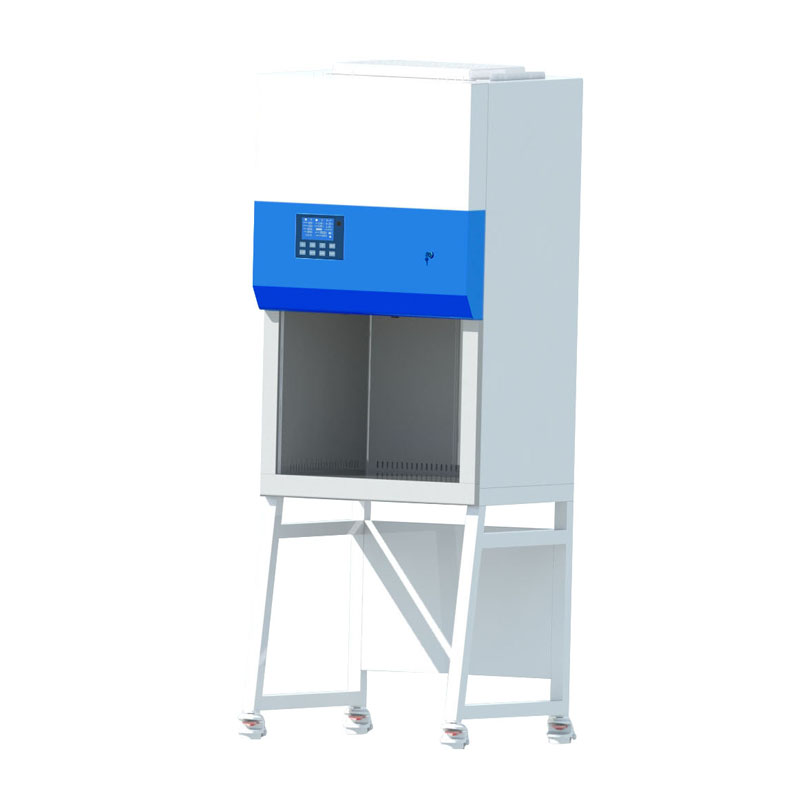

Optional Accessory | Base stand, Universal caster with brake and leveling feet. |
Gross Weight without Base Stand | Wooden box: 164kg Carton:121kg |
Gross weight with Base Stand | Wooden:196kg |
Package Size without Base Stand (W*D*H) | Wooden:860*800*1450mm Carton:820*760*1430mm |
Package Size with Base Stand (W*D*H) | Wooden: 860*960*1450mm |
Founded in 1999, BIOBASE is a world leading high-tech enterprise focusing on Research & Development, manufacturing and management of laboratory and pharmaceutical equipment. Products have served for clients in more than 100 nations.
BIOBASE provides more than 150 different types of product, including Fully Automated Biochemistry Analyzers, Automated Elisa Processors, Biological Safety Cabinets, Fume Hood, Laminar Flow Cabinet, Autoclaves, Refrigerators, Freezers, Incubators, Water Purifiers and etc. The company has been certified by international standards such as ISO 9001, ISO 13485 and ISO 14001. Various products have obtained international certifications like CE, MET, ETL, and have been registered in FDA, RCM, etc.
With more than 2000 employees and 50000 sqm production base, BIOBASE remains dedicated to deliver innovative solutions for the users with a strong R&D team formed by post-graduates and doctors. The service team is adequately qualified to offer training and service on the installation and maintenance for the full range of products. Engineers are experienced on hands-on design, manufacturing, testing and troubleshooting.
