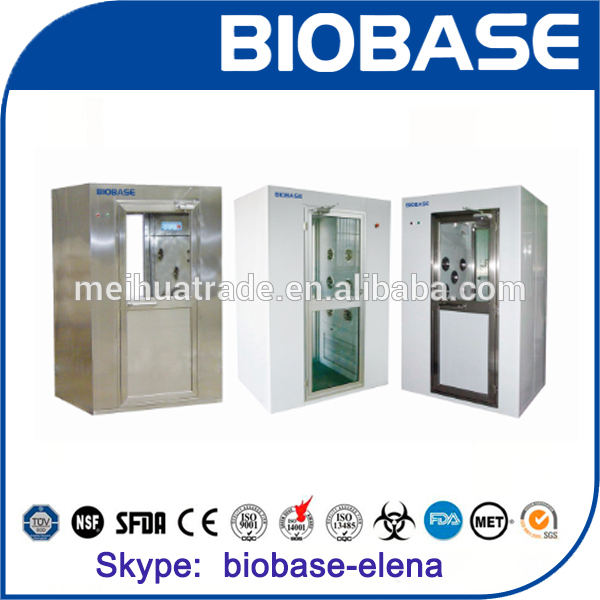

BIOBASE China 0-99 min stainless steel Air Shower clean room LED display with adjustable blowing time
Air shower is a necessary passage for person entering clean room in order to minimized the amount of particulate contaminant, achieve workplace strict clean purificationstandards. Personnel move through the air shower while particulate contaminants are blew off by the clean high speed air. So the duct cannot be brought into clean area.
Features:
1. Photoelectric sensor, automatic blowing.
2. Designed with circulation wind to ensure the cleanness of shower area under non-shower status.
3. Double doors with electric interlock.
4. LED display with adjustable blowing time (0-99 min).
5. HEPA Filter, Class 100 cleanness.
Parameter of Air Shower
Model | AS-1P1S | AS-1P2S | AS-2P2S |
External Size(W*D*H) | 1300*1000*2050mm | 1500*1000*2050mm | 1500*2000*2050mm |
Shower Area Size(W*D*H) | 800*890*1930mm | 800*890*1930mm | 800*1890*1930mm |
HEPA Filter | 99.999% efficiency at 0.3 um | ||
Spraying Wind Speed | 25m/s | ||
Air Shower Time | 0-99 min (adjustable) | ||
No.of SS Nozzles | 12 | 16 | 18 |
Fluorescent Lamp | 20W*1 | 20W*1 | 20W*2 |
Consumption | 1000W | 1500W | 20000W |
Cabinet Material (Optional) | 1. Full cold-rolled steel with powder coating. 2. Internal stainless stell,external with cold-rolled steel 3. Full Stainless Steel. | ||
Door Material (Optional) | 1. Cold-rolled steel with powder coating. 2. Stainless Steel | ||
Chassis | Stainless Steel | ||
Power Supply | 110/220V,50/60Hz | ||
Founded in 1999, BIOBASE is a world leading high-tech enterprise focusing on Research & Development, manufacturing and management of laboratory and pharmaceutical equipment. Products have served for clients in more than 100 nations.
BIOBASE provides more than 150 different types of product, including Fully Automated Biochemistry Analyzers, Automated Elisa Processors, Biological Safety Cabinets, Fume Hood, Laminar Flow Cabinet, Autoclaves, Refrigerators, Freezers, Incubators, Water Purifiers and etc. The company has been certified by international standards such as ISO 9001, ISO 13485 and ISO 14001. Various products have obtained international certifications like CE, MET, ETL, and have been registered in FDA, RCM, etc.
With more than 2000 employees and 50000 sqm production base, BIOBASE remains dedicated to deliver innovative solutions for the users with a strong R&D team formed by post-graduates and doctors. The service team is adequately qualified to offer training and service on the installation and maintenance for the full range of products. Engineers are experienced on hands-on design, manufacturing, testing and troubleshooting.
