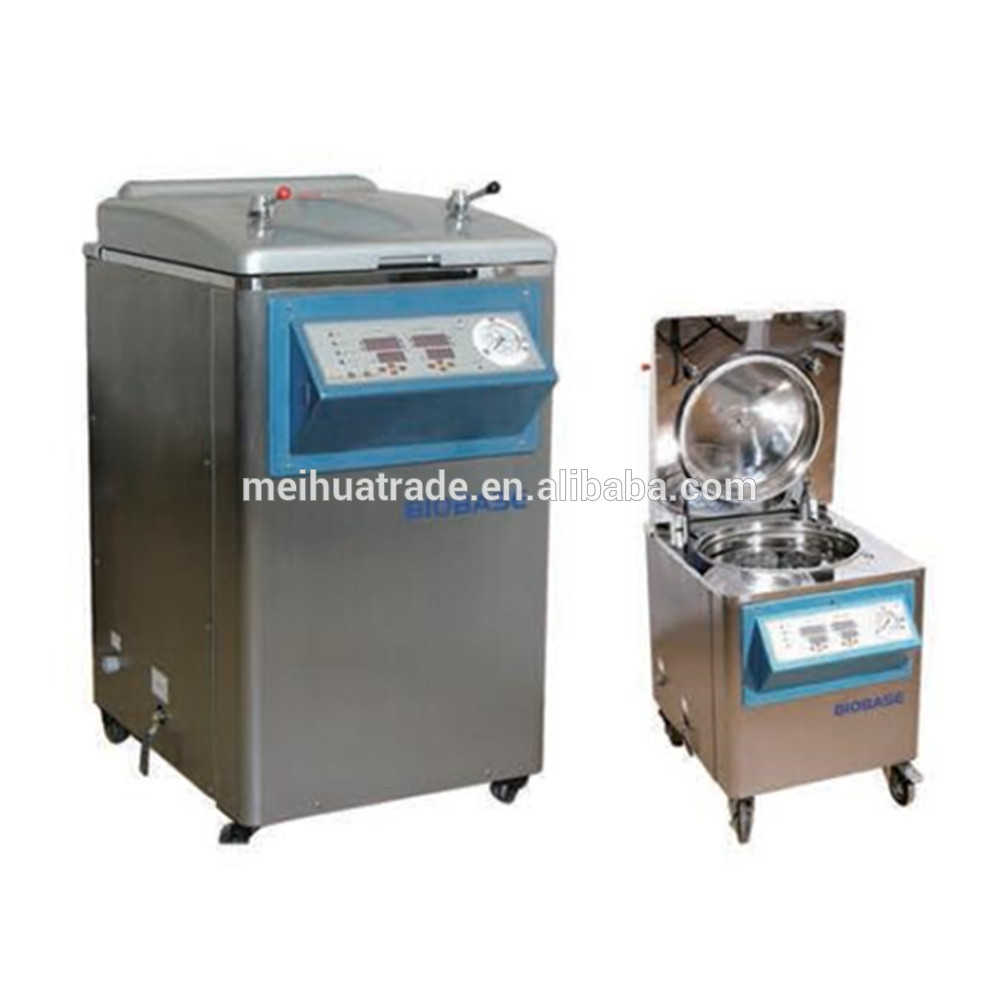

Vertical Autoclave Sterilizer BKQ-B30/B50/B75
Features:
1. Fully stainless steel structure.
2. The cover can be opened easily.
3. Audio and visual alarm for low level water, automatic water
supply system.
4. Downward displacement (Gravity-type) ensures a pure steam environment.
5. Safety valve release air intermittently to ensure stable
pressure and temperature automatically.
6. Pressure meter displays chamber temperature and pressure.
7. Immersion heater ensures a high effective thermal.
TECHNICAL PARAMETERS:
Model | BKQ- B30 | BKQ- B50 | BKQ-B75 | BKQ- Z30 | BKQ- Z50 | BKQ-Z75 | BKQ-Z100 | ||
Capacity | 30L | 50L | 75L | 30L | 50L | 75L | 100L | ||
Chamber Size(mm) | Φ388*390 | Φ388*630 | Φ388*740 | Φ388*390 | Φ388*630 | Φ388*740 | Φ388*830 | ||
Max Pressure | ≥0.2Mpa | ||||||||
Working Pressure | 0.14~0.165Mpa | 0~0.14Mpa,controlled by temperature | |||||||
Working Temp. | 126℃ | RT+5~126℃ | |||||||
Temp.Fluctuation | <2℃ | <1℃ | |||||||
Timing range | / | 1~5999min | |||||||
Power Supply | 220V,50/60HZ | ||||||||
Consumption | 3KW | 3.8KW | |||||||
SS Basket | / | 1 pc | 1 pc | / | 1 pc | 1 pc | 1 pc | ||
External Size (L*W*H) mm | 700*510 *730 | 700*510 *820 | 700*510 *930 | 700*510 *730 | 700*510 *820 | 700*510 *930 | 700*510 *1040 | ||
Package Size (L*W*H) mm | 770*650 *820 | 770*650 *960 | 770*650 *1060 | 770*650 *820 | 770*650 *960 | 770*650 *1060 | 770*650 *1160 | ||
Gross Weight | 85kg | 90kg | 100kg | 85kg | 90kg | 100kg | 115kg | ||
Other Models:
Packaging Details:
Wooden case or catron package.
Delivery Detail:
15 days after payment confirmed.
