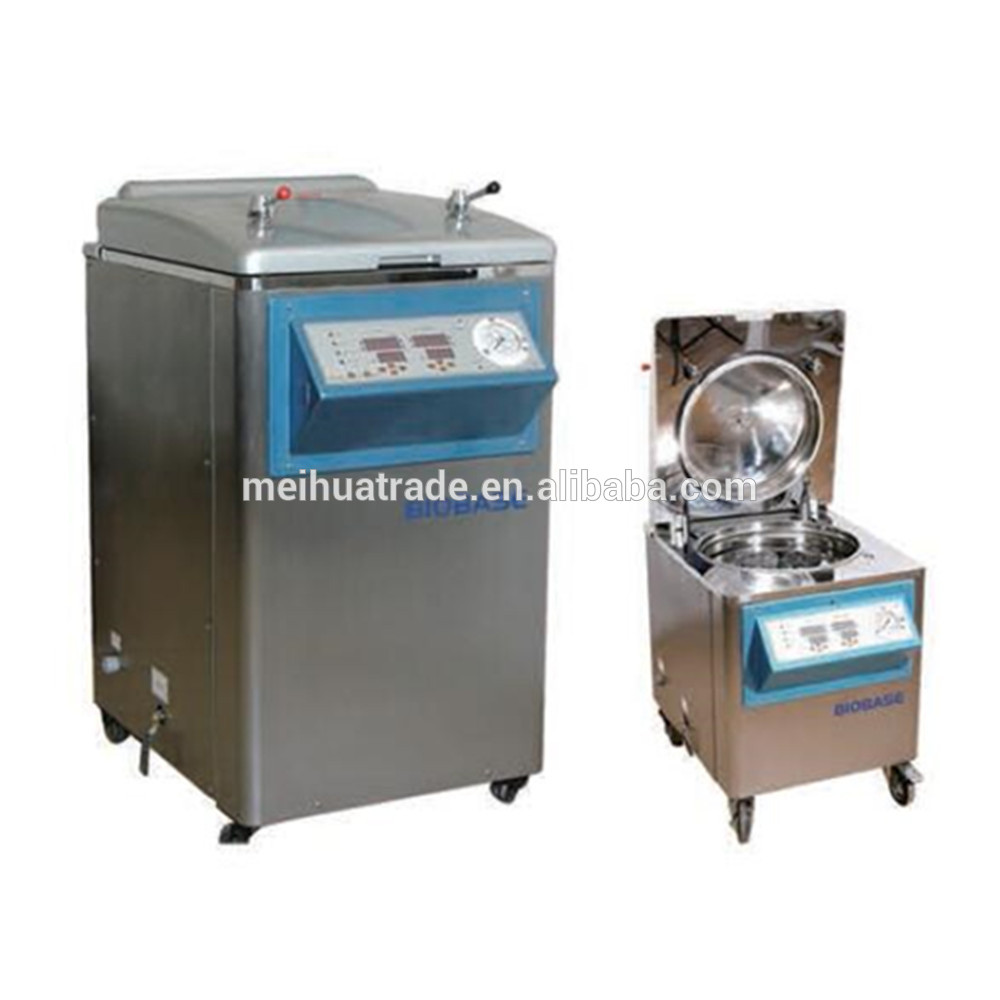

Vertical Autoclave Sterilizer BKQ- Z30/Z50 / Z75 / Z100
Features:
1. Fully stainless steel structure.
2. The cover can be opened easily.
3. Audio and visual alarm for low level water, automatic water
supply system.
4. Downward displacement (Gravity-type) ensures a pure steam environment.
5. Safety valve release air intermittently to ensure stable
pressure and temperature automatically.
6. Pressure meter displays chamber temperature and pressure.
7. Immersion heater ensures a high effective thermal.
TECHNICAL PARAMETERS:
Model | BKQ- B30 | BKQ- B50 | BKQ-B75 | BKQ- Z30 | BKQ- Z50 | BKQ-Z75 | BKQ-Z100 | |
Capacity | 30L | 50L | 75L | 30L | 50L | 75L | 100L | |
Chamber Size(mm) | Φ388*390 | Φ388*630 | Φ388*740 | Φ388*390 | Φ388*630 | Φ388*740 | Φ388*830 | |
Max Pressure | ≥0.2Mpa | |||||||
Working Pressure | 0.14~0.165Mpa | 0~0.14Mpa,controlled by temperature | ||||||
Working Temp. | 126℃ | RT+5~126℃ | ||||||
Temp.Fluctuation | <2℃ | <1℃ | ||||||
Timing range | / | 1~5999min | ||||||
Power Supply | 220V,50/60HZ | |||||||
Consumption | 3KW | 3.8KW | ||||||
SS Basket | / | 1 pc | 1 pc | / | 1 pc | 1 pc | 1 pc | |
External Size (L*W*H) mm | 700*510 *730 | 700*510 *820 | 700*510 *930 | 700*510 *730 | 700*510 *820 | 700*510 *930 | 700*510 *1040 | |
Package Size (L*W*H) mm | 770*650 *820 | 770*650 *960 | 770*650 *1060 | 770*650 *820 | 770*650 *960 | 770*650 *1060 | 770*650 *1160 | |
Gross Weight | 85kg | 90kg | 100kg | 85kg | 90kg | 100kg | 115kg | |
Other Models:
Packaging Details:
Wooden case or carton package.
Delivery Detail:
within 15 days after payment confirmed.
BIOBASE group, founded in 1999 and been through high and stable development for 15 years, who is now with revenues of one hundred million, 1200 employees in China and abroad offices, 22.4 acres land industry parks and 20000 square meters production base.
The products we manufacture extends to most of the laboratory items and scientific analytical equipments. Our mission is to enable our customers to make the world healthier, cleaner and safer.
BIOBASE group invests in science and technology research, aim to keep impoving products performance and quality as well as develop new products to meet customers wide requirement.
We satisfy our customers by offering comprehensive support, purchase convenience and we are ready to serves more and more BIOBASE users.
Main products:
NSF model Biological Safety Cabinet, New Model Biological Safety Cabinet, Biochemistry Analyzer, ELISA; Work Station; Water Purifying System, Drying oven, Incubator, Refrigerator and freezer, Autoclave, Clean booth, Dispensing booth, Pathological sampling bench, filters etc.

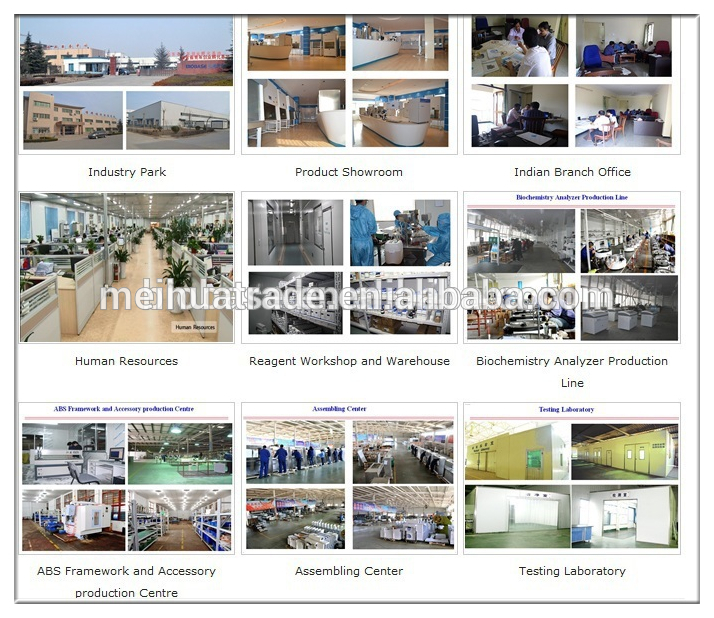

Production Line:
