Horizontal Pulse Vacuum Steam Sterilizer Autoclave BKQ-Z100(H)
INTRODUCTION:
It can be widely used in department of stomatology and ophthalmology, operating room and other medical institutions. It is suitable for all wrapped or unwrapped solid instrument, A-class cavity instrument (dental hand-pieces and endoscopes),implantable instrument, dressing fabric and rubber tubes, etc.
FEATURES:
1. Built-in efficient steam generator, microcomputer temperature control.
2. Equipped with printer to print date, time and process parameters.
3. Prefect four-level authority management system to avoid mis-operation.
4. LCD displays temperature, pressure, time, running status, failure and warning code.
5. Sterilization programs for fabric, instrument, rubber, liquid, cavity, B&D test, PCD test and
leakage test.
6. Intelligent drying system to guarantee the residual humidity of instrument and dressing no more than 0.2% and 1% respectively.
7. Overheat auto protection device, dual door safety lock device, over pressure relief valve, short circuit protection, and overpressure protection.

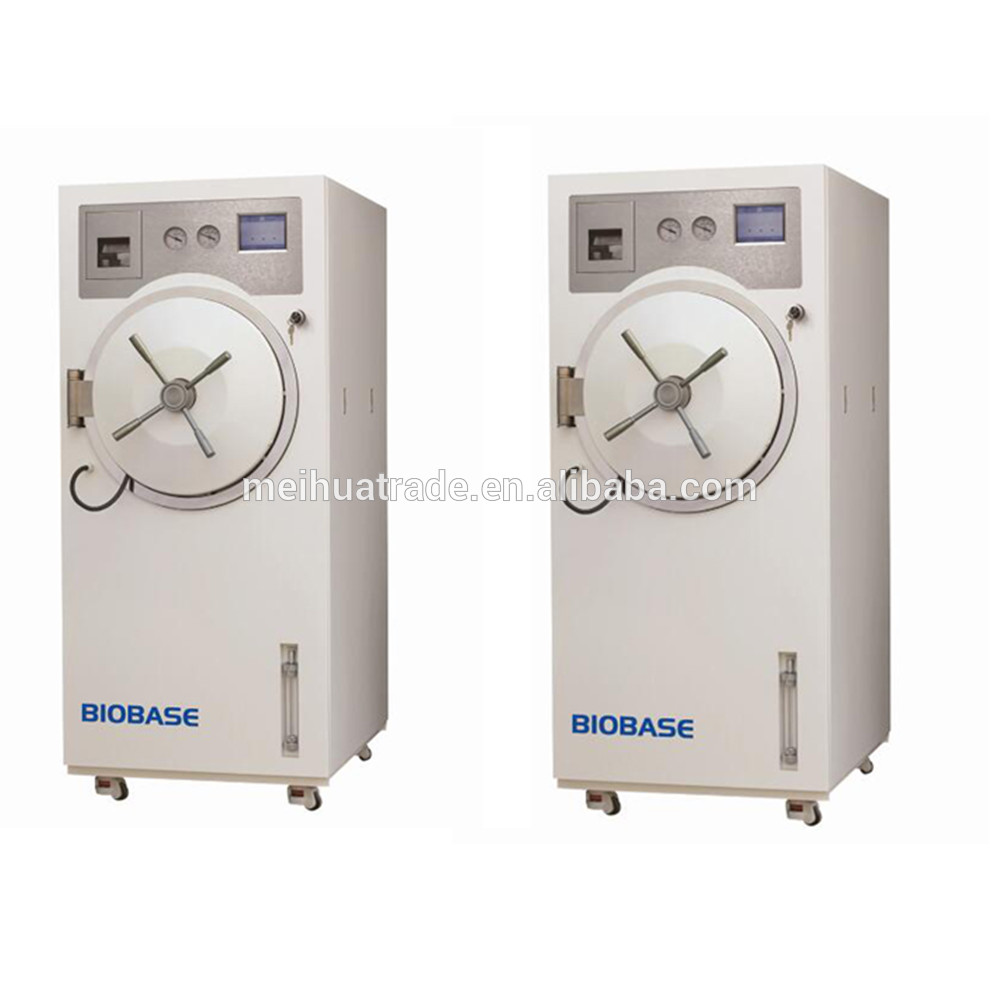

Sample picture:
TECHNICAL PARAMETERS:
Model | BKQ-Z100H | BKQ-Z150H | BKQ-Z200H | BKQ-Z300H | |||
Capacity | 100L | 135L | 185L | 300L | |||
Chamber Size | φ380*710mm | φ500*710mm | φ500*950mm | φ632*1000mm | |||
Chamber material | 304 medical stainless steel | ||||||
Max working pressure | 0.23Mpa | ||||||
Vacuum limit | -0.08MPa | ||||||
Working temp | 105~136℃ | ||||||
Temp accuracy | ±0.1℃ | ||||||
Power consumption | 11kw | 17kw | |||||
Power supply | 380V, 50HZ | ||||||
External size(mm) | 1000*679*1600 | 1110*750*1742 | 1350*750*1742 | 1400*890*1780 | |||
Packaging size(mm) | 1260*820*1918 | 1370*890*2060 | 1610*890*2060 | 1660*1030*2100 | |||
Gross weight(kg) | 310 | 470 | 540 | 830 | |||
Other Models:
Packaing Details:
Wooden case or carton package.
Delivery Detail:
7~25 days after payment confirmed.
BIOBASE group, founded in 1999 and been through high and stable development for 15 years, who is now with revenues of one hundred million, 1200 employees in China and abroad offices, 22.4 acres land industry parks and 20000 square meters production base.
The products we manufacture extends to most of the laboratory items and scientific analytical equipments. Our mission is to enable our customers to make the world healthier, cleaner and safer.
BIOBASE group invests in science and technology research, aim to keep impoving products performance and quality as well as develop new products to meet customers wide requirement.
We satisfy our customers by offering comprehensive support, purchase convenience and we are ready to serves more and more BIOBASE users.
Main products:
NSF model Biological Safety Cabinet, New Model Biological Safety Cabinet, Biochemistry Analyzer, ELISA; Work Station; Water Purifying System, Drying oven, Incubator, Refrigerator and freezer, Autoclave, Clean booth, Dispensing booth, Pathological sampling bench, filters etc.

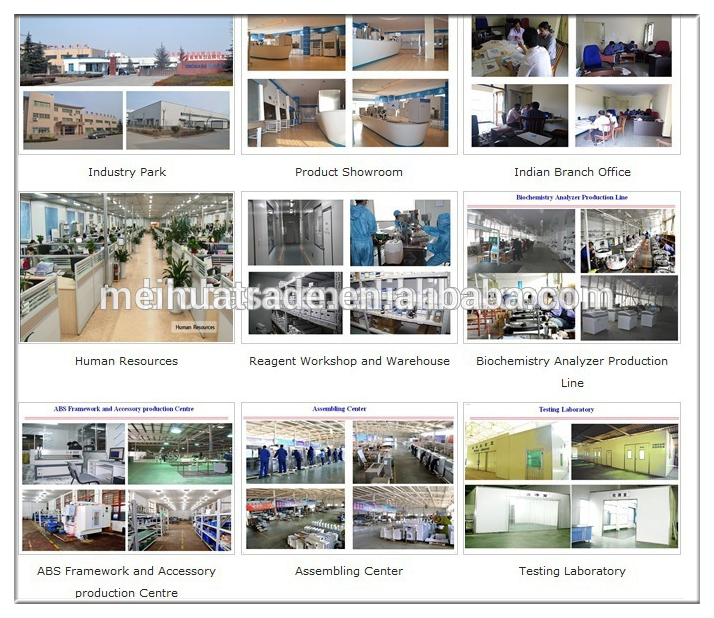

Production Line:
Exhibition:
Thanks for your Visiting, welcome to inquiry for special offer!
Wendy Shang
Sales Manager of Biobase China
