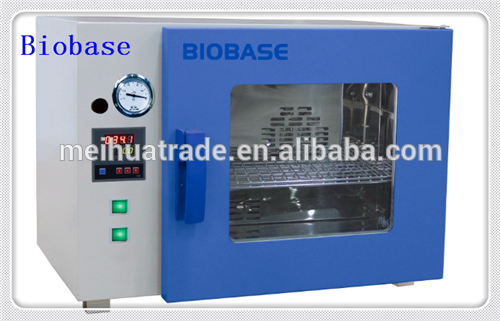

PID Automatical Microprocessor Laboratory Medical
Vacuum Drying Oven with LED Display
Features of Vacuum Drying Oven
1. PID microprocessor temperature control with LED display.
2. Polished stainless steel inner chamber.
3. Vacuum degree is automatically controlled (for BOV-90V/BOV-215V/ BOV-90VL/ BOV-215VL)
4. Silicon rubber seal ring ensures the high vacuum degree in the chamber.
5. Tempered double-layer glass door ensures the operation safety.
6. Inert gas can be filled in the chamber. (Inert gas pressure is not higher than 0.1Mpa when filling in).
(for BOV-90VL/BOV-215VL)
7. The vacuum is controlled by microprocessor controller with digital display.(for BOV-90VL/BOV-215VL)
8. The working program can be cycled for 99 times.(for BOV-90VL/BOV-215VL)
9. The vacuum pump is standard accessory(for BOV-90V/BOV-215V/ BOV-90VL/BOV-215VL)

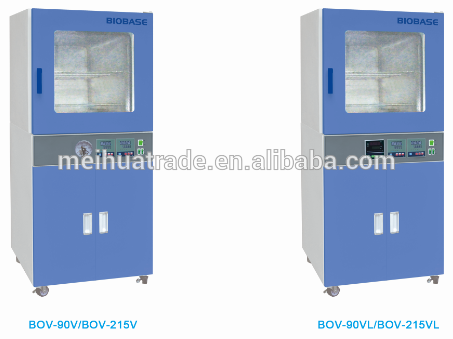

Model | BOV-30V | BOV-50V | BOV-90V | BOV-215V | BOV-90VL | BOV-215VL | |
Capacity | 25L | 50L | 90L | 215L | 90 L | 215 L | |
Temp. Range | 50~200°C | 50~250°C | 50~200°C | ||||
Temp. Fluctuation | ±1°C | ||||||
Vacuum Degree | <133 Pa | ||||||
Vacuum Control | / | Automatically; Include one vacuum meter | Automatically; Microprocessor controller with digital display | ||||
Shelves No. |
1 pc
| 2 pcs | 2 pcs | 3 pcs | 2 pcs | 3 pcs | |
Power Consumption | 500W | 1400W | 1600W | 2200W | 1600W | 2200W | |
Power Supply | 220V/110V±10%,50/60Hz | 220V±10%,50/60Hz | 220V/110V±10%,50/60Hz | 220V±10%,50/60Hz | |||
Internal Size (W*D*H) mm | 300*300*280 | 420*350*370 | 450*450*450 | 560*600*640 | 450*450*450 | 560*600*640 | |
External Size (W*D*H) mm | 580*570*450 | 710*590*530 | 660*610*1400 | 760*720*1670 | 660*610*1400 | 760*720*1670 | |
Packing Size (W*D*H) mm | 700*640*600 | 820*700*690 | 790*750*1570 | 900*850*1930 | 790*750*1570 | 900*850*1930 | |
Gross Weight (kg ) | 50 | 106 | 155 | 195 | 155 | 195 | |
