Click on the image to view the original image

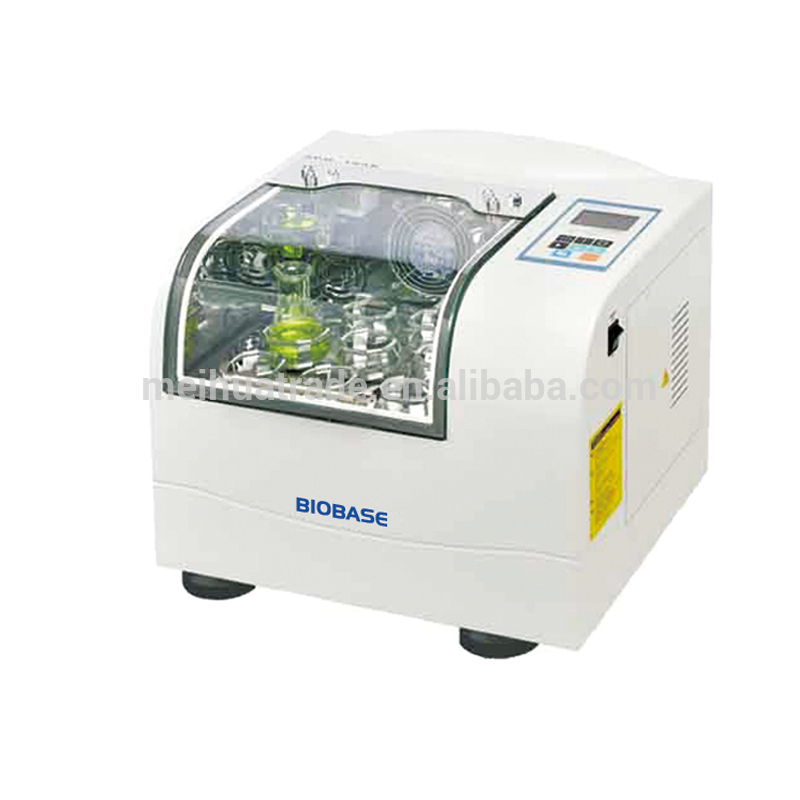

Small Capacity Thermostatic Soft Shaking Incubator
with LCD Display
Features of Small Capacity Thermostatic Soft Shaking Incubator
1. Soft shaking mode, stable and reliable operation.
2. Audio and visual alarm for over-temperature, PID controller.
3. Adopting unique design to ensure the tank cover can open and close steadily.
4. With the function of memory and recovery, avoid the cumbersome operation.
5. Large LCD Display with back light can display both the setting parameters and the measured parameters
6. Big toughened glass window, can observe the working condition completely.
7. Optional accessories: UV lamp, humidity controller, inlet air pipe, light system, etc.
Model | BJPX-103B | BJPX-100B | BJPX-200B | ||
Controller | PID | ||||
Display | LCD | ||||
CirculationMode | Forced convection | ||||
ShakingMode | Rotaryshaking | ||||
DriveMode | Unishaft drive | ||||
Temp. Range | RT+5℃~60℃ | 4℃~60℃ | |||
Temp.Accuracy | ±0.1℃ | ||||
Temp.Uniformity | ±0.25℃ | ||||
Rotating Speed | 30~400 rpm | ||||
Rotating Accuracy | ±1rpm | ||||
Vibration Range | Φ25mm | ||||
Refrigerant | / | CFC-Free, R134a | |||
Cooling Consumption | / | 118W | |||
Heating Consumption | 150W | 400W | |||
Timing Range | 0~500 hours | ||||
ShakingPlate Size | 260*260 mm | 400*370mm | 420*400 mm | ||
Standard Capacity | 100ml*9 | 50ml*4, 100ml*4 250ml*3 500ml*3 | 50ml*5 100ml*5 250ml*4 500ml*3 | ||
Max. Capacity | 50ml*9 100ml*9 250ml*5 | 50ml*16 100ml*16 250ml*12 500ml*9 1000ml*5 | 50ml*25 100ml*25 250ml*16 500ml*9 1000ml*9 2000ml*5 | ||
InternalMaterial | Mirror stainless steel | ||||
ExternalMaterial | ABS | ||||
SafetyFunction | Audio and visual alarm for over-temperature; Alarm for over-speeds; Independent over-temperature protector; Shutdown protection for door opening; Leakage or over-current protection. | ||||
Consumption | 280W | 490W | 580W | ||
Power Supply | AC110V/220V±10%,50/60HZ | ||||
External Size (W*D*H)(mm) | 440*420*420 | 610*610*510 mm | 700*740*560mm | ||
Package Size (W*D*H)(mm) | 570*570*590 | 710*710*660mm | 800*840*710mm | ||
Gross Weight(kg) | 50 | 85 | 130 | ||
