BIOBASE China 70% air recirculation and 30% air exhaust class ii biological safety cabinet with HEPA Filter
Introduction of class ii biological safety cabinet
Three protection: operator, sample and environment.
Airflow system: 70% air recirculation, 30% air exhaust
A2 Cabinet is suitable for working with microbiological research in the absence of volatile or toxic chemicals and radionuclide.
Feature of class ii biological safety cabinet
LCD display
Large Digital LCD displsy is easy to monitor all the safety parameters at a glance and ergonomically sized controlpanel improves user interface.
Work Zone
Work zone is made of 304 stainless steel, is surround by negative pressure.
Waterproof Socket
2 waterproof sockets are located in the side panel for optimum convenience of using small devices inside the cabinet.

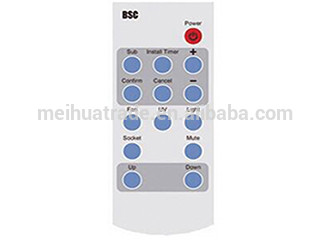

Remote Control
All functions can be realized with it, making the operation much easier and convenient.

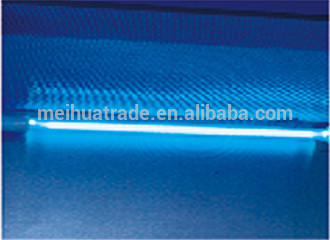

UV Lamp
Emission of 253.7 nanometers for most efficient decontamination.
1. Small dimension,save space.
2. Centrifugal fan, speed, adjustable; H14 HEPA filter.
3. Large LCD diaplay: Operators can check detailed status of the cabinet, such as inflow and downflow velocity, work area temperature and humidity, filter pressure, UV working time and filter working time, filter life indicator etc.
4. Time reaerve function: This can save 30 minutes waiting time after activating the cabinet and the sterilization time after experiment.
5. Remote control: Each function can be realized 6 meters away from the cabinet by remote control, which can protect the operator under emergency.
6. Motorized front window: The front window is motorized for convenient, one-hand operation.
7. Voice prompt function: Airflow alarm, filter replacing alarm and front window height alarm.
Parameter of class ii biological safety cabinet
Model | 11231BBC86 |
External Size(W*D*H) | 700*650*1230 mm |
Internal Size(W*D*H) | 600*500*540 mm |
Tested Opening | Safety height: 200mm(8") |
Max Opening | 370 mm(15’’) |
Inflow Velocity | 0.53±0.025 m/s |
Down Flow Velocity | 0.33±0.025 m/s |
HEPA Filter | Two, 99.999% efficient at 0.3μm. Filter life indicator. |
Front Window | Motorized. Two-layer laminated toughened glass ≥ 5mm. Anti UV. |
Noise | EN12469 ≤ 58 dB / NSF49 ≤ 61 dB |
UV Lamp | 15W*1 |
| UV timer, UV life indicator, emission of 253.7 nanometers for most efficient decontamination. |
Fluorescent Lamp | 40W*1 |
Illumination | ≥1000Lux |
Consumption | 500W |
Socket | Two, total load of two sockets: 500W |
Display | LCD display |
Control System | Microprocessor |
Airflow System | 70% air recirculation, 30% air exhaust |
Visual and Audio alarm | Filter replacement, window over height, abnormal air flow velocity. |
Material | Work Zone: 304 stainless steel |
| Main Body: Cold-rolled steel with anti-bacteria powder coating. |
Work Surface Height | 750mm with optional base stand |
Power Supply | AC220V±10%, 50/60Hz; 110V±10%,60Hz |
Standard Accessory | Fluorescent lamp, UV lamp*2, Remote control, Waterproof sockets*2 |
Optional Accessory | Base stand, Universal caster with brake and leveling feet. |
Gross Weight without Base Stand | Wooden box: 164kg Carton:121kg |
Gross weight with Base Stand | Wooden:196kg |
Package Size without Base Stand (W*D*H) | Wooden:860*800*1450mm Carton:820*760*1430mm |
Package Size with Base Stand (W*D*H) | Wooden: 860*960*1450mm |
