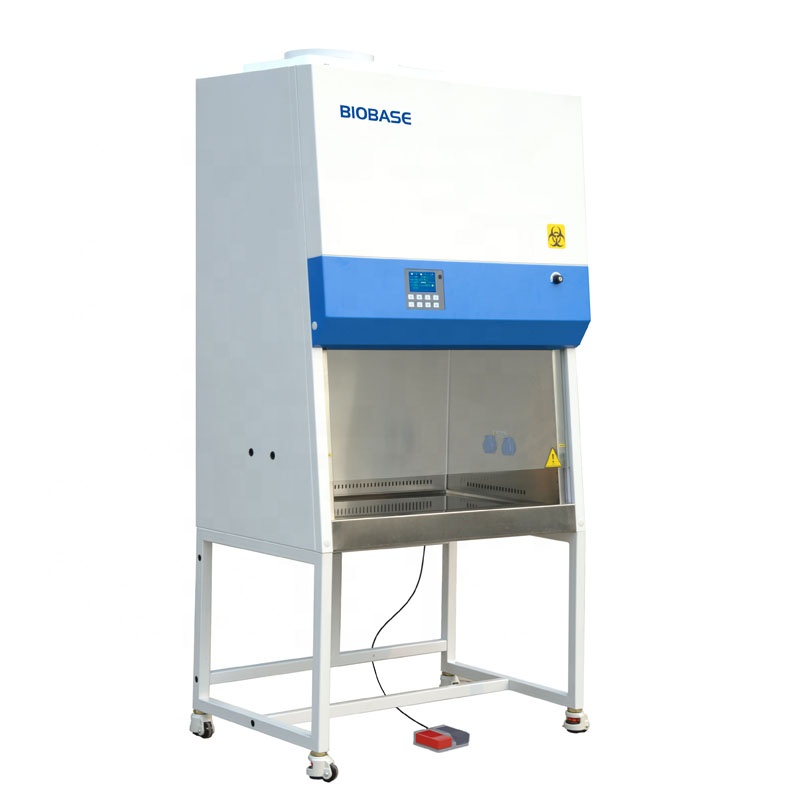

BIOBASE China Class II A2 Biosafety Cabinet -- BSC-1500II A2-X
Three protection: operator, sample and environment.
Airflow system: 70% air recirculation, 30% air exhaust
A2 Cabinet is suitable for work with microbiological research in the absence of volatile or toxic chemicals and radionuclide.
Advantage:
1. Motorized Front Window.
2. Time Reserve Function.
3. HEPA Filter life and UV Life indicator.
4. Automatic air speed adjustable with filter block.
5. Work area surrounded by negative pressure, it can ensure maximum safety in work area.
6. Audio and visual alarm (Filter replacement, Window over height, abnormal Air flow velocity etc).
7. Most accessories are standard. No need to pay more, save your money.
8. Remote Control. All functions can be realized with it, making the operation much easier and more convenient.
9. Interlock Function: UV lamp and front window; UV lamp and blower, fluorescent lamp; Blower and front window.
Model | BSC-1500IIA2-X |
Internal Size (W*D*H) | 1350*600*660mm |
External Size (W*D*H) | 1500*750*2250mm |
Tested Opening | Safety Height 200 mm |
Inflow Velocity | 0.53±0.025 m/s |
| Max Opening | 500mm |
| Downflow Velocity | 0.33±0.025 m/s |
HEPA Filter | Two, 99.999% efficient at 0.3 um. Filter life indicator. |
Front Window | Motorized. Two-layer laminated toughened glass ≥ 5mm. Anti UV. |
Noise | EN12469 ≤ 58 dB / NSF49 ≤ 61 dB |
UV Lamp | 30W*1 |
UV timer, UV life indicator, emission of 253.7 nanometers for most efficient decontamination. | |
Fluorescent Lamp | 21W*2 |
Illumination | ≥1000Lux |
Consumption | 760W |
Waterproof Sockets | Two, total load of two sockets: 500W |
Display | LCD display: exhaust filter and downflow filter pressure, filter and UV lamp working time, inflow and downflow velocity, filter life, humidity and temperature, system working time etc. |
Control System | Microprocessor |
Airflow System | 70% air recirculation, 30% air exhaust |
Visual and audio alarm | Filter replacement, window over height, abnormal air flow velocity. |
Material
| Work Table: Stainless steel; Back side:Cold-rolled steel |
Two sides: Toughened glass | |
Main Body: Cold-rolled steel with anti-bacteria powder coating. | |
Work Surface Height | 750mm |
Caster | Universal caster with brake and leveling feet |
Power Supply | 110/220V±10%, 60/50Hz |

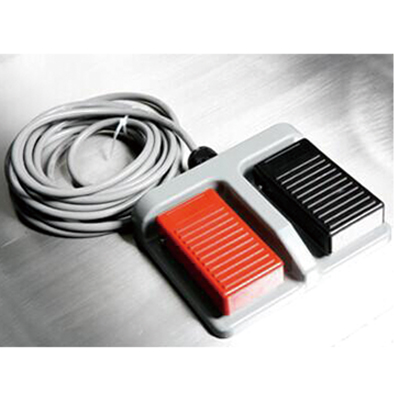

Standard Accessory | Fluorescent lamp,UV lamp*2 ,Base stand, Remote control, Foot switch, Drain valve, Waterproof sockets*2 |
Optional Accessory | Water and gas tap |
Gross Weight | 316kg |
Package Size (W*D*H)mm | 1630× 1000× 1820mm |
