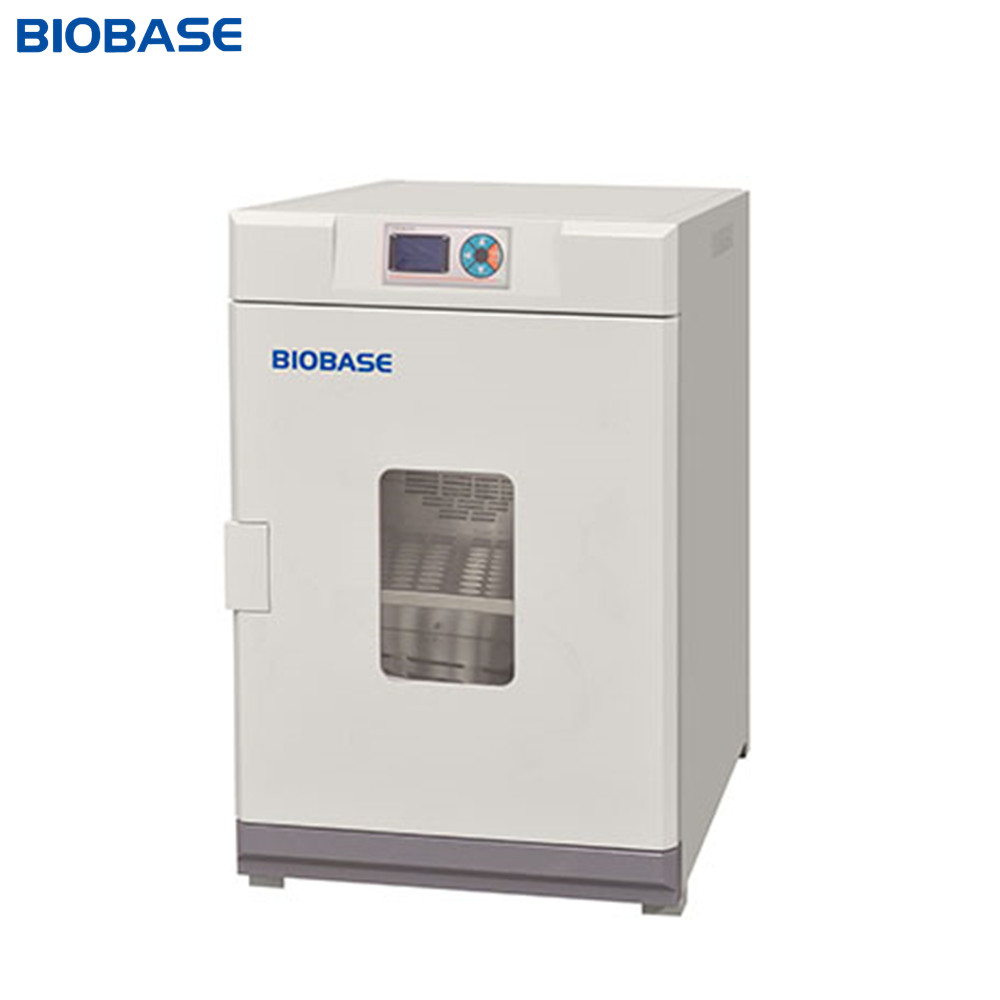

Features of forced air drying oven:
Stainless steel inner chamber, round angle structure, adjustable shelves.
PID microprocessor intelligent temperature controller.
*External material: cold-rolled steel with anti-bacteria powder coating.
*Stainless steel inner chamber, round angle structure, adjustable shelves.
*Double-layer glass observation window, adjustable airtight buckle lock.
*PID microprocessor intelligent temperature controller.
*Over-temperature protection.
Technical parameters of forced air drying oven:
Model | BOV-V30F | BOV-V35F | BOV-V45F | BOV-V65F | BOV-V70F | BOV-V125F |
Capacity | 30L | 35L | 45L | 65L | 70L | 125L |
Temp. Range | RT+10~300℃ | RT+10~250℃ | RT+10~300℃ | RT+10~300℃ | RT+10~250/ 300℃ | RT+10~300℃ |
Temp. Precision | 0.1℃ | |||||
Temp. Fluctuation | ±0.5℃ | |||||
Ambient Temp. | 5~40℃ | |||||
Timing Range | 1~9999min | |||||
Shelves No. | 2 pcs | |||||
Power Consumption | 800W | 550W | 1200W | 1600W | 1050W | 2300W |
Power Supply | 220V±10%, 50/60Hz; | 220V/110V±10%, 50/60Hz; | 220V±10%, 50/60Hz; | 220V±10%, 50/60Hz; | 220V/110V±10%, 50/60Hz; | 220V±10%, 50/60Hz; |
Internal Size (W*D*H)mm | 310*310*310 | 340*320*320 | 350*350*350 | 400*360*450 | 400*350*500 | 500*450*550 |
External Size (W*D*H)mm | 460*510*695 | 620*530*490 | 500*550*735 | 540*550*840 | 550*550*860 | 636*680*915 |
Packing Size (W*D*H)mm | 550*570*765 | 640*615*790 | 620*585*800 | 640*640*905 | 680*680*990 | 730*720*1000 |
Gross Weight(kg) | 51 | 55 | 56 | 61 | 75 | 71 |

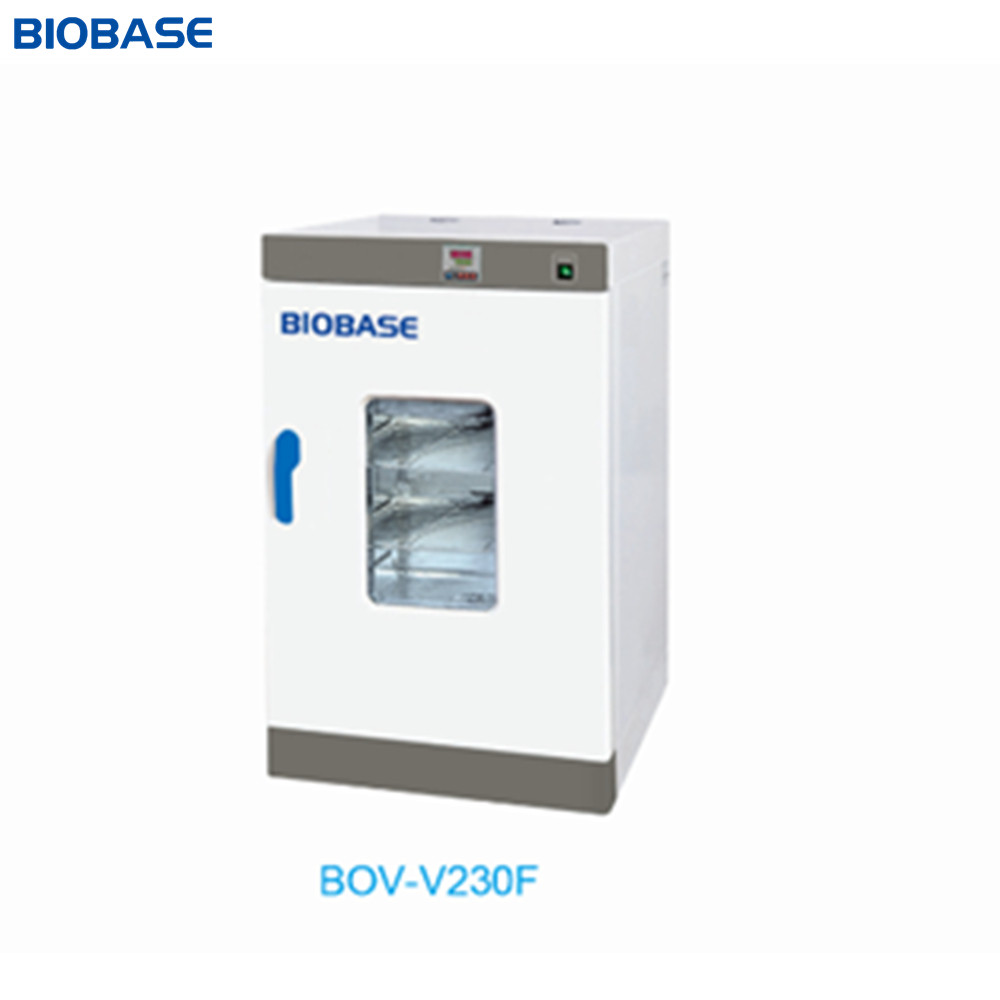

Model | BOV-V136F | BOV-V225F | BOV-V230F | BOV-V429F | BOV-V625F | BOV-V640F | BOV-V960F |
Capacity | 136L | 225L | 230L | 429L | 625L | 640L | 960L |
Temp. Range | RT+10~250 /300℃ | RT+10~250 /300℃ | RT+10~300℃ | RT+10~250 /300℃ | RT+10~300℃ | RT+10~250 /300℃ | RT+10~250 /300℃ |
Temp. Precision | 0.1℃ | ||||||
Temp. Fluctuation | ±0.5℃ | ||||||
Ambient Temp. | 5~40℃ | ||||||
Timing Range | 1~9999min | ||||||
Shelves No. | 2 pcs | 3 pcs | 4 pcs | 5 pcs | |||
Power Consumption | 1500W | 2100W | 3000W | 4000W | 5000W | 4500W | 6000W |
Power Supply | 220V/110V± 10%,50/60Hz; | 220V/110V ±10%,50/60Hz; | 220V±10%, 50/60Hz; | 380V/50HZ | |||
Internal Size (W*D*H)mm | 450*550*550 | 500*600*750 | 600*500*750 | 600*550 *1300 | 660*760 *1250 | 800*600 *1300 | 1000*600 *1600 |
External Size (W*D*H)mm | 600*745*900 | 650*805*1100 | 730*670*1220 | 745*750 *1670 | 895*925 *1830 | 950*790 *1675 | 1140*800 *2150 |
Packing Size (W*D*H)mm | 730*860*1030 | 780*880*1210 | 900*800*1350 | 880*880 *1820 | 1000*1080 *2000 | 1050*870 *1795 | 1220*890 *2190 |
Gross Weight(kg) | 95 | 110 | 105 | 145 | 160 | 170 | 230 |
Standard Accessory:
adjustable shelves
Optional:
1.RS-485 interface for software connection
2.Independent temperature protector
3. Large LCD with timing function.
