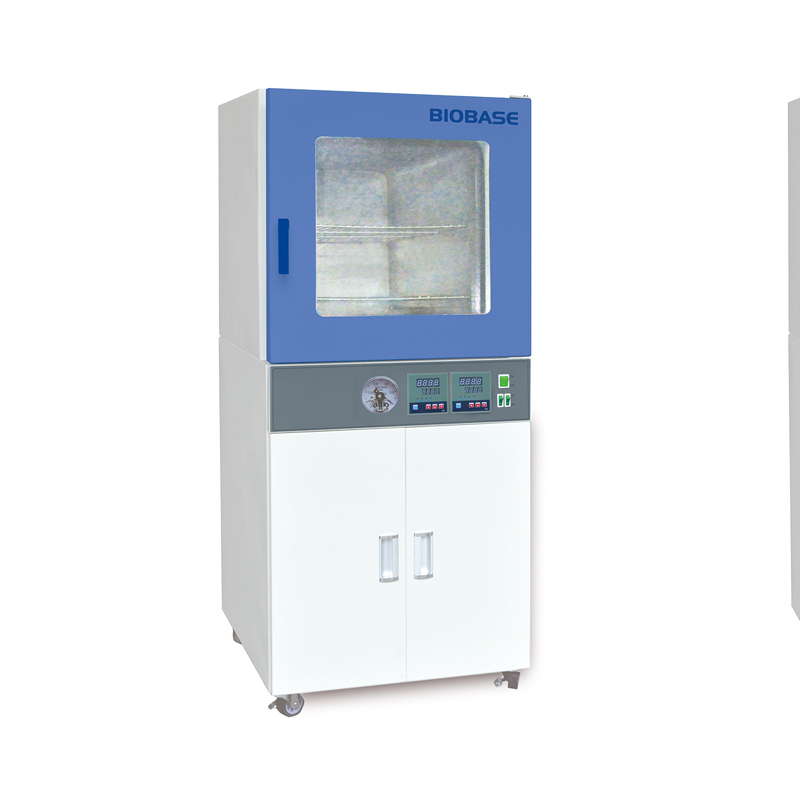

PID microprocessor temperature control with LED display Vacuum Drying Oven price
Introduction of vacuum oven
PID microprocessor temperature control with LED display.
Silicon rubber seal ring ensures the high vacuum degree in the chamber.
Feature of vacuum oven
*PID microprocessor temperature control with LED display.
*Polished stainless steel inner chamber.
*Vacuum degree is automatically controlled (for BOV-90V/BOV-215V/ BOV-90VL/ BOV-215VL)
*Silicon rubber seal ring ensures the high vacuum degree in the chamber.
*Tempered double-layer glass door ensures the operation safety.
*Inert gas can be filled in the chamber. (Inert gas pressure is not higher than 0.1Mpa when filling in).
(for BOV-90VL/BOV-215VL)
*The vacuum is controlled by microprocessor controller with digital display.(for BOV-90VL/BOV-215VL)
*The working program can be cycled for 99 times.(for BOV-90VL/BOV-215VL)
*The vacuum pump is standard accessory(for BOV-90V/BOV-215V/ BOV-90VL/BOV-215VL)
Parameter of vacuum oven
Model | BOV-30V | BOV-50V | BOV-90V | BOV-215V | BOV-90VL | BOV-215VL | |
Capacity | 25L | 50L | 90L | 215L | 90 L | 215 L | |
Temp. Range | 50~200°C | 50~250°C | 50~200°C | ||||
Temp. Fluctuation | ±1°C | ||||||
Vacuum Degree | <133 Pa | ||||||
Vacuum Control | / | Automatically; Include one vacuum meter | Automatically; Microprocessor controller with digital display | ||||
Shelves No. |
1 pc
| 2 pcs | 2 pcs | 3 pcs | 2 pcs | 3 pcs | |
Power Consumption | 500W | 1400W | 1600W | 2200W | 1600W | 2200W | |
Power Supply | 220V/110V±10%,50/60Hz | 220V±10%,50/60Hz | 220V/110V±10%,50/60Hz | 220V±10%,50/60Hz | |||
Internal Size(W*D*H)mm | 300*300*280 | 420*350*370 | 450*450*450 | 560*600*640 | 450*450*450 | 560*600*640 | |
External Size (W*D*H)mm | 580*570*450 | 710*590*530 | 660*610*1400 | 760*720*1670 | 660*610*1400 | 760*720*1670 | |
Packing Size (W*D*H)mm | 700*640*600 | 820*700*690 | 790*750*1570 | 900*850*1930 | 790*750*1570 | 900*850*1930 | |
Gross Weight( kg ) | 50 | 106 | 155 | 195 | 155 | 195 | |
Founded in 1999, having over 2000 employees .
BIOBASE Group is specialized in products of 8 areas including medical diagnosis, biosafety protection, disinfection and sterilization, water purification system, infant care products, cold chain products, software products, clean room project.
BIOBASE Group has certificates including ISO9001, ISO13485, ISO 14001, SGS, CE, NSF, EN, FDA, etc.
FAQ
1.Why choose BIOBASE?
We are the leading manufactuer in lab furniture and lab equipment, OEM & ODM service are offered. And we have our own overseas techinican and installation team.
2.How about the sample of Biobase product?
We could send you the samples but the freight and the sample are charged.
3.How about Biobase payment term?
T/T & L/C &Western Union(40% deposit, the balance before shipment)
4.How about BIOBASE delivery time?
Within 7-15 workdays after receiving deposit.
