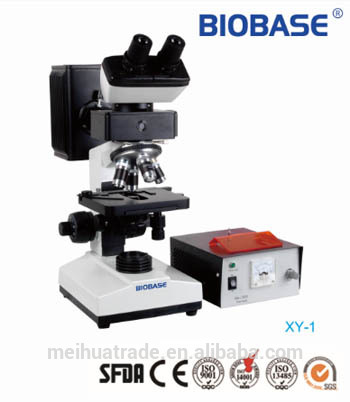

Fluorescence Biological Microscope XY-Series
Technical Parameter
Model | XY-2 | Note | ||
Viewing Head | Compensation Binocular head inclined at45°, | Compensation Trinocular head inclined at45°, | • | |
° | ||||
Eyepiece | Wide Field WF10X/18 eyepiece | • | ||
P16X eyepiece | • | |||
Nosepiece | Backward Quadruple Nosepiece | • | ||
Backward Quintuple Nosepiece | ° | |||
Objectives | Achromatic Objective 10X, 20X, 40X(S), 100X (S, oil) | • | ||
Semi- Plan Achromatic Objective 10X, 20X, 40X(S), 100X (S, oil) | ° | |||
Plan Achromatic Objective 10X, 20X, 40X(S), 100X (S, oil) | ° | |||
Infinite Plan Achromatic Objective 10X, 20X, 40X(S), 100X (S, oil) | ° | |||
Stage | Double Layers Mechanical Stage:140X140, Moving range:75X50mm | • | ||
Condenser | Abbe Condenser N.A.=1.25 With Iris Diaphragm and Filters | • | ||
Focusing System | Coaxial Coarse & Fine Adjustment, Fine Division 0.002mm, Moving range:24mm | • | ||
Collector | High Brightness Collector | • | ||
Kohler Illumination with Iris Diaphragm | ° | |||
Illumination | AC220V/110V, 6V20W, Halogen Lamp, Brightness Adjustable. | • | ||
AC220V/110V, Super Light LED Lamp, Brightness Adjustable. | ° | |||
Filters | Green and Blue Filters | ° | ||
Fluorescent Attachment: | ||||
Fluorescent Illumination | B(Blue), G(Green) Exciting Light Filter System, O ordinary Light System | • | ||
U(Ultraviolet), V(Violet) Exciting Light Filter System, O ordinary Light System | ° | |||
Illumination | 100W Ultra Hi-Voltage Spherical Mercury Lamp | • | ||
Protect Barrier | Barrier to Resist the Ultra Violet Light | • | ||
Power Supplier | Power Supplier AC110/220V, Digital Display and Timer | • | ||
Fluorescent Free Objective | 10X 20X 40X 100X | • | ||
Optional Parts | High resolution COMS Digital Camera 5.0MP, 9.0MP with software | ° | ||
