- Place of Origin:
- Shandong, China
- Brand Name:
- BIOBASE
- Model Number:
- TFUT-3
- Power:
- Electronic
- Usage:
- Universal Testing Machine
- Name:
- Tablet Four-usage Tester
- Model:
- TFUT-3
- Power Supply:
- AC220V/110V±10%, 50/60HZ
- External Size (W*D*H)mm:
- 810*460*640 mm
- Weight:
- 48kg
- Consumption:
- 600W
- Automatic time range:
- (1~900)min±0.5min
- Temperature range:
- (RT. to +39.9℃)±0.3℃
- Speed range:
- (20~200)rpm±2rpm
- Hardness range(N):
- 2~200
- Supply Ability:
- 1000 Unit/Units per Month
- Packaging Details
- Carton/wooden package
- Port
- Qingdao/Shanghai/Guangzhou
- Lead Time:
- Shipped in 7 days after payment

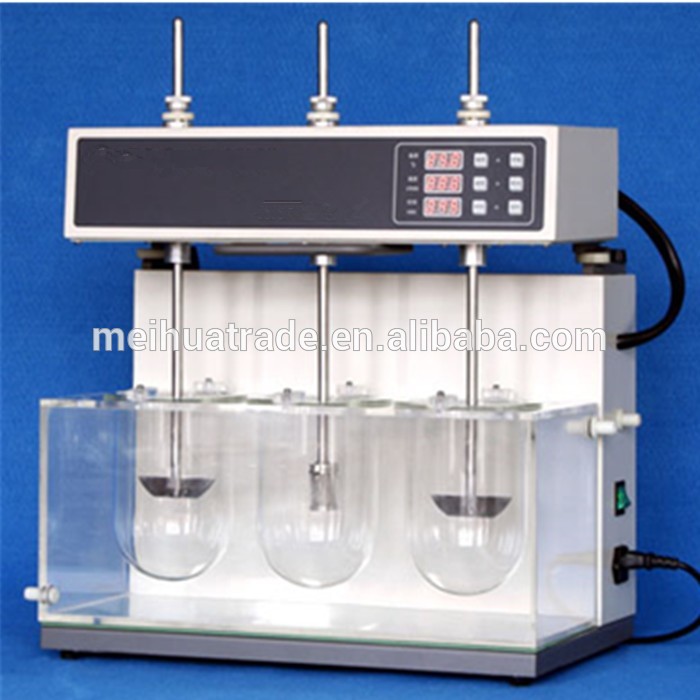

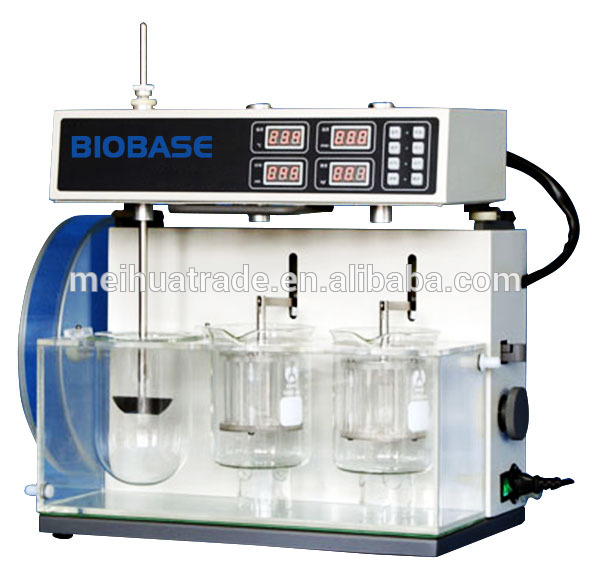

Cheap Tablet Four-usage Tester for Detecting Pharmic Dissolution, Disintegration, Frability/Abrasion and Hardness of Tablet
Tablet Four-usage Tester has four functions: detecting pharmic dissolution, disintegration, friability/abrasion and hardness of tablet.
2.The circular water current pumped by magnetism pump can heat the system equally,
and the bath liquid can achieve an even temperature.
3.Temperature is high accurately auto-controlled.
4.Presetting temperature at will, displaying preset and real-time data alternately in time.
5.Three vessels and three poles arranged on one line. The head part of the instrument can
be artificially turned over smoothly and flexibly.
6.Two disintegrations run synchronously. Auto stop at timing point.
7.High accuracy is achieved in testing rotary speed and counting friability.
8.The hardness has high accuracy press sensor and hardness data is displayed in Newton.
9.It tests tablet hardness continuously. The tablet is loaded and pressed artificially.
10.Auto-display, auto-memorize, auto-retest.
Model | TFUT-3 |
Temperature range | (RT. to +39.9℃)±0.3℃ |
Speed range | (20~200)rpm±2rpm |
Automatic time range | (1~900)min±0.5min |
Stations of dissolution | 3 |
Paddle radial run-out | ±0.5mm |
Basket radial run-out | ±1.0mm |
Basket assemblies | 2 |
Nacelle back and forth frequency | (30~32 )/ min |
Nacelle back and forth range(mm) | 55±2 |
Drum | 1 |
Drum’s size | radius:Φ286mm; depth: 39mm |
Hardness range(N) | 2~200 |
Probe procession range(mm) | 3~20 |
Power supply | 110V/220V±10%, 50 Hz /60Hz |
Consumption | 600W |
Packing size | 810*460*640 mm |
Gross weight | 48kg |
