Specification

Model

BXTV-1

BXTV-1A

BXTV-1B

BXTV-1C

BXTV-1D

BXTV-1E

Viewing Head

Sliding Trinocular Head Inclined at 45°

√

√

Compensation Free Trinocular Head inclined at 30°

√

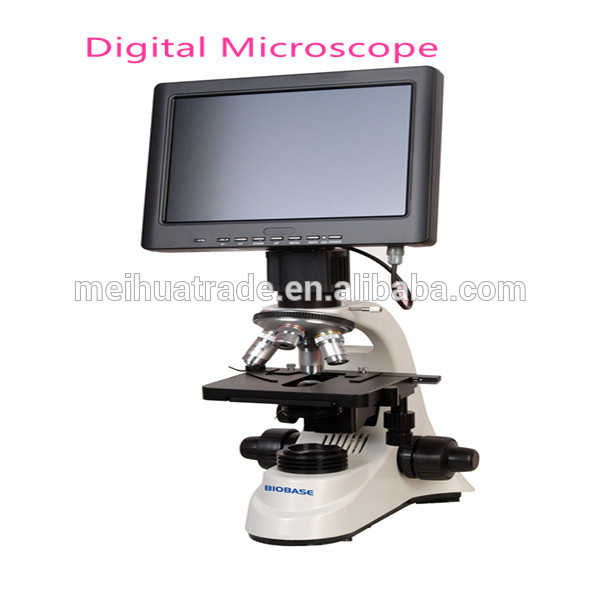

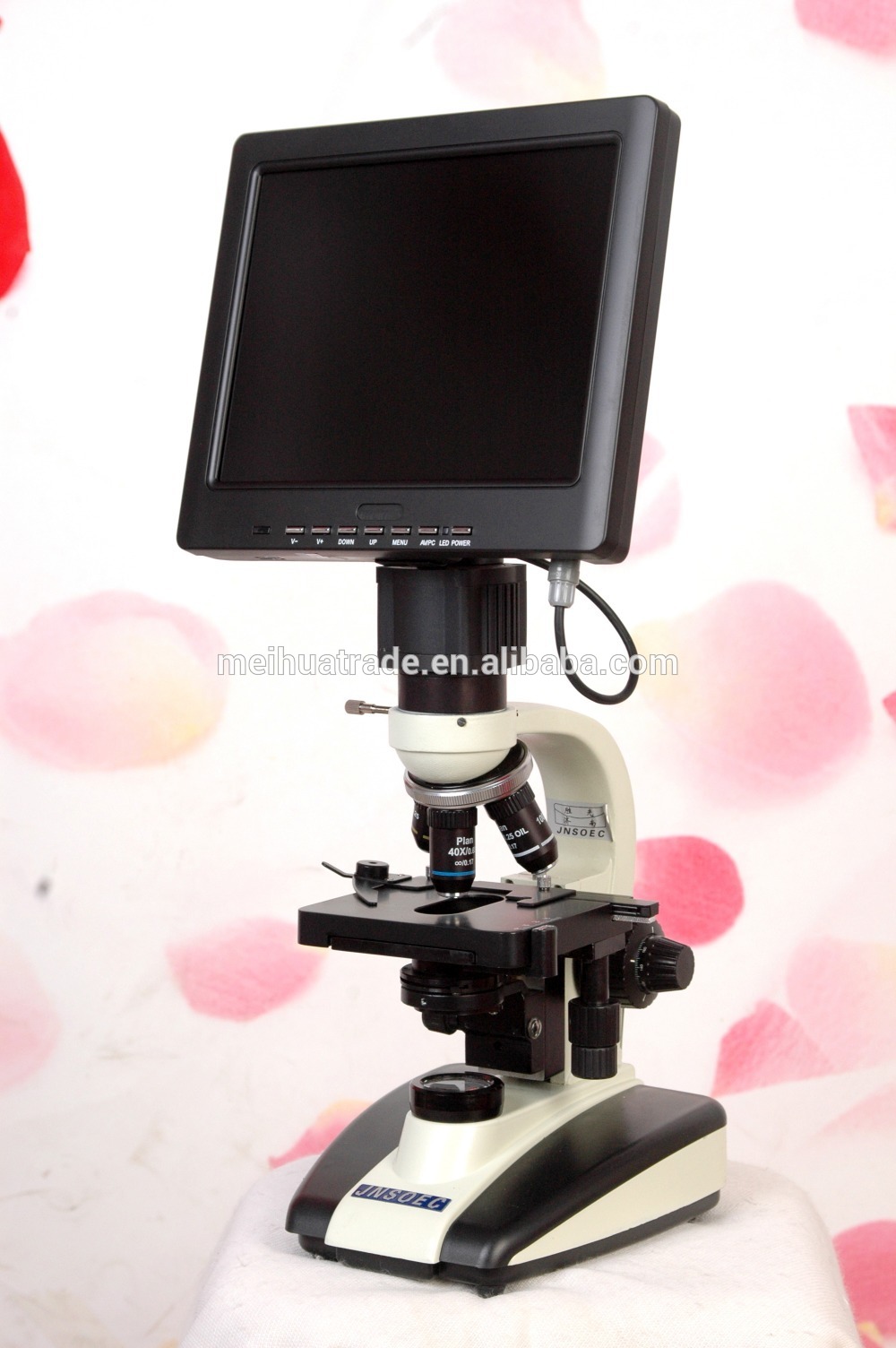

10’’LCD

√

√

√

Nosepiece

Ball Beating Quadruple Nosepiece

√

√

√

√

√

√

Eyepiece

WF10X/18mm

√

√

√

√

√

√

Objective

Achromatic 4X,10X,40X(S)100X(S,O)

√

√

√

√

√

Plan Achromatic 4X,10X,40X(S)100X(S,O)

√

Optional

Stage

Double Layer Mechanical Stage 135*140mm

√

√

√

√

√

√

Condenser

ABBE NA1.25 condenser with Iris Diaphragm &filter,rack&pinion adjustable

√

√

√

√

√

√

Illumination

Build-in Illumination,Halogen lamp6V/20W,Power supply 90-230V

√

√

√

√

√

√

Power supply

110,220V/50,60Hz

√

√

√

√

√

√

Package

Cartoon with foam

√

√

√

√

√

√

Package size

250*360*460mm

√

√

√

√

√

√

Gross weight

8kg

√

√

√

√

√

√

Optional Accessory

Camera, Monitor

√

√

√

√

√

√

Image Sensor

1/3 SONY CCD

Video Output

BNC 1.0VP-P.75

Signal System

PAL/NTSC

Backlight Compensation

OFF/ON

Scanning frequency

Horizontal:15.62KHz

Vertical:50Hz

Electronic Shuttle

AUTO IRIS EE

Horizontal Resolution

480TV/520TV

Camera Interface

CS

Min Illumination

F1.2 0.5LUX

0.01 LUX

Balance

Auto

Gain control

Auto

Power

DC 12V

48S/N Ratio

50dB AGC
