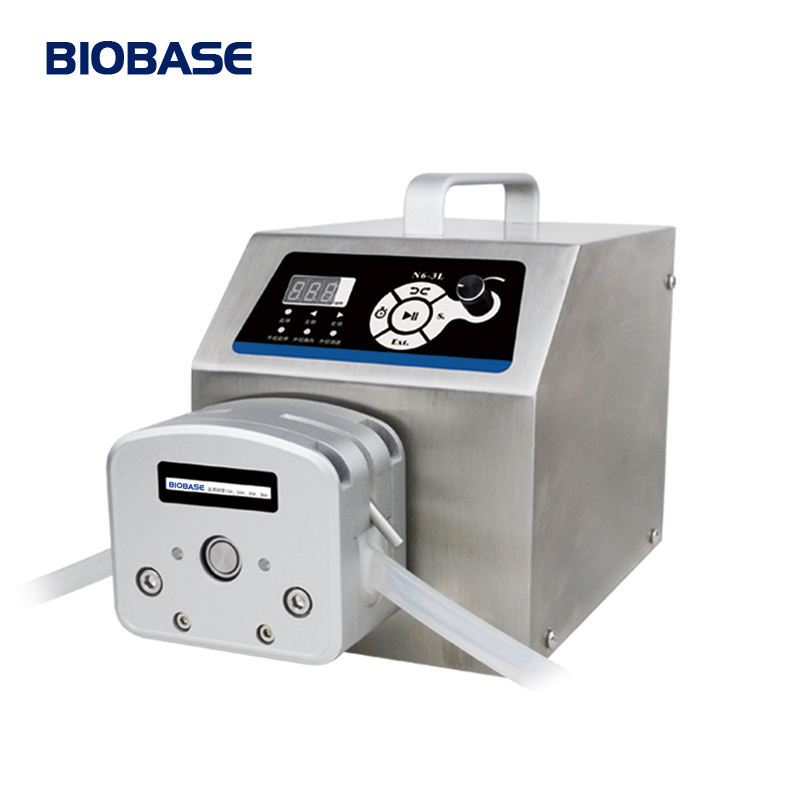

LED Screen Standard Peristaltic Pump SPP-N6 Series
with Timing Test Function
Features of Standard Peristaltic Pump SPP-N6 Series :
1.Serve motor drive, precise control, strong power, low vibration and low noise.
2. N-CIR circuit system, use imported chips, computing speed fast, reliable performance, working stable.
3. N-EMB operation system, embedded software design, powerful function, friendly interface.
4.Membrane keypad control: start/stop, direction, timing test, external control mode selection.
5.Rotary encoded switch can identify the target speed intelligently.
6.Timing test function, time range is 0.5-999 seconds.
7. Selectable different external control ways. Analog signals ( 0-5V, 0-10V, 4-20mA) control speed, switch signal control start/stop and direction.RS232, RS485 communication interface, support MODBUS protocol. Convenient for external control.
9.Load-shedding memory function.
10.Strong anti-jamming feature, wide voltage design, suitable for complex power supply environment.
11.Circuit board spray with three paint, anti-dust, anti-moisture, anti-static, resist corrosion.
12.304 stainless steel housing, use seamless welding technology, avoid accidental spilled liquid on the housing infiltrate inside, to protect the inside circuit board.

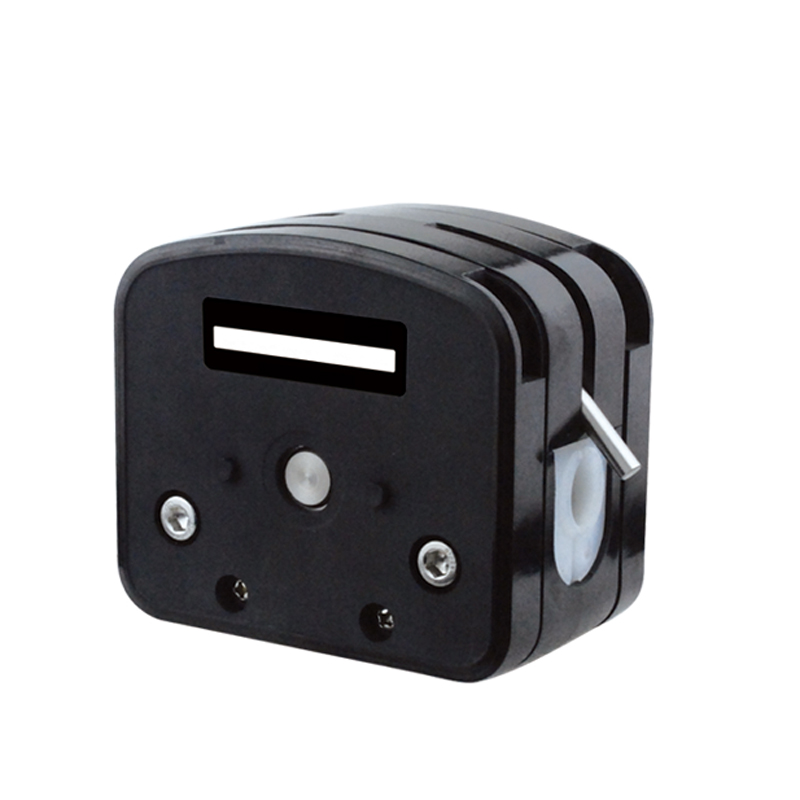

13.DZ25-3L, DZ25-6L, YZ35-PPS pump head, aluminum alloy material, 304 stainless steel rollers, strong rigidity, high accuracy, reliable performance.
Technical Parameters of Standard Peristaltic Pump SPP-N6 Series :
Drive | N6-3L | N6-6L | N6-12L | |
Flow rate range | 0.211-3600ml/min | 3-6000ml/min | 0.0069-12l/min | |
Speed range | 0.1-600rpm | |||
Speed resolution | 0.1rpm in the range of 0-100rpm;1rpm in the range of 100-600rpm | |||
Flow rate accuracy | <±0.5% | |||
Outlet pressure | 0.3Mpa | |||
Motor type | Servo motor | |||
Circuit system | N-CIR | |||
Control system | N-EMB | |||
Control method | Membrane keypad | |||
Display | LED screen | |||
External control speed signal | 0-5V(standard) 0-10V,4-20mA(optional) | |||
Start/stop,direction singal | Passive switch signal, such as foot pedal switch Active switch signal: 5V, 12V and 24V for option | |||
Communication interface | RS232(standard), N232 communication protocol;RS485(optional) MODBUS protocol (RTU mode) | |||
Ambinet temperature | 0-40℃ | |||
Relative humidity | <80% | |||
IP rate | IP31 | |||
Power supply | 220V/110V±10%, 50Hz/60Hz; | |||
Consumption | <80W | <180W | <300W | |
Drive external size (L×W×H)mm | 223×152×168 | 283×192×218 | 302×222×275 | |
Product Composition and Flow Rate Range
Model | Drive | Motor Type | Pump Head | Tubing Size | Speed Range(rpm) | Flow Rate Range(ml/min) |
SPP-N6-3L | N6-3L | Stepper Motor/Servo Motor | DZ25-3L | 15#,24#,35#,36# | 0.1~600 | 0.211~3600 |
SPP-N6-6L | N6-6L | Servo Motor | DZ25-6L | 15#,24#,35#,36# |
| 0.3~6000 |
SPP-N6-12L | N6-12L |
| YZ35 | 26#,73#,82# |
| 0.69~12000 |
Details of Standard Peristaltic Pump SPP-N6 Series :
