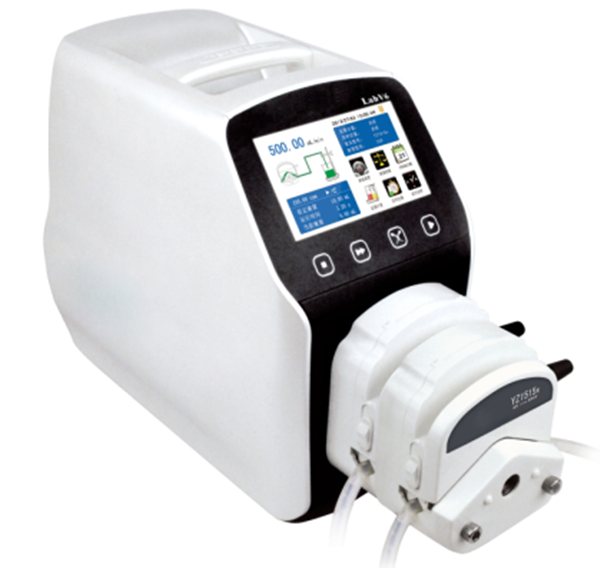

LCD display mini peristaltic pump touch screen controled peristaltic pump head
Features
1.4.3 inch color LCD display, touch screen control, dynamic display working status, flow volume and motor speed,etc.
2.Online micro adjusting function: adjust the flow rate without stop the pump.
3.Accurate angle control technology, to meet high precision metering and dispensing.
4.Fixed volume measurement function.
5.Fixed time and volume function.
6.Timing start and stop function.
7.Load-shedding memory function, store the running parameters in time, safe and reliable.
8.Fast fluid-filled function, can wash the tubing and also fill fluid in the tubing.
9.High torque and low power loss, it can load several pump heads or multichannel pump head, meet different application requests.
10.ABS engineering plastic housing, resist corrosion, no rust.
Drive | LabV1 | LabV3 | LabV6 | |
Flow rate range | 0.000067-570ml/min | 0.000067-2100ml/min | 0.000067-3600ml/min | |
Speed range | 0.1-600rpm | |||
Speed resolution | 0.01 rpm | |||
Flow rate accuracy | <±0.5% | |||
Back suction angle | 0-360℃ | |||
Outlet pressure | 0.1Mpa(0.86-1.0mm wall thickness tubing) 0.1~0.27Mpa(1.6-2.mm wall thickness tubing | |||
Motor type | Stepper motor | |||
Circuit system | LabV-CIR | |||
Control system | LabV-EMB | |||
Control method | Touch screen amd membrance keypad | |||
Display | LCDscreen | |||
External control speed signal | 0-5V,0-10V,4-20mA for option | |||
Start/stop,direction singal | Passive switch signal,such as:foot pedal switch Active switch signal:5V,12V and 24V for option | |||
Communication interface | RS232/RS485 support MODBUS protocol(RTU mode) | |||
Ambienttemperature | 0-40℃ | |||
Relative humidity | <80% | |||
IP rate | IP31 | |||
Power supply | 220V/110V ±10%, 50Hz/60Hz | |||
Consumption | <50W | |||
Drive external size (L×W×H)mm | 216.4×157.3×236.9 | |||
