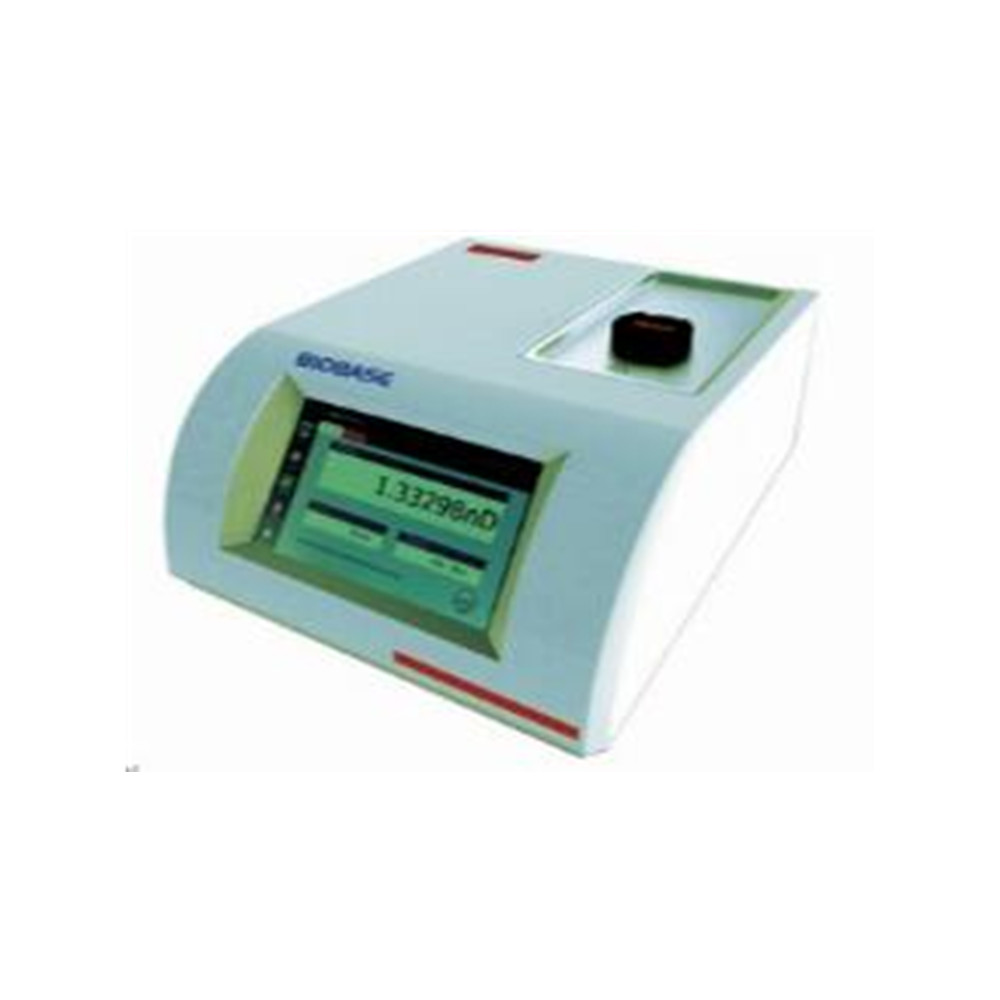

45W Large LCD Touch Screen Automatic Refractometer BR670 with Best Price
Application:
BR610/BR620/BR670 Automatic Refractometer includes high-performance CCD light-sensitive part, can accurately and efficiently process sample analysis tests through unique signal acquisition, analysis and processing technology.
1.High-resolution CCD sensor,automatic measure.
2.Large storage capacity for 1000 groups of data.
3.Unique signal acquisition, analysis and processing technology ensure accurate measurement results.
4.Large LCD touch screen and innovative WINDOWS software interface.
Features for BR670:
1.Cloud service system, connecting cloud database with instruments.
2.7”LCD touch screen and innovative WINDOWS software interface.
3.2 USB ports, RS232 port and internet port for connecting printer or internet, U disk and SD card port for data exporting.
4.Perfect measuring prism
Measuring prism is made of high hardness sapphire glass, of excellent properties against corrosion and scratches, free for clean and durable.
5.Ultra long life light source
It adopts High brightness LED lights with service life exceeding 100000 hours
6.Auto temperature control system
It adopts Peltier temperature control system, make sure the whole testing with accuracy and constant temperature.
Technical Parameters :
Model | BR670 | BR610 | |
Refractive index measuring range (nD) | 1.30000-1.70000 | ||
Measuring Error (nD) | ±0.0001 | ±0.0002 | |
Measuring Resolution (nD) | 0.0001/0.00001(Optional) | 0.0001 | |
Brix Measuring Range | 0-100% | 0-95% | |
Measuring Error (Brix) | ±0.1% | ||
Measuring Resolution (Brix) | 0.1%/0.01%(Optional) | 0.10% | |
Temperature control mode | Peltier temperature controller | / | |
Temperature display Range | 10-85℃ | 0-50℃ | |
Temperature control range | 5-70 ℃ | / | |
Temperature control accuracy | ±0.05℃ | / | |
Interface | RS232,USB,Ethernet interface | RS232,USB,SD card,U disk | |
Data storage capacity | 4G | 1000 groups | |
Display | 7’’TFT LCD touch screen | 5.6’’ TFT LCDtouch screen | |
Power consumption | 45W | 50W | |
Power supply | AC110V/220V±10%,50/60HZ | AC220V±10%,50HZ | |
External size(W*D*H) | 365*300*150mm | 455*321*200mm | |
Packing size(W*D*H) | 480*410*310mm | 620*485*345mm | |
Gross Weight | 10kg | 12kg | |
