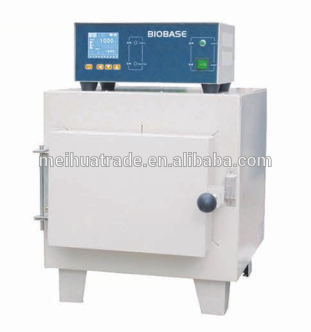

MB2.5-10 High-temperature 1000-1200C box resistanc Furnace/industrial furnace with Fire Brick Inner Chamber
Technical parameters
| Model | MB2.5-10 | MB4-10 | MB8-10 | MB12-10 | MB2.5-12 | MB5-12 | MB10-12 |
| Rated Temp.(℃) | 1000 | 1200 | |||||
| Temp. Rising Time (Empty/min) | ≤60 | ≤80 | ≤90 | ≤100 | ≤100 | ≤120 | ≤120 |
| Consumption(KW) | 2.5 | 4 | 8 | 12 | 2.5 | 5 | 10 |
| Power Supply(V) | AC220V±10% ,50/60Hz | 380V, 50/60HZ | 380V, 50/60HZ | AC220V±10%, 50/60Hz | 380V, 50/60HZ | ||
| Internal Size(W*D*H)mm | 200*12 0*80 | 300*200 *120 | 400*250 *160 | 500*300 *200 | 200*120 *80 | 300*20 0*120 | 400*250 *160 |
| External Size(W*D*H)mm | 595*41 0*467 | 790*500 *527 | 910*600 *635 | 1100*720 *675 | 595*410 *464 | 790*50 0*527 | 910*600 *635 |
| Package Size(W*D*H)mm | 780*49 0*550 | 900*600 *640 | 930*630 *650 | 1120*770 *740 | 790*590*560 | 900*59 0*640 | 1120*770 *740 |
| Gross Weight(Kg) | 80 | 150 | 230 | 305 | 92 | 80 | 230 |
| Model | MEL4-13 (elema) | MEL5-13 (elema) | MEL8-13 (elema) | MST2-13 (single tube) | MDT2.5-13 (two tubes) |
| Rated Temp.(℃) | 1300 | ||||
| Temp. Rising Time (Empty/min) | ≤240 | ≤240 | ≤350 | ≤45 | ≤45 |
| Consumption(KW) | 4 | 5 | 8 | 2 | 2.5 |
| Power Supply(V) | AC220V±10%,50/60Hz | 380V/50/60HZ | AC220V±10%,50/60Hz | ||
Internal Size(W*D*H)mm | 250*150*100 | 500*278*180 | Φ30*180 | 2-Φ22*180 | |
External Size(W*D*H)mm | 650*510*485 | 965*570*600 | 450*270*360 | ||
Package Size(W*D*H)mm | 850*640*600 | 850*630*610 | 930*640*635 | 680*460*510 | |
| Gross Weight(Kg) | 206 | 210 | 25 | ||
Features
1. Cold-rolled steel with anti-bacterial powder coating.
2. High-temperature box resistance furnace takes elema as heating component to fix inside the fire pot.
3. Medium-temperature furnace adopts enclosed fire pot; The spiral electric alloy wire coil as heating component coiled on the furnace walls. It is efficient and durable.
4. High-temperature tubular resistance furnace adopts heat resistant combustion tube and takes elema as heating component to fix outer sleeve of fire pot.
