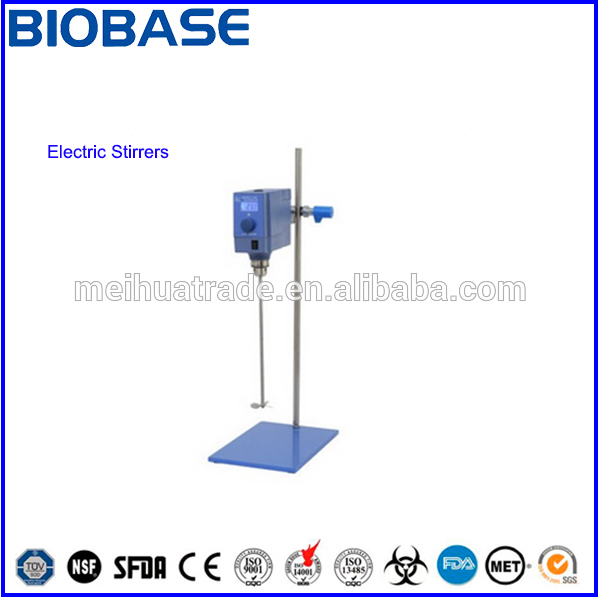

Laboratory Mixing Machine 20/40L Digital Universal LCD Overhead Magnetic Stirrer with Cheap Price
Features of Laboratory Overhead Stirrer
Accurate stirring speed control:
The control technology effectively guarantees the speed precision.
Anti-spill samples:
PC control system starts up smoothly, prevents samples overflowing
LCD real-time display:
Setting value and actual value can be displayed. Real-time monitoring torque and speed via LCD display.
Overload protection:
Motor would automatically stop in case of continuous overload.
Automatical safety circuit:
Automatically cut off the circuit in case of motor overheating and other exceptional circumstances.
Extended application:
PC can control and document all measuring values via RS232 interface. Parameter can be set to carry out safety monitoring.
Specifications of Laboratory Overhead Stirrer
| OS40-Pro | OS20-Pro |
Max. stirring quantity(H2O)[L] | 40 | 20 |
Motor rating input[W] | 120 | 60 |
Motor rating output[ W] | 100 | 50 |
Speed range[rpm] | 50-2200 | 50-2200 |
Speed display accuracy[rpm] | ±3 | ±3 |
Speed display | LCD | LCD |
Speed display resolution[rpm] | 1 | 1 |
Max. torque[Ncm] | 60 | 40 |
Torque display | LCD | LCD |
Overload protection | LED light flash, auto stop | LED light flash, auto stop |
Motor protect | LED light flash, auto stop | LED light flash, auto stop |
Viscosity max. [MPa] | 50000 | 10000 |
Chuck range diameter[mm] | 0.5-13 | 0.5-13 |
Rod size[dia.xl] (mm) | 14x220 | 14x220 |
Dimension[W x H x D] (mm) | 83x220x186 | 83x220x186 |
Weight[kg] | 2.4 | 2.4 |
Voltage[VAC] | 100-240 | 100-240 |
Frequency [Hz] | 50/60 | 50/60 |
Power[W] | 130 | 70 |
Protection class acc. to DIN/EN 60529 | IP42 | IP42 |
Temperature[°C] | 5-40 | 5-40 |
Permission relative humidity[%] | 80 | 80 |
Remote control(RS232 interface) | Yes | Yes |

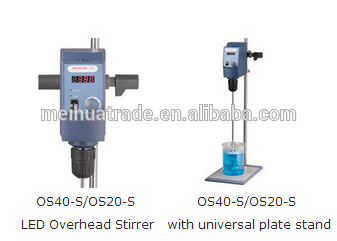

More stirrers you can choose
Packaging & Shipping of Laboratory Ovehead Stirrer
Wooden package are commonly used. Let us know if you have special packaging requirements.
