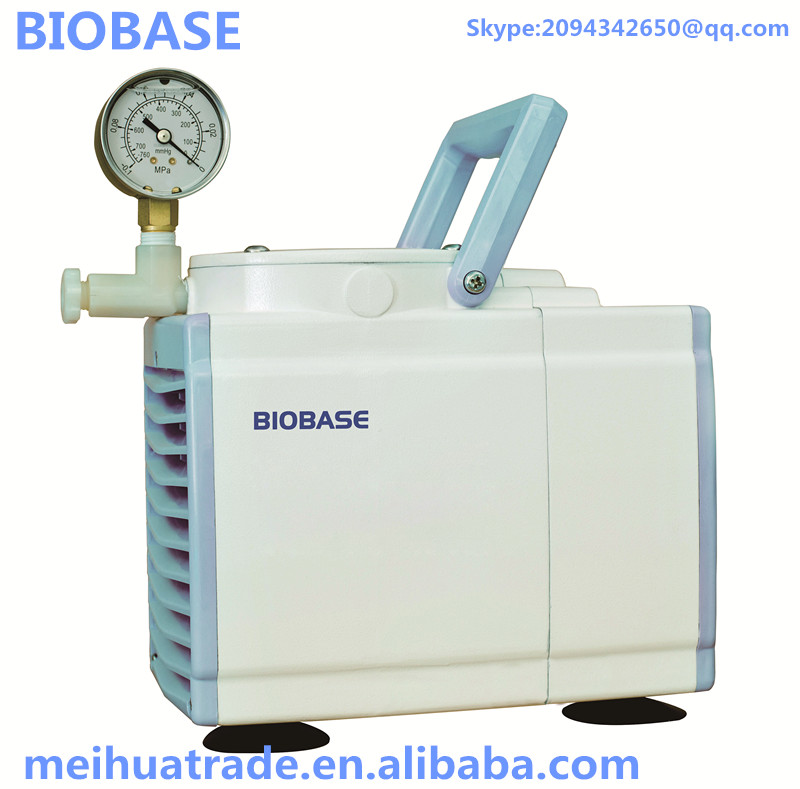

GM-0.33A Vacuum Pump
Features:
1. Oil free,clean exhausted air by built- in filter .
2. Automatic cooling exhaust system ensures 24 h operation continuously.
3. The pressure adjustable design can satisfy a certain range of vacuum and gas velocity.
4. TEFLON surface treatment, anti-gas corrosion.

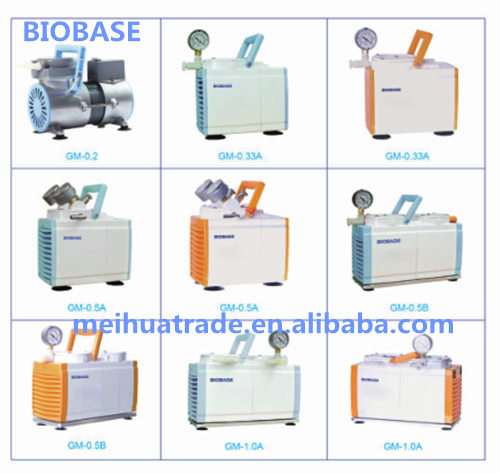

Other products
Technical parameters
Model | GM-0.20 | GM-0.5B | GM-0.5A | GM-0.33A | GM-1.0A |
Pump Head | 1 | 2 | 1 | 1 | 2 |
Speed of Evacuation | 12 L/Min | 30 L/Min | 20 L/Min | 60 L/Min | |
Ultimate pressure | ≥0.075 Mpa | ≥0.095 Mpa | ≥0.08 Mpa | ||
Vacuum | 250 mbar | 50 mbar | 200 mbar | ||
Pressure | ≥30 Psi Positive or negative pressure | Negative pressure | ≥30 Positive, Positive or negative pressure | Negative pressure | ≥30 Positive, Positive or negative pressure |
Inlet | φ6 mm | ||||
Outlet | φ6 mm | Silencer | φ6 mm | Silencer | φ6 mm |
Working Temp | 7—40℃ | ||||
Body Temp | <55℃ | ||||
Noise Level | <60 dB | <50 dB | |||
Motor Power | 75W | 160W | |||
Power consumption | 220V/110V,50/60Hz | ||||
Diaphragm | NBR | ||||
Valves | / | NBR | |||
Net Weight | 4 Kg | 10 Kg | 6.6 Kg | 6.2 Kg | 10 Kg |
External Size(L x W x H) | 195×98×156mm | 300×120×235mm | 210×160×235mm | 215*120*235mm | 300×160×235mm |
Gross Weight | 4.5 Kg | 11 Kg | 7.6 Kg | 7.5 Kg | 11 Kg |
Package Size | 330*210*240 mm | 314*205*316 mm | 300*210*310 mm | 315*200*310 mm | 380*340*270 mm |
BIOBASE is the only company who has passed NSF40 & EN12469 Certification in China.
Our products include Biosafety Cabinet (Class I/II/III), Laminar Flow Cabinet, Fume Hood, Medical Refrigerator, Freezer, Autoclave, Incubator, Drying Oven, Centrifuge and so on.
Packaging and Shipping
Packaging:
1. wooden packing as export for freezer dryer
2. Base on your requests
Shipping:
Usually we ship the goods by one of three methods. you can chose the most appropriate one according to your timeline and budge. Shipping by your own shipping agent is acceptable.
ISO9001, ISO14001, ISO13485, CE.
1 year Warranty
