Click on the image to view the original image
- Applicable Industries:
- LAB
- Application:
- Medicine Processing, Chemicals Processing
- Condition:
- New
- Type:
- Vacuum Drying Equipment, Standardchamber
- Place of Origin:
- Shandong, China
- Brand Name:
- BIOBASE
- Voltage:
- 220V 50/60HZ
- Power(W):
- 1.1-15kw
- Dimension(L*W*H):
- 480*620*920/1370mm
- Weight:
- 130kg
- Certification:
- CE ISO
- Warranty:
- One Year
- After-sales Service Provided:
- Online support
- Key Selling Points:
- Energy saving
- Final Condenser Temp (℃):
- ≤-55 or ≤-80
- Vacuum Degree (Pa):
- <10
- Freeze Drying Area (m2):
- 0.12
- Ice Condenser Capacity (Kg/24h):
- 4
- Shelves:
- 4-6
- Material Loading Capacity/shelf (ml):
- 300
- Material Loading Capacity (ml):
- 1200

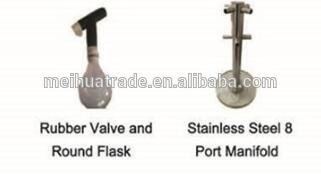

- stand accessory:
- vacuum pump,valve,flask
- Drying Chamber (Standard):
- Transparent acrylic
- Supply Ability:
- 1000 Unit/Units per Month
- Packaging Details
- wooden package
- Port
- qingdao
- Picture Example:
![package-img]()
- Lead Time:
Quantity(Units) 1 - 1 >1 Est. Time(days) 25 To be negotiated

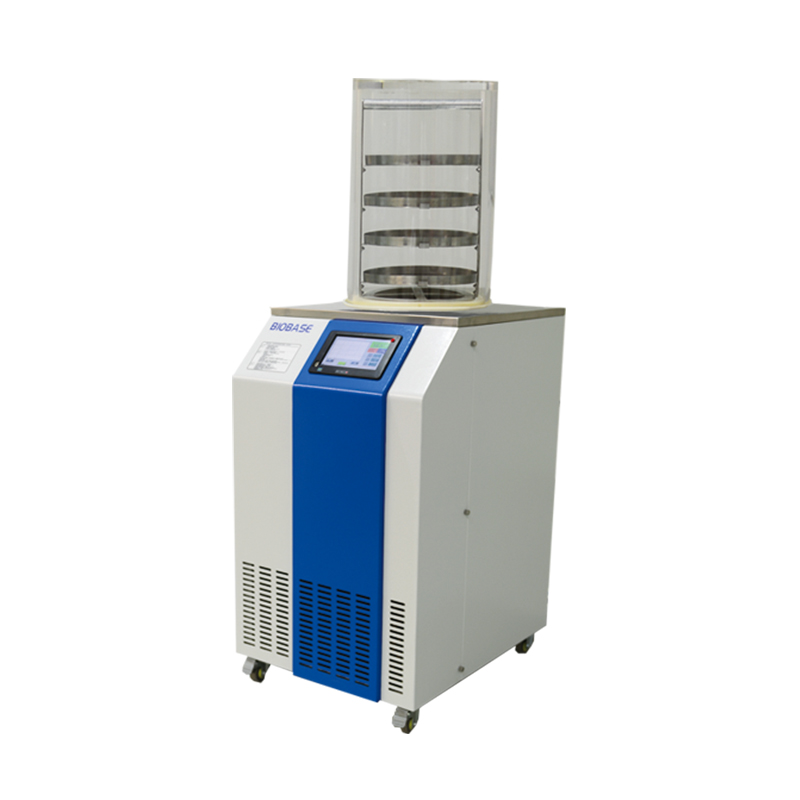

BK-FD12S -56/-86C Freeze Drying Machine, freeze dryer, lyophilizer with Vacuum Pump for plant/lab/pharmaceutical HOT SALE
Technical parameters:
Model | BK-FD12S | BK-FD12T | BK-FD12P | BK-FD12PT | ||||
Type | Standard chamber | Stoppering chamber | Standard chamber with 8 port manifold | Standard stoppering with 8 port manifold | ||||
Final Condenser Temp (℃) | ≤-55 or ≤-80 | ≤-55 or ≤-80 | ≤-55 or ≤-80 | ≤-55 or ≤-80 | ||||
Vacuum Degree (Pa) | <10 | <10 | <10 | <10 | ||||
Freeze Drying Area (m2) | 0.12 | 0.09 | 0.12 | 0.09 | ||||
Ice Condenser Capacity (Kg/24h) | 4 | 4 | 4 | 4 | ||||
Shelves | 4 | 3 | 4 | 3 | ||||
Material Loading Capacity/shelf (ml) | 300 | 300 | 300 | 300 | ||||
Material Loading Capacity (ml) | 1200 | 900 | 1200 | 900 | ||||
Freeze Drying Time (H) | 24 | 24 | 24 | 24 | ||||
Manifold | / | / | 8 pieces | 8 pieces | ||||
USB Interface | Yes | Yes | Yes | Yes | ||||
Drying Chamber (Standard) | Transparent acrylic | |||||||
Vacuum Pump (Standard) | Model: 2XZ-2, Speed: 2L/s (China-Made) | |||||||
Control System | Microprocessor, touch screen | |||||||
Power Supply | AC220V±10%,50/60Hz | |||||||
External Size (W*D*H) | 480*620*920/1370mm | |||||||
Package Size | Main Body | 700*570*1050mm | ||||||
Drying Chamber | 350*350*570mm | |||||||
Vacuum Pump | 570*370*190mm | |||||||
Gross Weight | 130kg | 135kg | 135kg | 135kg | ||||
Note | Shelf(plate) heating and cold trap(ice condenser) defrosting function are optional; The vacuum pump, standard drying chamber and all other accessories, like valve, flask etc. are standard accessories; | |||||||
Features:
1. The 7 inch LCD display panel.
2. With historical data inquiry function.
3. The machine is equipped with USB interface on control panel.
4. Large capacity Ice condenser trap and without coil inside.
5. Cascade refrigeration technology.
6. The pre-freeze shelf can be used as guide barrel to speed up the drying rate.
7. Ice condenser trap and operation panel are made by stainless steel.
8. Drying cabinet is transparent which is visual and safe.
9. The shelves are stainless steel, which can be adjustable per the requirements.
