Click on the image to view the original image
- Type:
- Blood Analysis System
- Brand Name:
- BIOBASE
- Model Number:
- BIOBASE1000
- Place of Origin:
- Shandong, China
- Instrument classification:
- Class I
- Sample racks:
- 60 or 80~12 mm sample tubes
- Dilution rack:
- 92 positions
- Reagents holder:
- modular racks to hold calibrators
- Liquid reservoirs:
- external tanks equipped with level sensors
- Microtiter plates:
- 2 plates (96 wells) with incubation capability
- Dispensing system:

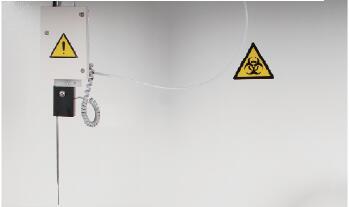

- 1 aspirating-dispensing probe with X-Y-Z movement
- Washing system:
- two 8 nozzle on line manifolds with automatic adaptation
- Washing Residual volume:
- < 3μl
- Washing inaccuracy:
- CV < 5 % with 300 μl
- Readingsystem:
- 8 independent photometric channels
- Supply Ability:
- 10000 Set/Sets per Year
- Packaging Details
- wooden package
- Port
- Qingdao port
- Picture Example:
![package-img]()
- Lead Time:
Quantity(Sets) 1 - 1 >1 Est. Time(days) 10 To be negotiated
2-plates Elisa processing system/laboratory automated Elisa processor
FEATURES
1.Biobase1000 fully automated ELISA analyzer is a 2 micro-plate fully automated processor able to operate the dispense, incubation, reading, data processing and storage of results.
2.Its user friendly approach for both software and hard ware allows the operator to start working with the instrument as soon as it is out of the box, no pre-adjustments or calibrations required.
TECHNICAL PARAMETERS
Model | Biobase1000 |
Type | Fully automated ELISA analyzer |
Sample racks | 60 or 80 – 12 mm sample tubes or 40 - 16 mm sample tubes |
Dilution rack | 92 positions |
Reagents holder | modular racks to hold calibrators, controls and reagents for 8 methods on line |
Liquid reservoirs | external tanks equipped with level sensors; 2 washing buffer |
Microtiter plates | 2 plates (96 wells) with incubation capability, from room temperature to 45 °C |
Dispensing system | 1 aspirating-dispensing probe with X-Y-Z movement; dilution system with a syringe of 1000 μl, continuous flow washing station |
Washing system | two 8 nozzle on line manifolds with automatic adaptation for the different micro-plates height |
Washing Residual volume | < 3μl |
Washing inaccuracy | CV < 5 % with 300 μl |
Readingsystem | 8 independent photometric channels for mono and bichromatic reading |
Optical filters | 2 filters (450 and 630 nm); 2 more on request (max 4 filters) |
Readinginaccuracy | ± 1% from 0.000 to 1.500 OD ± 2% from 1.500 to 3.000 OD |
Dispensation | from 8 ml to 1000 ml with 1μl resolution; inaccuracy ±1% with 100 μl |
Software | Windows 98 and XP operating system, to set up the work list, patient reports and results filing; calibration curves storage for each carried-out test |
Connection | LIS interface capability, work list set up from Host computer. Capability of connecting more instruments to a single PC. |
Power Supply | 200/110 VAC, 50-60 Hz |
Dimension | 620 x 820 x 720 |
Weight | 80 Kg |
