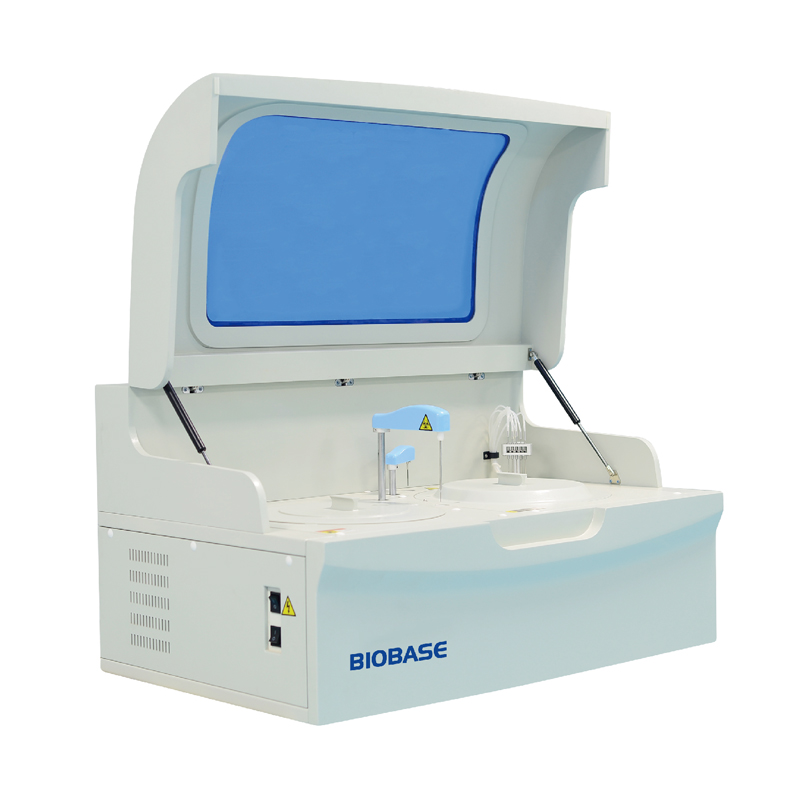

Biobase BK200 low price Bench-top automatic chemistry/biochemistry analyzer
Overall Performance | Model | BK-200(SAPPHIRE) |
Type | Bench-top,Discrete,Fully automatic | |
Throughput | 200T/H | |
Analysis Method | End-point, Fixed-time, Rate | |
Certification | CE, FDA, ISO9001, ISO14001, ISO13485 | |
Sample & Reagent Unit | Sample Positions | 49 sample positions, including calibration, quality control and emergency |
Reagent Positions | 56 refrigerated reagent positions | |
Sample Volume | 2ul ~70ul (0.1ul stepping) | |
Reagent Volume | R1&R2:20ul ~350ul (1ul stepping) | |

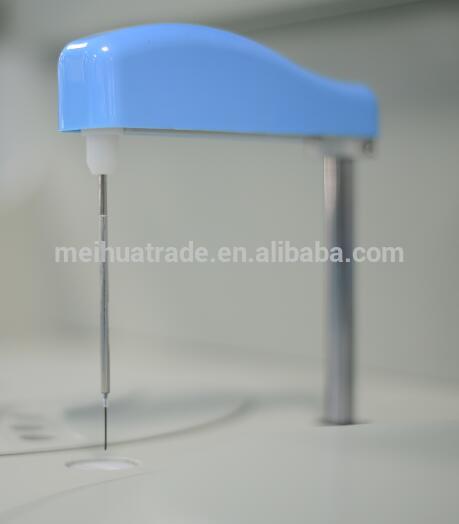

Sample& Reagent Probe | Having liquid level sensor function,with anti-collision function | |
Probe cleaning | Automatic washing both interior and exterior | |
Reagent tray cooling | Continuous 2℃~8℃ cooling within 24 hours | |
Reaction Unit | Reaction Time | 10 minutes |
Temperature Control | 37℃±0.1℃, with online software monitor the temperature | |
Cuvettes | 120 reusable reaction cuvettes (optical path length 6mm) | |
Mixer probe | After adding reagent and sample, blending immediately | |
Washing | After finishtesting, washing probe wash cuvettes automatically | |
Optical System | Light Source | 12V/30W halogen-tungsten lamp, 2000 hours |
Spectroscopic methods | Post light split detection technique | |
Wavelength Range | 340,405,450,510,546,578,630,700nm | |
Linear Range | 0.000~3.000Abs | |
Calibration and QC | Calibration | One-point, two-point, multi-point, factor, 4P, 5P, spline |
Quality Control | Inserting quality control at random, with reaction curve can check each test items clearly | |
Software | Emergency Function | Emergency sample can be placed in the sample tray at any time |
Software | Windows7/8/10 or above,LIS system available | |
Data Processing | Having reaction curve detection and data display function in the whole process | |
Others | Power Supply | 110/220V±10% , 50/60Hz |
External Size(W*D*H) | 950*610*510mm | |
Package Size(W*D*H) | 1120*730*980mm | |
Gross Weight | 185kg |
BIOBASE is a professional manufactuter of laboratary since 1999. Our main products are Biosafety Cabinet(I, II, III), Laminar Flow Cabinet, Fume Hood, Biochemistry Analyzer, Reagent, Autoclave and Incabutor. We have more than 1000 eployees and 20000 square meters production base. Our output reaches 10000 units per year. Pursuing the highest quality is the tenet of BIOBASE. We hope everyboy will enjoy BIOBASE service to keep away from the infectious disease.
