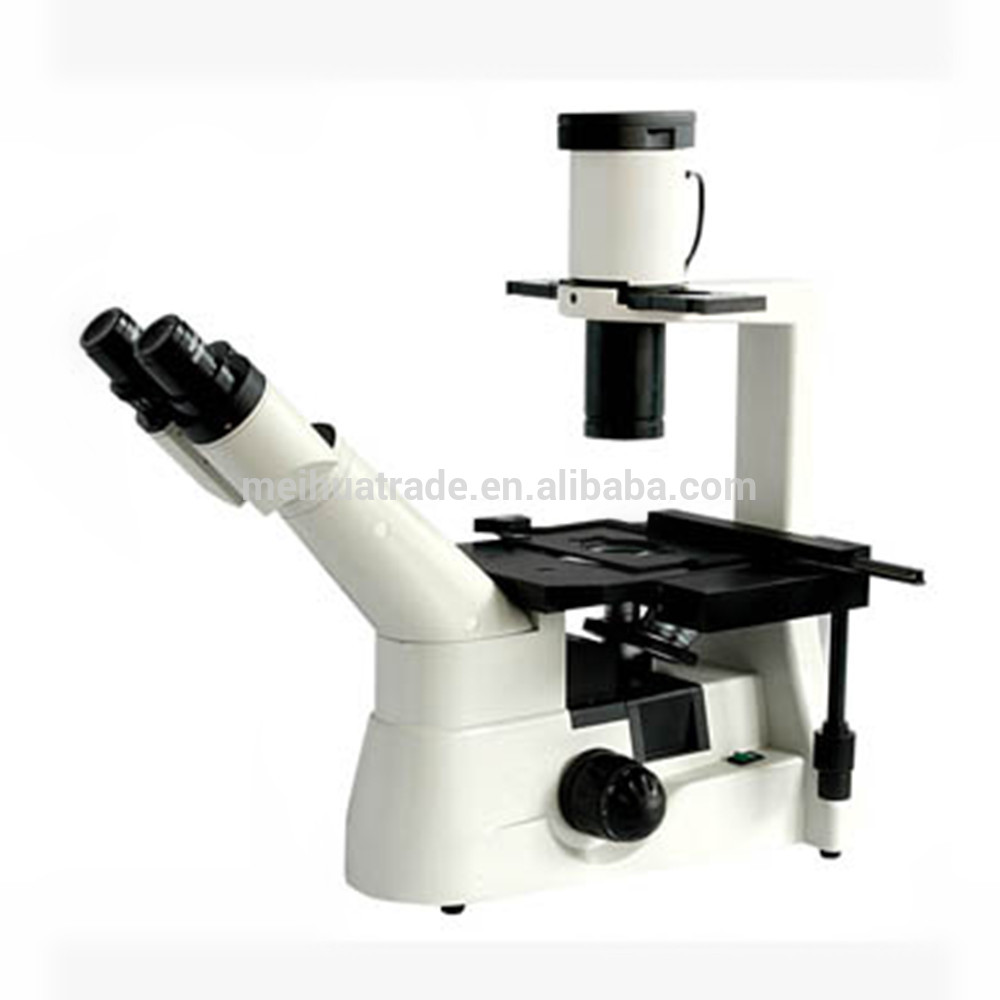

CE Certificated BIOBASE Inverted Microscope
Technical parameters:
Viewing Head | Trinocular Head Inclined at 30°,Interpupillary distance 48-75mm |
Eyepiece | High point extra wide field eyepiece EW10X/22 |
Objective | Infinite plan objective 4X/0.1,WD18mm 10X/0.25,WD10mm 20X/0.4,WD5.1mm 40X/0.6,WD2.6mm Infinite plan phase objective PH10X/0.25,WD10mm PH20X/0.4,WD10mm PH40X/0.65,WD0.35mm
|
Nosepiece | Quintuple Nosepiece |
Condenser | ELWD Condenser NA0.3,LWD72mm(150mm without condenser) |
Centering | Centering Telescope (Φ30mm) |
Phase Annulus | 10X-20X,40X Pre-adjustable phase annulus plate 10X-20X,40X Adjustable phase annulus plate |
Stage | Plain stage 160*250mm Glass insert Attachable mechanical stage,X-Y coaxial control moving range 120*78mm Auxiliary stage 70*180mm Φ38mm Petri dish holder Φ54mm Slide glass holder |
Focusing | Coaxial coarse and fine adjustment,vertical objective movement Coarse stocke 37.7mm pet rotation,fine strok 0.2mm per rotation |
Illumination | Halogen lamp 6V/30W |
Filter | Diameter 45mm,Blue,Green,and frosted glass |
Accessories | Inverted Fluorescent Attachment Video Adapter with C mount |
Power Supply | 110/220V,50/60Hz |
Package Size | 350*250*508mm(XSD-403),468*397*665mm(NIB-100) |
Gross Weight | 15Kg(XSD-403)(NIB-100) |
Relative Product:
|
CE Marked BIOBASE laboratory Metallurgical Microscope |
Company Information
BIOBASE group, founded in 1999 and been through high and stable development for 15 years, who is now with revenues of one hundred million, 1200 employees in China and abroad offices, 22.4 acres land industry parks and 20000 square meters production base.
The products we manufacture extends to most of the laboratory items and scientific analytical equipments. Our mission is to enable our customers to make the world healthier, cleaner and safer.
BIOBASE group invests in science and technology research, aim to keep impoving products performance and quality as well as develop new products to meet customers wide requirement.
We satisfy our customers by offering comprehensive support, purchase convenience and we are ready to serves more and more BIOBASE users.
BIOBASE group, serving global distributors and its loyal end users, is becoming one of the most important scientific services supplier.

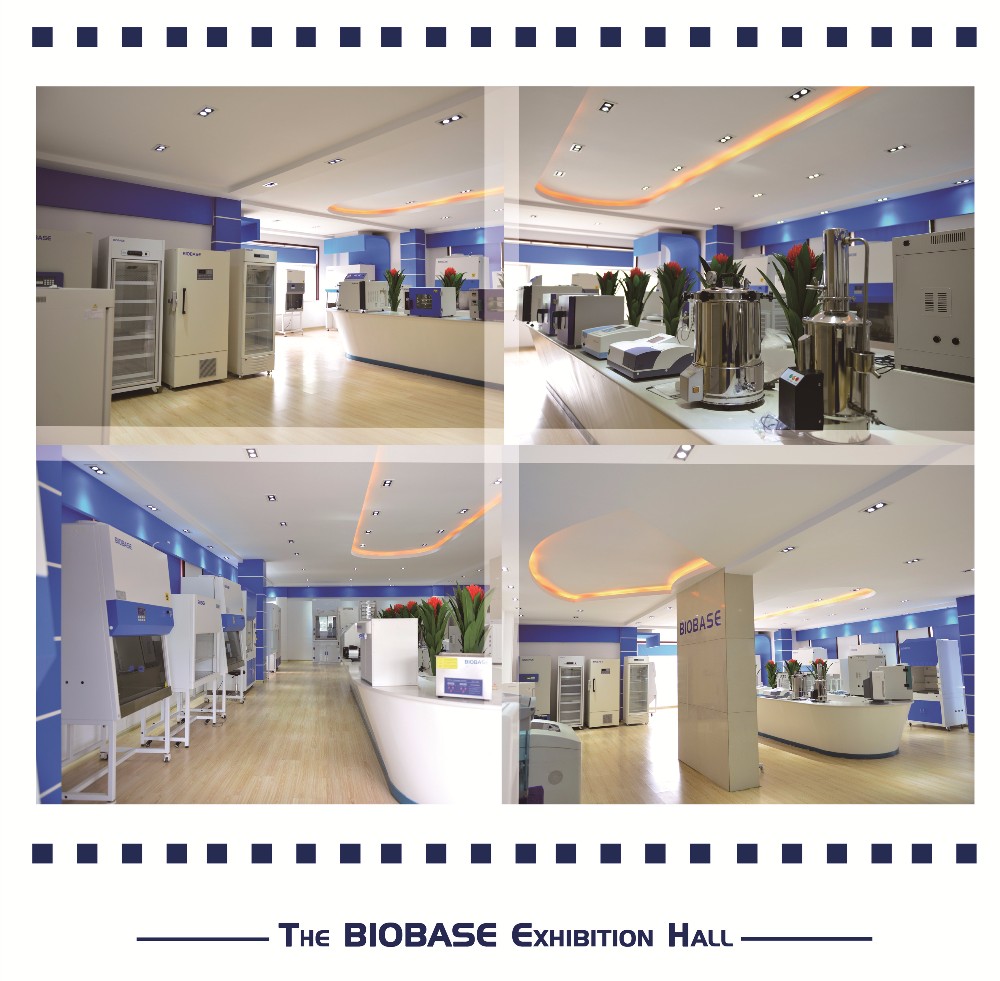

company photos
Biobase attend global exhibition
Biobase Certification
About Payment Terms:
We accept the following payment methods: T/T, Credit, Escrow.
About Delivery time:
Most of our products on sale are in stock, and will be delivered within 10-15 days. But still please confirm your order and detailed informaion with us.
About Photos:
All products" photos are true and taken carefully by our Graphic Designer Team.
About After-Sales Service:
We"re focusing on every client"s satisfaction. Professional team will solve any problems you met during the whole purchasing progress.
Pursuing the highest quality is tenet of BIOBASE
Contact person: Fiona Tang
BIOBASE Biodustry (shandong) Co.,Ltd
Add: No.51 South Gongye Road , Jinan, China
E-mail: sales91(AT)biobase.cc
Overseas Warehouse: Bangalore,India/Jordan/Silicon Valley,U.S
