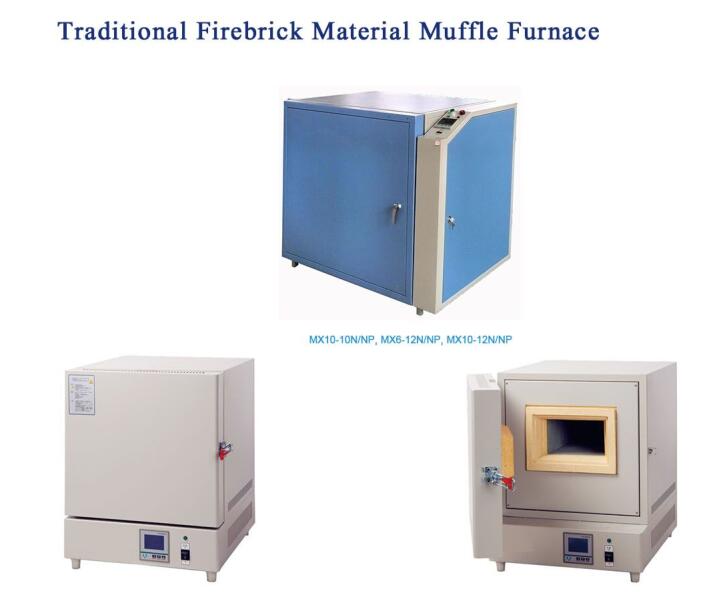

Traditional Firebrick Material Muffle Furnace
Featurers
Built-in over temperature protection device, Power failure memory function (except MX10-10N/NP, MX6-12N/NP. MX10-12N/NP);
PID high precision controller, over-temperature alarm;
Programming controller, automatic shutdown, temperature rise and cooling rate can be set(for P series);
Temperature curve can be shown on the screen directly, easy to analyze(Optional accessory)
Products Application
Technical parameters
| Model | MZ2.5-10N/NP | MZ4-10N/NP | MZ8-10N/NP | MZ10-10N/NP | MZ2.5-12N/NP | MZ5-12N/NP | MZ6-12N/NP | MX10-12N/NP |
| Max.Temp.(℃) | 1000 | 1200 | ||||||
| Capacity(L) | 2 | 7.2 | 16 | 30 | 2 | 7.2 | 16 | 30 |
| Temp. Accuracy | ±1℃ | |||||||
| Consumption(Kw) | 2.5 | 4 | 8 | 10 | 2.5 | 5 | 6 | 10 |
| Power Supply | 220V±10% 50 HZ | 380V±10% 50HZ | 220V/380V±10% 50/60HZ | 220V±10% 50HZ | 220V/380V±10% 50/60HZ | |||
| operating temperature | RT+50-900℃ | RT+50-1100℃ | ||||||
| Rising Time(Empty) | RT*50~900℃≤50min | RT+50~1000℃≤60min | ||||||
| Material | Internal material:Tradllonal Firebrick Material | |||||||
| External material:Cold-rolled steel with anti-static plastic coating | ||||||||
| Heating element | nickel-chromium wire | |||||||
| Internal Size(W*D*H)mm | 120*200*80 | 200*300*120 | 250*400*160 | 300*500*200 | 120*200*80 | 200*300*120 | 250*400*160 | 300*500*200 |
| External Size(WD*H)mm | 410*540*550 | 500*650*590 | 560*760*640 | 600*780*710 | 410*540*550 | 500*650*590 | 550*690*660 | 600*780*710 |
| Package Size(W*D*H)mm | 560*690*700 | 650*800*740 | 710*910*750 | 700*980*910 | 560*690*700 | 650*800*740 | 650*890*860 | 700*980*910 |
| Gross Weight(Kg) | 50 | 80 | 140 | 85 | 50 | 80 | 80 | 85 |
