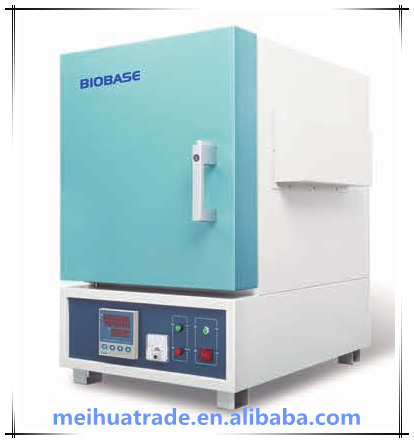

Chamber Electric Furnace-Fundamental type
MF-G series chamber electric furnace, as fundamental product, adopts modern integrated structure. Its hearth is made of traditional fireproofing materials, broad range of application and high cost performance.
MF-T series chamber electric furnace, its hearth is made of new type fireproofing material--ceramic fiber, fast rate of Temp.increase, great thermal insulation property, energy saving, environmental protection, and long service life.
Technical parameters
Model | MF2.5-10G/T | MF 4-10G/T | MF 8-10G/T | MF 12-10G | MF 2.5-12G | MF 5-12G | MF 10-12G |
Capacity(L) | 2 | 7.2 | 16 | 30 | 2 | 7.2 | 30 |
Rated Temp.(℃) | 1000 | 1200 | |||||
Temp.Control | PLC Control system | ||||||
Temp.Precision(℃) | ±1 | ||||||
Heating Rate | Gseries≤60℃/Min, T series≤15℃/Min | ||||||
Heating Element | Aludirome heater strip | ||||||
Power Supply | 220V, 50/60 Hz | 380V, 50/60 Hz | 220V, 50/60 Hz | 220V,50/60Hz 380V,50/60 Hz | 380V, 50/60 Hz | ||
Consumption | 2.5KW | 4 KW | 8 KW | 12 KW | 2.5 KW | 5 KW | 10 KW |
Internal Size (W*D*H)mm | 200*120 *80 | 300*200 *120 | 400*250 *160 | 500*300 *200 | 200*120 *80 | 300*200 *120 | 400*250 *160 |
External Size (W*D*H)mm | 590*400 *620 | 650*520 *670 | 810*570 *760 | 930*700 *860 | 480*400 *570 | 590*520 *620 | 730*570 *720 |
Package size (W*D*H)mm | 800*520 *820 | 870*640 *870 | 1010*1080 *860 | 1000*810 *1050 | 720*470 *800 | 860*630 *860 | 950*780 *920 |
Gross Weight(Kg) | 80 | 102 | 400 | 220 | 75 | 90 | 140 |
BIOBASE is the only company who has passed NSF40 & EN12469 Certification in China.
Our products include Biosafety Cabinet (Class I/II/III), Laminar Flow Cabinet, Fume Hood, Medical Refrigerator, Freezer, Autoclave, Incubator, Drying Oven, Centrifuge and so on.
Packaging and Shipping
Packaging:
1. wooden packing as export for freezer dryer
2. Base on your requests
Shipping:
Usually we ship the goods by one of three methods. you can chose the most appropriate one according to your timeline and budge. Shipping by your own shipping agent is acceptable.
ISO9001, ISO14001, ISO13485, CE.
1 year Warranty
