BIOBASE China autoclave runyes/autoclave dental precio
Features: Superb chamber machining and welding process
The acid-proof stainless steel chamber and jacket are automatically
robot-welded to guarantee long time and trouble-free operation.
Superb chamber machining and welding process
The acid-proof stainless steel chamber and jacket are automatically robot-welded to guarantee long time and trouble-free operation.
Nice chamber surface
Surface smoothness, Ra≤0.5; No welding part or bolt in the chamber which effectively protect the items to be
sterilized. Steam baffle plates are surrounded by silicon rubber protecting the chamber surface.
Reliable and durable chamber
Chamber is designed according to professional analytical method. High-emulation software ANSYS is used for chamber simulation. Design service life: 10 years (or 20000 times sterilization)
Reasonable sealing structure
Compact designed sealing groove, durable circular hollow silicon gasket, sealed by compressed air.
Hanged door automatically
The door is driven by a motor automatically, stable and easy operation. Door concave-convex tooth structure ensures its safety and durability.
Precise pressure detecting and control
Intelligent pressure transmitters,Wika(Germany),ensure steam pressure detecting
and control both in Chamber and jacket.
Unique vacuum noise-reduction system
LNS low-noise and water-saving vacuum system, effective reduced the noise during running.
Humanized operation system

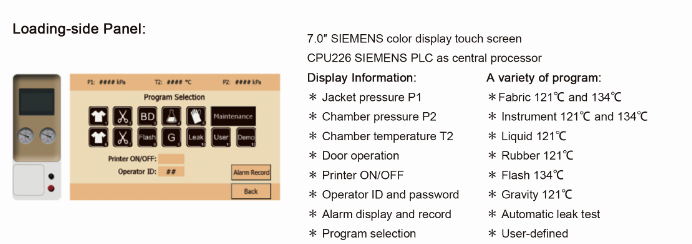

Colorful touch screen on loadingside, 6 indicating lamps on unloading sides, which are concise, vivid and exactly
showing sterilizing running status and alarming information.
Reasonable pipeline layout
All the popes, calves and components are designed and installed in single side, which is more convenience for
repair and maintenance. The sterilizers can be installed against the wall and also, two sterilizers can use the
same maintenance space to save installation space.
Scientific design parameters, wide scope of application
Item | Chamber | Jacket |
Design pressure Mpa | -0.1/0.3 | 0.3 |
Design temperature℃ | 144 | 144 |
Working pressure Mpa | 0.25 | 0.25 |
Max working temperature℃ | 139 | 139 |
Safety valve open pressure | 0.28 | 0.28 |
