Cheap!Biobase SPP BTN Series Standard Peristaltic Pump for Lab
Click on the image to view the original image
Product： views：17Cheap!Biobase SPP BTN Series Standard Peristaltic Pump for Lab
Branch： BIOBASE
Unit Price： Negotiated
Min.Order：
Supply：
Delivery： Shipment within days since the date of payment
Valid until： Long Term
Updated on： 2019-12-03 18:42
  Negotiated
Product Details
Overview
Quick Details
Place of Origin:
Shandong, China
Brand Name:
BIOBASE
Model Number:
SPP-BTN series
Structure:
Peristaltic Pump
Usage:
Water
Application:
Peristaltic Pump
Power:
Electric
Fuel:
/
Pressure:
Low Pressure
Standard or Nonstandard:
Standard
Theory:
Peristaltic Pump
Speed range:
0.1rpm
Speed resolution:
0.1rpm
Flow rate accuracy:
<±0.5%
Outlet pressure:
0.1Mpa ( 0.86-1.0mm wall thickness tubing)
Motor type:
Stepper motor
Control system:
Nx-EMB
Display:
LED screen
Relative humidity:
<80%
Supply Ability
Supply Ability:
200 Unit/Units per Month
Packaging & Delivery
Packaging Details
international standard packing
Port
qingdao shanghai tianjin zhenzhen
Lead Time:
Quantity(Units)1 - 5 >5
Est. Time(days)15To be negotiated

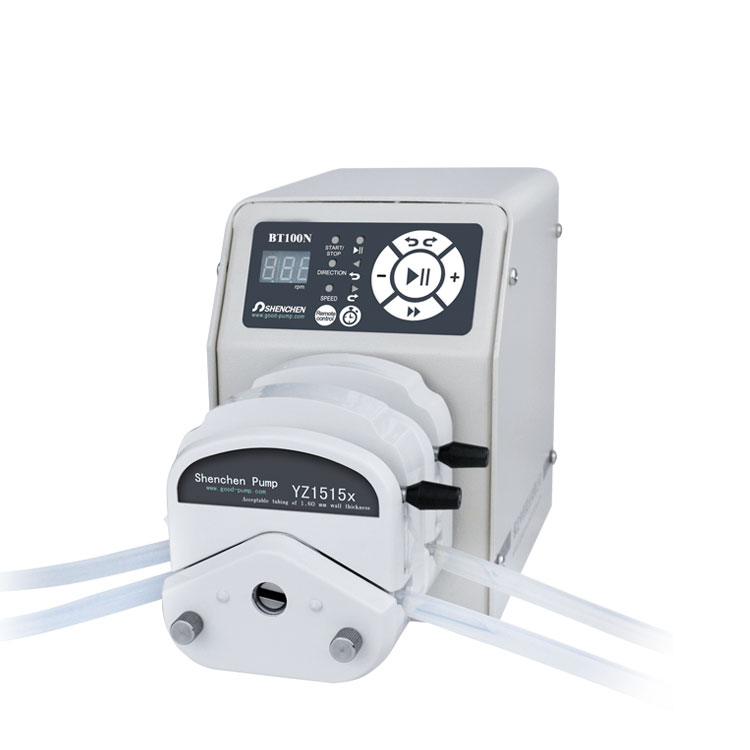

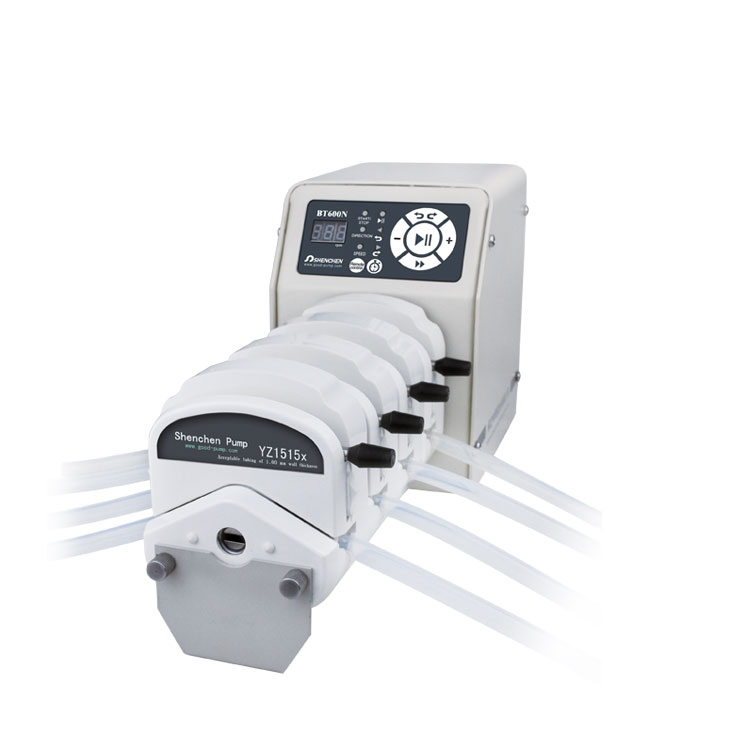

Biobase SPP BTN Series Standard Peristaltic Pump for Lab



Features:

1. 3 inch LED displays the current speed.

2. Mask keypad control the start/stop, speed and direction.

3. Load-shedding memory function.

4. 60s test function, can set the repeat numbers for simple dispensing.

5. The full /empty key help you to quickly discharge the air from tubing and fill the fluid.

6. Indicator display the external control working mode and direction.

7. Support RS232 and RS485

Techncial parameters:

Drive

BT100N

BT300N

BT600N

Flow rate range

0.5-150 rpm

0.5-350 rpm

0.5-600 rpm

Speed range

0.1rpm

Speed resolution

0.1rpm

Flow rate accuracy

<±0.5%

Outlet pressure

0.1Mpa ( 0.86-1.0mm wall thickness tubing)

0.1-0.27Mpa ( 1.6-2.4mm wall thickness tubing)

Motor type

Stepper motor

Circuit system

Nx-CIR

Control system

Nx-EMB

Control method

Membrane keypad

Display

LED screen

External control speed signal

0-5V,0-10V,4-20mA for option

Start/stop,direction singal

Passive switch signal, such as foot pedal switch

Active switch signal: 5V, 12V and 24V for option

Communication interface

RS232/RS485 support MODBUS protocol (RTU mode)

Ambient temperature

0-40℃

Relative humidity

<80%

IP rate

IP31

Power supply

220V/110V±10%, 50Hz/60Hz

Consumption

<50W

Drive external size

(L×W×H)mm

183×131×194



Product Composition and Flow Rate Range

Standard Peristaltic Pump

Pump Head&Flow Rates(ml/min)

YZ1515x

YZ2515x

MC1~MC12(10)

MC1~MC12(6)

SN25

SN15-14

SN15-16

Model



Drive&Speed  Tubing

13#,14#,19#,16#

25#,17#,18#

15#,24#

ID:0.13~3.17mm

Wall Thickness:0.8~1mm

24#

14#

16#

SPP-BT100N

BT100N

0.5-150rpm

0.035~570

0.85~435

0.00034~32

(suggest

working

rotating speed less

than 150rpm)

0.0004~45

(suggest

working

rotating

speed less

than 150rpm)

1.25~375

0.12~36

0.44~132

SPP-BT300N

BT300N

0.5-350rpm

0.035~1330

0.85~1035

1.25~875

0.12~84

0.44~308

SPP-BT600N

BT600N

0.5-600rpm

0.035~2280

0.85~1740

1.25~1500

0.12~144

0.44~528
