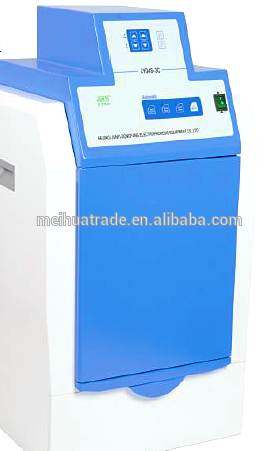

BIOBASE China Documentation Gel Document Imaging System with Cheap Price
Gel Document Imaging System is used for gel band observation and analysis after electrophoresis run by using software technology and the band picture can be zoomed in or zoomed out according to user"s requirements.
Features of BIOBASE China Documentation Gel Document Imaging System with Cheap Price
1. CCD with lower lux and high-resolution.
2. Six time zoom lens and simple to enlarge and shrink gel photos.
3. The gel can be placed in the center position by the indicator.
4. Intelligent control box:
*The zoon, focus, aperture, UV light and white light can be controlled through panel key and computer.
*The UV light can shut down when the door is opened and reactivate when the door is shut
*The UV light protection system can shut down the lights with 15 minute delay automatically.
*Drawer-style gel platform.
5. A multi-layer gel-filter effectively filters background noise
Specifications of BIOBASE China Documentation Gel Document Imaging System with Cheap Price
Effective pixels | 1280*1024 |
Pixel density | 10 bit |
Pixel Size | 5.4*5.4μm |
Resolution | 1.4 megapixels |
S/N Ratio | 56db |
Sensitivity | Detect the double chain DNA of EB staining below 20pg |
Camera | Low illumination and high resolution digital CCD |
Zoom lens | F=1:1.2,2/3 inch 6 times zoom lens |
Filter | 590nm |
UV light transmission area(W*L) | 250*200mm |
Visible light transmittance area(W*L) | 250*210mm |
Transmission UV wavelength | 302nm |
Reflectance UV wavelength | 254,365mm |
Transmission UV lamp power | 8W |
Reflectance UV lamp power | 11W |
Output | RS232 interface |
Power supply | AC220V±10%, 50/60Hz; 110V±10%, 60Hz |
External Size(L*W*H) | 470*405*820mm |
Package Size(L*W*H) | 750*700*1550mm |
G.W | 37Kg |
