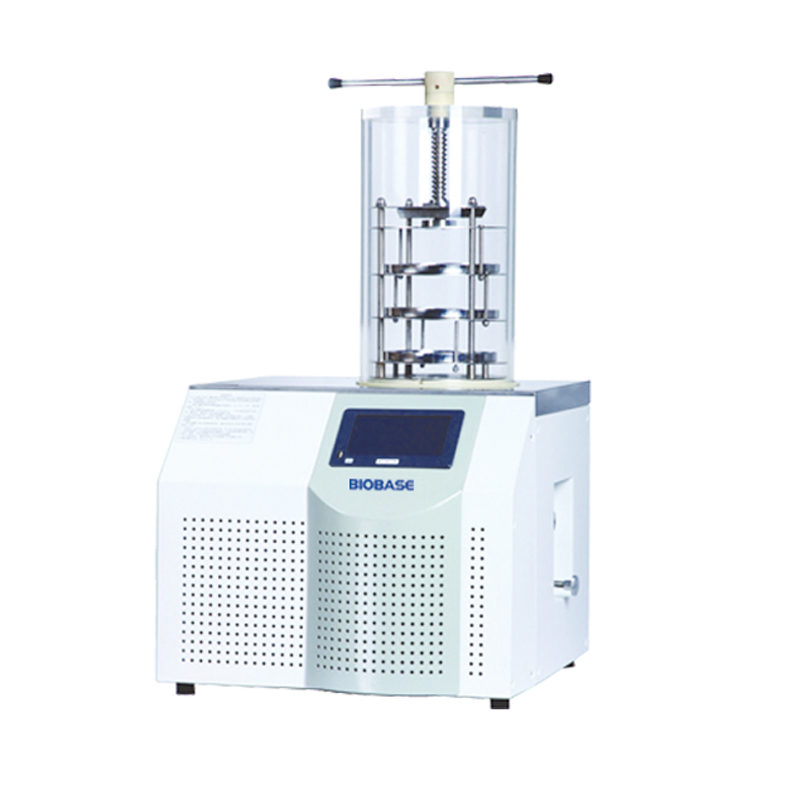

BIOBASE China Table Top Vacuum Freeze Dryer BK-FD10S
Introduction of Table Top Vacuum Freeze Dryer BK-FD10S:
The tabletop type and vertical type freeze dryer is suitable for freeze drying test of laboratory biomedical samples.
Widely used drugs, biological products, chemical and food industries. On the heat-sensitive substances such as antibiotics, vaccines, blood products, hormones and other biological tissue enzymes, freeze-drying technology is applied.
Features of Table Top Vacuum Freeze Dryer BK-FD10S:
1. The 7 inch LCD display panel.
2. Cascade refrigeration technology.
3. With historical data inquiry function.
4. Drying cabinet is transparent which is visual and safe.
5. Large capacity Ice condenser trap and without coil inside.
6. The machine is equipped with USB interface on control panel.
7. Ice condenser trap and operation panel are made by stainless steel.
8. The pre-freeze shelf can be used as guide barrel to speed up the drying rate.
Technical Parameters of Table Top Vacuum Freeze Dryer BK-FD10S:
Model | BK-FD10S | BK-FD10T | BK-FD10P | BK-FD10PT | |||

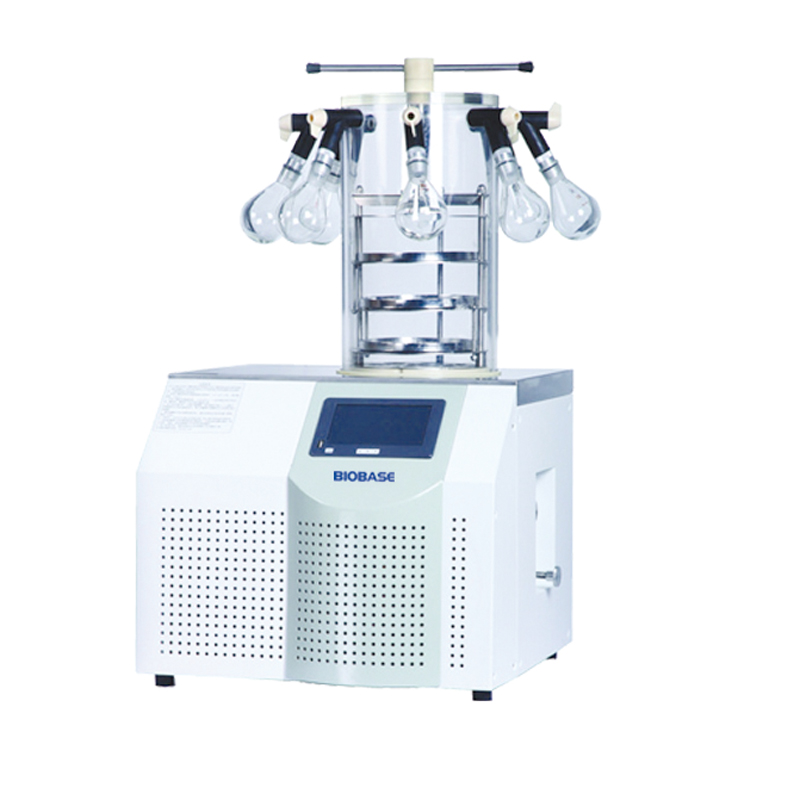

Type | Standard chamber | Stoppering chamber | Standard chamber with 8 port manifold | Standard stoppering with 8 port manifold | |||
Final Condenser Temp (℃) | ≤-56 | ≤-56 | ≤-56 | ≤-56 | |||
Vacuum Degree (Pa) | <10 | <10 | <10 | <10 | |||
Freeze Drying Area (m2) | 0.12 | 0.09 | 0.12 | 0.09 | |||
Ice Condenser Capacity (Kg/24h) | 3 | 3 | 3 | 3 | |||
Shelves | 4 | 3 | 4 | 3 | |||
Material Loading Capacity/Shelf (ml) | 300 | 300 | 300 | 300 | |||
Material Loading Capacity (ml) | 1200 | 900 | 1200 | 900 | |||
Freeze Drying Time (H) | 24 | 24 | 24 | 24 | |||
Manifold | / | / | 8 pieces | 8 pieces | |||
USB Interface | Yes | Yes | Yes | Yes | |||
Drying Chamber (Standard) | Transparent acrylic | ||||||
Vacuum Pump (Standard) | Model: 2XZ-2, Speed: 2L/s (China-Made) | ||||||
Control System | Microprocessor, touch screen | ||||||
Power Supply | AC220V±10%,50/60Hz | ||||||
External Size (W*D*H) | 580*625*530/960mm | ||||||
Package Size | Main Body | 670*660*610mm | |||||
Drying Chamber | 350*350*570mm | ||||||
Vacuum Pump | 570*370*190mm | ||||||
Gross Weight | 105kg | 110kg | 110kg | 110kg | |||
Note | Shelf(plate) heating and cold trap(ice condenser) defrosting function are optional; The vacuum pump, standard drying chamber and all other accessories,like valve, flask etc. are standard accessories; The vacuum pump is independently packed in a separate package. | ||||||
