Rotary Evaporator
Features:
1. Intelligent temperature control and digital temperature display.
2. Stepless speed controller.
3. Teflon Sealing and host automatically
Model | RE-201D | RE-301 | RE-501 | RE-1002 | RE-2002 | RE-5003 | |
Rotary Bottle | 1L 24# (standard mouth) | 3 L (flange Φ50) | 5L (flange Φ50) | 10 L (flange Φ95) | 20L (flange Φ95) | 50L (flange Φ125) | |
Collecting Bottle | 1L 24# (standard mouth) | 2 L 35# (ball mill mouth) | 3L35# (ball mill mouth) | 5L (flange Φ50) | 10L (flange Φ60) | 20L (flange Φ60) | |
Condenser | Vertical φ85*460mm, 29#(standard size) | Vertical φ100 *510mm, | Vertical φ100 *590mm, | Vertical three backflow, φ120 *640mm (main), φ135 *470mm (SUB) | Vertical three backflow, φ130 *680mm (main), φ160 *530mm (SUB) | Vertical three backflow, φ160 *840mm (main), φ160 *530mm (SUB) | |
Charging Valve | 19#(standard size) | 34#(standard size) | 40# (standard size) | ||||
Rotary Speed | 0-120rpm | 0-110 rpm | |||||
Vacuum | -0.098 Mpa | ||||||
Temperature control range | 0-400℃ | ||||||
Temperature control accuracy | ±1℃ | ||||||
Stroke height | 120mm | 180mm | |||||
Rotary Power | 30W | 40W | 40W | 120W | 180W | ||
Heating power | 1.5KW | 2KW | 3KW | 5KW | 8KW | ||
Shelf Material | Stainless steel | Coating anticorrosive | |||||
Chamber Material | SS250 *140mm | SS255 *170mm | SS280 *170mm | SS550 *320mm | SS450 *250mm | SS350 *220mm | |
Plate size | 280 *330 mm | 350*330 mm | 534 *504 mm | 474 *474 mm | 550 *320 mm | ||
Voltage/ Frequency | 220,110V/50Hz | 380V/50Hz | |||||
Externalsize | 700*440 *885 mm | 660*330 *970 mm | 700*335 *1009 mm | 970*480 *1950 mm | 1170*540 *2200 mm | 1520*620 *2470 mm | |
Packingsize | 590*460 *460 mm | 1000*460 *450mm | 1040*620 *410mm | 1350*350 *400 mm 1280*570 *660 mm
| 1370*700 *680 mm 700*680 *740 mm
| 1450*390 *440 mm 1150*840 *660 mm 790*730 *790 mm
| |
Packing Weight | 21 Kg | 38 Kg | 38 Kg | 100 Kg | 123 Kg | 170 Kg | |
| Standard Accessory | 1L Rotary bottle*1, 1L Collecting bottle*1, | 3L Rotary bottle*1, 2L Collecting bottle*1, | 5L Rotary bottle*1, 3L Collecting bottle*1, | 10Lrotary bottle*1, 5Lcollecting bottle *1 | 20Lrotary bottle*1, 10Lcollecting bottle *1 | 50Lrotary bottle*1, 20Lcollecting bottle *1 |
| Optional Accessory | Transparent bath cover, Explosionproof transducer | Explosion-proof transducer, Explosion-proof motor EX180W | Explosion-proof transducer, Double collection bottle, Auto-lifting, Explosion-proof motor EX120W | |||
Company Information
BIOBASE group, founded in 1999 and been through high and stable development for 15 years, who is now with revenues of one hundred million, 1200 employees in China and abroad offices, 22.4 acres land industry parks and 20000 square meters production base.
The products we manufacture extends to most of the laboratory items and scientific analytical equipments. Our mission is to enable our customers to make the world healthier, cleaner and safer.
BIOBASE group invests in science and technology research, aim to keep impoving products performance and quality as well as develop new products to meet customers wide requirement.
We satisfy our customers by offering comprehensive support, purchase convenience and we are ready to serves more and more BIOBASE users.
BIOBASE group, serving global distributors and its loyal end users, is becoming one of the most important scientific services supplier.

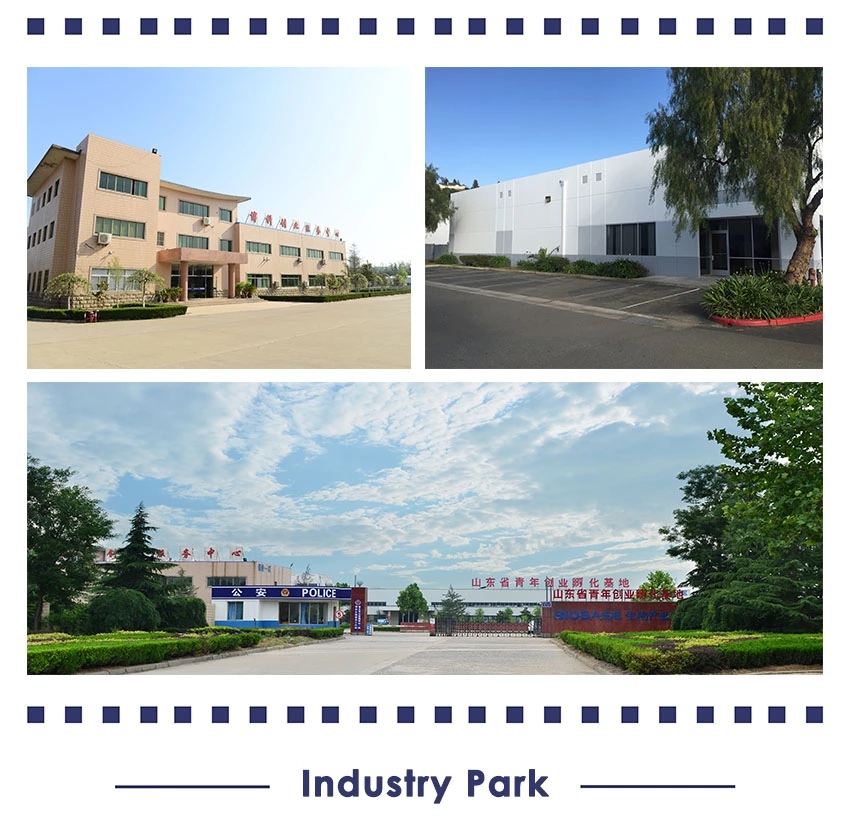

company photos
