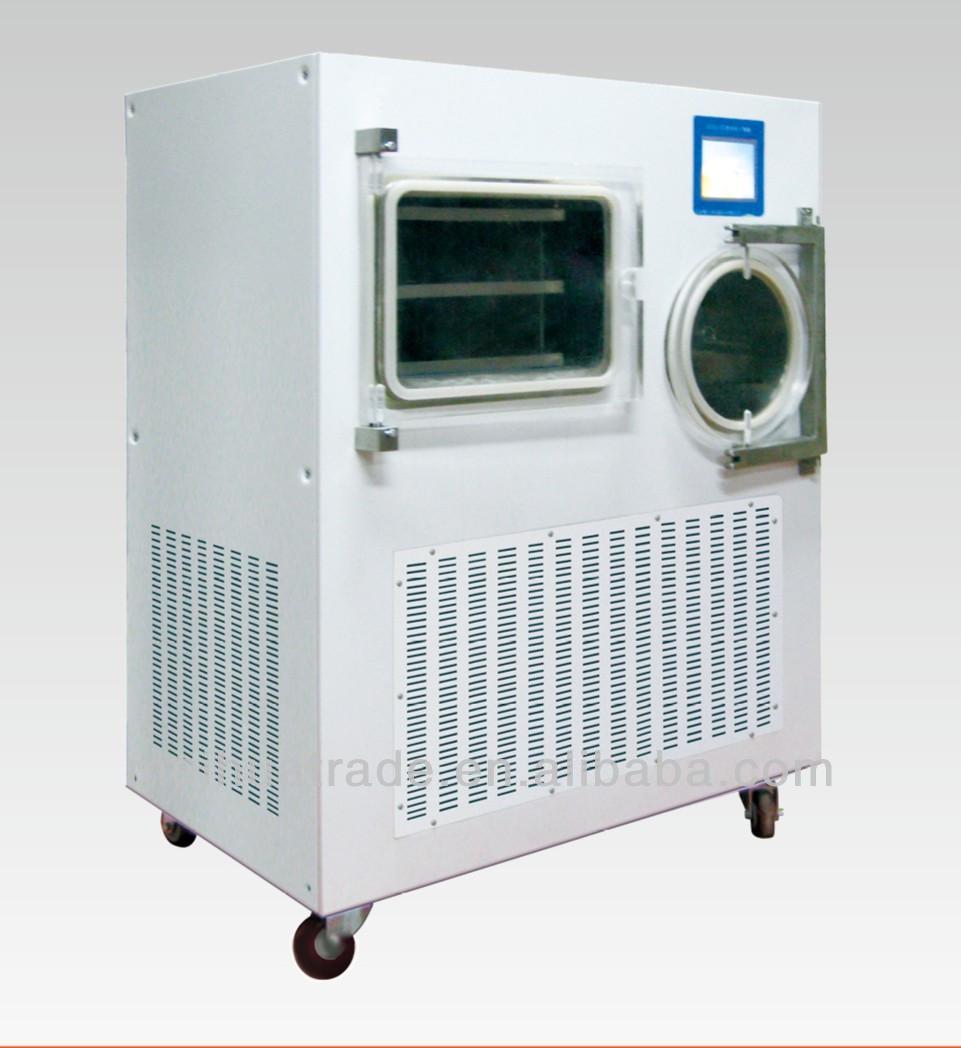

BIOBASE China Square Cabinet Type Freeze Dryer BK-FD20S for Laboratory,Freeze Drying Machine
Features of Freeze Dryer BK-FD20S :
1. Pre-freezing and drying are in same place.
2. The machine is cascade refrigeration technology.
3. Silicon oil is intermediate medium in the shelves for heating to ensure drying material uniformity.
4. The shelf temperature is adjustable and easy to control.
5. The square shelf is easy to operate and clean.
6. 7 inch LCD display and touch screen control system, it adopt PID intelligent control system.
7. With historical data inquiry function, can store history data for one month.
8. The machine is equipped with USB interface on control panel. Can copy the data and history data directly without additional software.
9. Ice condenser and operation panel are made by stainless steel, corrosion-resistant and easy to clean.
10. The cabinet door is with high transparent colorless organic glass, the test process can be easily observed.
Technical Parameters of Freeze Dryer BK-FD20S :
Model | BK-FD20S | BK-FD30T | BK-FD50S | BK-FD50T | BK-FD100S | BK-FD100T | |||
Type | Standard | Stoppering | Standard | Stoppering | Standard | Stoppering | |||
Shelf Temp (℃) | -50 ~ +70 | -50 ~ +70 | -50 ~ +70 | -50 ~ +70 | -50 ~ +70 | -50 ~ +70 | |||
Final Condenser Temp (℃) | ≤-80 | ≤-80 | ≤-80 | ≤-80 | ≤-80 | ≤-80 | |||
Vacuum Degree (Pa) | <10 | <10 | <10 | <10 | <10 | <10 | |||
Freeze Drying Area (m2) | 0.24 | 0.3 | 0.5 | 1 | |||||
Condenser Capacity (Kg/24h) | 6.5 | 10 | 15 | ||||||
Shelf Size (L*W*H) mm | 300*400*15 | 295*335*15 | 360*476*20 | 360*480*15 | 600*480*15 | ||||
Shelves | 2 | 3 | 4 | 4 | 6 | 4 | |||
Distance Between Shelves(mm) | 80 | 70 | 95 | 80 | 80 | ||||
Liquid Material Loading Capacity(L) | 4.5 | 4 | 10 | 8 | 15 | ||||
Temperature Uniformity(℃) | ±1 | ±1 | ±1 | ±1 | ±1 | ±1 | |||
Defrost Function | Yes | Yes | Yes | Yes | Yes | Yes | |||
USB Interface | Yes | Yes | Yes | Yes | Yes | Yes | |||
Control System | Microprocessor, touch screen | Microprocessor, touch screen | Microprocessor, touch screen | ||||||
Qty.of Penicillin Bottle( Φ22mm) | 760 | 805 | 1408 | 1056 | 2016 | 2016 | |||
Qty.of Penicillin Bottle( Φ16mm) | 940 | 1550 | 2728 | 2046 | 3960 | 3960 | |||
Qty.of Penicillin Bottle(Φ12mm) | 2120 | 2800 | 4920 | 3690 | 7200 | 7200 | |||
Power Supply | AC220V±10%, 50/60Hz | AC220V±10%, 50/60Hz | AC220V±10%, 50/60Hz; AC380V, 50/60Hz
| AC220V±10%, 50/60Hz; AC380V, 50/60Hz
|
AC380V, 50/60Hz
| AC380V, 50/60Hz | |||
External Size (W*D*H) mm | 1100*750*1200 | 1200*850 *1430 | 1220*850 *1500 | 1430*850 *1500 | 1450*850 *1550 | ||||
Package Size (mm) | Main Body | 1300*880 *1500 | 1300*880 *1500 | 1400*1050 *1650 | 1450*1050 *1750 | 1700*1100 *1800 | 1700*1100 *1800 | ||
Vacuum Pump | 600*210 *410 | 600*210 *410 | 760*290 *470 | 760*290 *470 | 740*330 *520 | 740*330 *520 | |||
Gross Weight | 350kg | 400kg | 550kg | 750kg | 950kg | 1000kg | |||
Note | Vacuum pump is standard accessory The vacuum pump is independently packed in a separate package. | ||||||||
